MG R5T-CT Instruction Manual

INSTRUCTION MANUAL
CT INPUT MODULE
(screw terminal block; true RMS sensing)
BEFORE USE ....
Thank you for choosing us. Before use, please check con-
tents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact our sales office or representatives.
■ PACKAGE INCLUDES:
CT input module .................................................................(1)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■ HOT INSERTION/REMOVAL OF MODULES
• Removing or replacing modules does not affect other mod-
ules on the same backplane. It is possible to replace them
without removing the power supply. However, replacing
multiple modules at once may greatly change line voltage
levels. We recommend that you replace them one by one.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
INSTALLATION
Use the Installation Base (model: R5-BS).
MG CO., LTD. www.mgco.jp
5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
MODEL
COMPONENT IDENTIFICATION

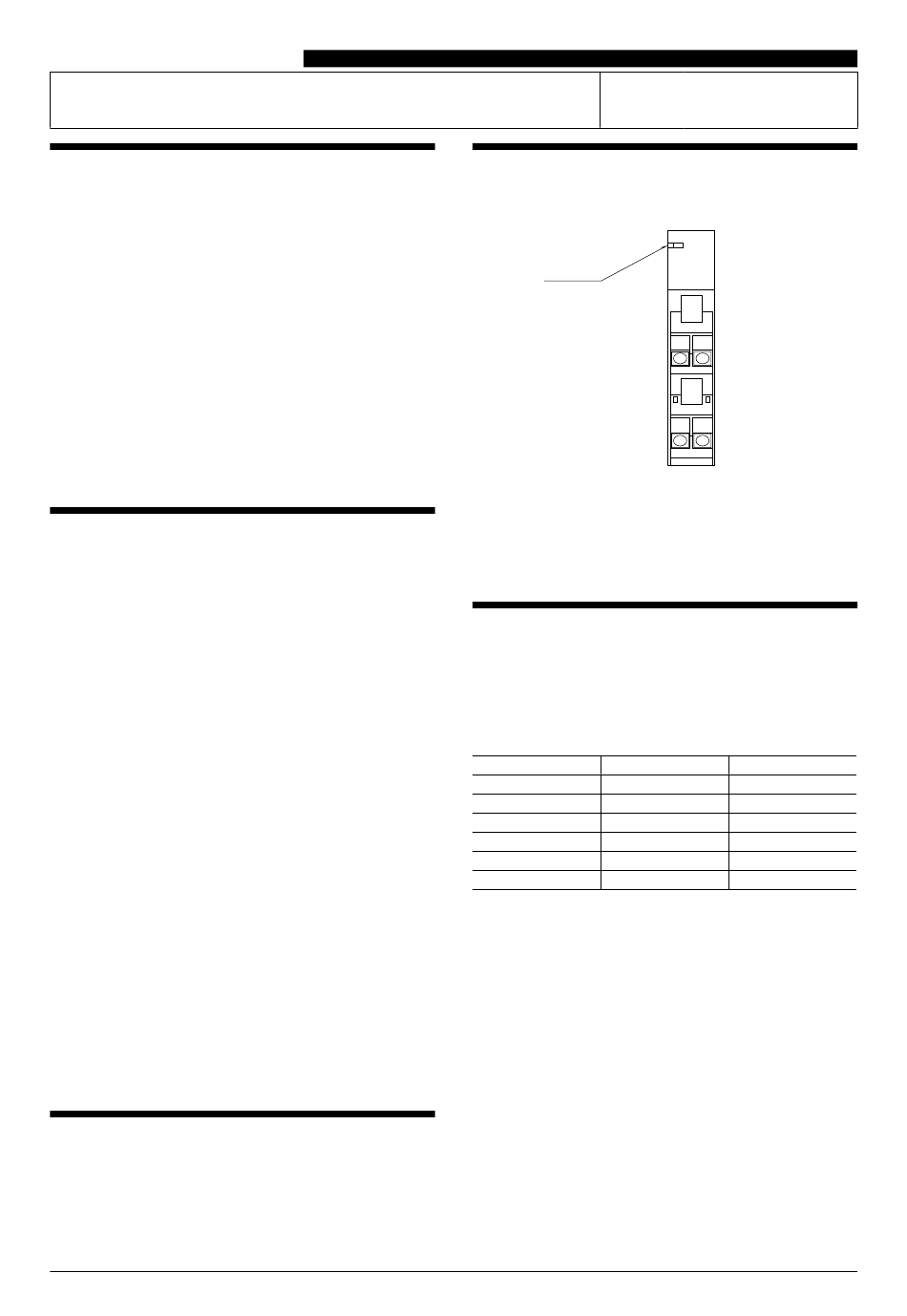

■ FRONT VIEW
RUN LED
■ STATUS INDICATOR LED
RUN indicator: Bi-color (red/green) LED;
Red when the bus A operates normally;
Green when the bus B operates normally;
Amber when both buses operate normally.
PC CONFIGURATOR
With configurator software, settings shown below are avail-
able.
Refer to the software manual of R5CON for detailed opera-
tion.
■ CHANNEL INDIVIDUAL SETTING
PARAMETER AVAILABLE RANGE
Zero Scale -32000 to +32000
Full Scale -32000 to +32000
Bias [Zero Adj.] -320.00 to +320.00
Gain [Span Adj.] -32000 to +32000
Zero Base 0.00 to 5.00 A
Full Base 0.00 to 5.00 A
R5T-CT
RUN
5 6
2 3
DEFAULT SETTING
0
10000
0.00
1.0000
0.00 A
5.00 A
EM-6142 Rev.4 P. 1 / 2
