Q U I C K I N S T A L L G U I D E - E N - F I
Install the IQ Battery storage system
To install the IQ Battery 3T storage system or IQ Battery 10T storage system and the Enphase wall-mount bracket, read and follow all warnings and instruc-
tions in this guide. Safety warnings are listed at the end of this guide. These instructions are not meant to be a complete explanation of how to design and
install an energy storage system. All installations must comply with national and local electrical codes and standards. Only qualified electricians shall install,
troubleshoot, or replace the IQ Battery 3T or IQ Battery 10T.
The IQ Battery storage system includes the IQ Battery(ies) with integrated Enphase IQ Microinverters. The Enphase IQ Gateway Metered measures PV produc-
tion for IQ Microinverters or third-party PV string inverters and home energy consumption. The IQ Battery storage system senses when it is optimal to charge
or discharge the battery so that energy is stored when it is abundant and used when scarce.
NOTE: The latest revision of the Quick Installation Guide is available at https://enphase.com/en-fi/installers/resources/documentation.

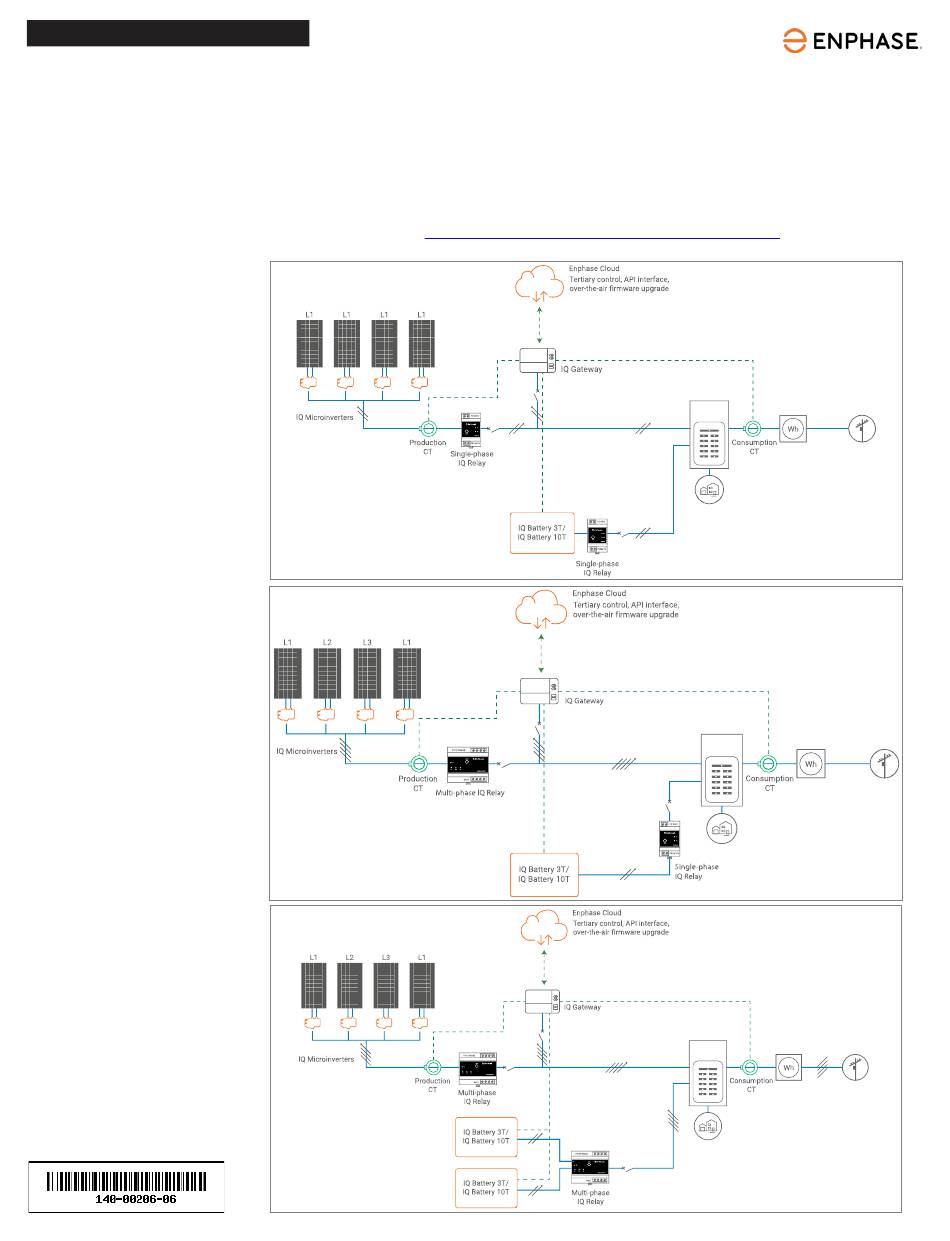

Installation scenarios are shown below.
Single-phase PV with IQ Batteries
connected to one-phase
Three-phase PV with IQ Batteries
connected to one-phase
Three-phase PV with IQ Batteries
connected to two-phase
1
(Models ENCHARGE-3T-1P-INT and ENCHARGE-10T-1P-INT)
Wi-Fi/Cellular
Wi-Fi/Cellular
Wireless
Wireless
Wi-Fi/Cellular
Wireless
Main load
panel
Home loads
Main load
panel
Home loads
Main load
panel
Home loads

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENCHARGE-3T-1P-INT and is the answer not in the manual?

Questions and answers

Related Manuals for enphase ENCHARGE-3T-1P-INT

Summary of Contents for enphase ENCHARGE-3T-1P-INT

  • Page 1 Install the IQ Battery storage system To install the IQ Battery 3T storage system or IQ Battery 10T storage system and the Enphase wall-mount bracket, read and follow all warnings and instruc- tions in this guide. Safety warnings are listed at the end of this guide. These instructions are not meant to be a complete explanation of how to design and install an energy storage system.
  • Page 2 F ) Note that the rated energy capacity of the battery is 3.5 kWh. D ) Make sure you also have the following required items: G ) Install the PV system as directed by the Enphase installation manuals. Mounting location that is structurally suited to bear the weight of the •...

  • Page 3: Installation

    INSTALLATION Plan a location for the IQ Batteries Install the AC disconnect Follow all local codes and standards: The IQ Battery housing is IP55 and can be installed indoors or outdoors. The terminal blocks accept copper conductors of 2.5–10 mm A ) Install an AC isolator that can break the maximum rated current of the branch circuit under load.
  • Page 4 Install the wall mount bracket(s) Follow the instructions below for the type of bracket that you are installing. WARNING: Risk of injury and equipment damage. Attach the wall mount to the wall so that it is inclined no more than 5° vertically. See the following image for reference.
  • Page 5 Tighten the bottom screw to 8 N m. I ) To record the installation of each IQ Battery base unit, scan the serial number label using the Enphase Installer App and your mobile device. Finished...
  • Page 6 C ) Connect each wire in the field wiring compartment to its corresponding DANGER: Risk of electric shock. The system is not ready to be conductor (Line, Neutral, and Ground). Each terminal accepts two energized! Do not close the circuit breaker or turn on the DC switch. 2.5–10 mm conductors (11 mm strip length).
  • Page 7 F ) After assembling the IQ Battery cover, remove the break-out tab from C ) Slide the IQ Battery cover in the indicated direction so that the hook of the conduit cover and assemble with the ribs the cover in the highlighted region goes into the slot provided for it in the snapping in as shown.

  • Page 8: Operation

    Idle. Color transitions from blue to green as the state of starts up again. charge increases. Check Enphase Installer Platform for C ) If you do not see IQ Battery information in the Enphase Installer Platform, charge status. check that the IQ Gateway Metered and the Internet connection are...

  • Page 9: Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS. This guide contains important instructions that you must follow during the installation and maintenance of the IQ Battery(ies). Failing to follow any of these instructions may void the warranty (enphase.com/warranty). In Case of Fire or Other Emergency DANGER: Risk of electric shock.

  • Page 10: Compliance With Eu Directives

    140-00206-06 February 2024 Initial release for Finland. © 2024 Enphase Energy. All rights reserved. Enphase, the e and CC logos, IQ, and certain other marks listed at https://enphase.com/trademark-usage-guidelines are trademarks of Enphase Energy, Inc. in the U.S. and other countries.
