Contacta RF-RX1-865 User Manual

Specifications
Emission modulation 4 GFSK
Antenna Flexible antenna
Headphone output 3.5 mm
Line output 3.5 mm
Battery (Provided 865MHz only) 2 x AA alkaline / rechargeable NiMH battery
Battery life >10 hours (2,100 mAh rechargeable ba�ery)
Dimensions (DxWxH) 88 x 64 x 29 mm/3.46 x 2.52 x 1.14 in(without antenna)
Weight (without battery) 109 ± 5 g/0.24lbs
Specifications are subject to change without prior notice.
RF-RX1 Box Contents:
RF-RX1 865MHz/915MHz, USB-M100, Lanyard, Belt Clip, 2100mAh NiMH
rechargeable batteries (865MHz version only)
Manufacturer's Declaration
This product meets the following standards:
Europe – EU Declaration of Conformity
This device complies with Directive 2014/53/EU issued by the Commission of the European
Federal Communications Commission Interference Statement
Notice: The changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
FCC INFORMATION
The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph:
The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction, may cause harmful interference to radio communication.
However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on , the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
WEEE Statement
Electrical and electronic equipment must be disposed of at the end of their
lifespan separately from household waste.
Please dispose of this equipment at your local waste collection or recycling
center. Please help to protect our environment.
Safety and Electromagnetic Emissions Certificates
Standard Compliance
RoHs compliant
European Directive 2011/65/EU
Certificates (country dependent)
CE NCC
C-TICK TELEC
FCC
Contacta Systems Ltd
Office 13, Dana Estate
Transfesa Road
Paddock Wood
TN12 6UT
(Tel) +44 (0) 1732 223900 (UK)
sales@contacta.co.uk
4
Version: 9080-015-D2-0124
Contacta Inc USA
4025 Tampa Rd,
Suite 1107A,
Oldsmar, Fl 34677
(Tel) +1 616 392 3400 (USA & Canada)
info@contactainc.com
Digital UHF Bodypack Receiver RF-RX1-865/915 - User Manual

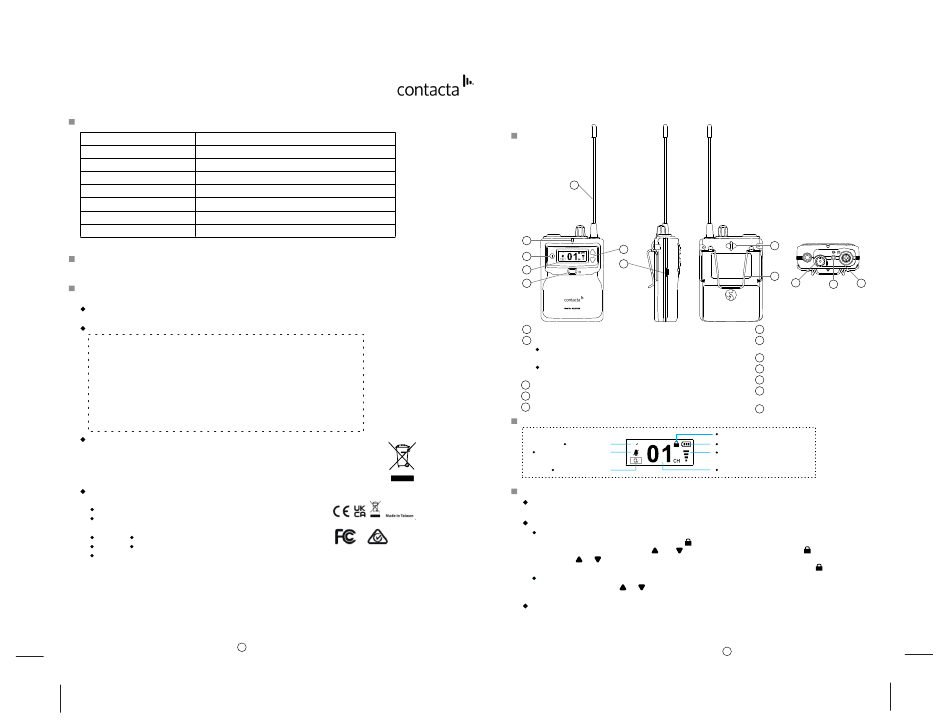

Illustra�on
1
2
6
3
C404
7
SET
4
5
RF-RX1-865/915
1 Flexible antenna
2 Power / Rx LED indicator
Steady blue (red):
Sufficient (Low) power and Tx signal received.
Flashing blue (red):
Sufficient (Low) power but Tx signal not received.
3 Set button
4 Backlit screen
5 Power button
Screen
Custom ID
C404
Talk/Mute status of
compatible transmittter
Sound quality
General opera�on
Power on
Press and hold the power button for 1 second to turn the receiver on.
Adjust channel manually
Channel lock is ac�vated
The screen will automatically be locked ( ) when the receiver is on and idle for 5 seconds. To
unlock the receiver, press both and bu�ons for 1 second un�l symbol
press the or button to select another preferred channel. Once newly selected channel is
determined, press the set button again to confirm the selection and then symbol
Channel lock is de-ac�vated
Simply short press the or bu�on to select another preferred channel. Newly selected channel
will automa�cally be determined a�er the receiver is idle for 1 second.
Check channel frequency
Short press the set button to check the frequency of selected channel. The r eceiver will return to the
to home screen after being idle for 2 seconds.
8
9
10
12
11
6 Up / Down bu�on
7 Charging port
(when NiMH battery applied)
Lanyard hole(feed lanyard through)
8
Belt clip
9
Volume dial
10
3.5 mm audio-out jack (for use with
11
RF-NL1 and RF-IEH )
12 3.5 mm headphone jack (for use with
RF-NL1 and RF-IEH or RF-HP1)
Channel lock
Battery status of receiver
RF signal
Channel number
disappears. Now,
will show up again.
