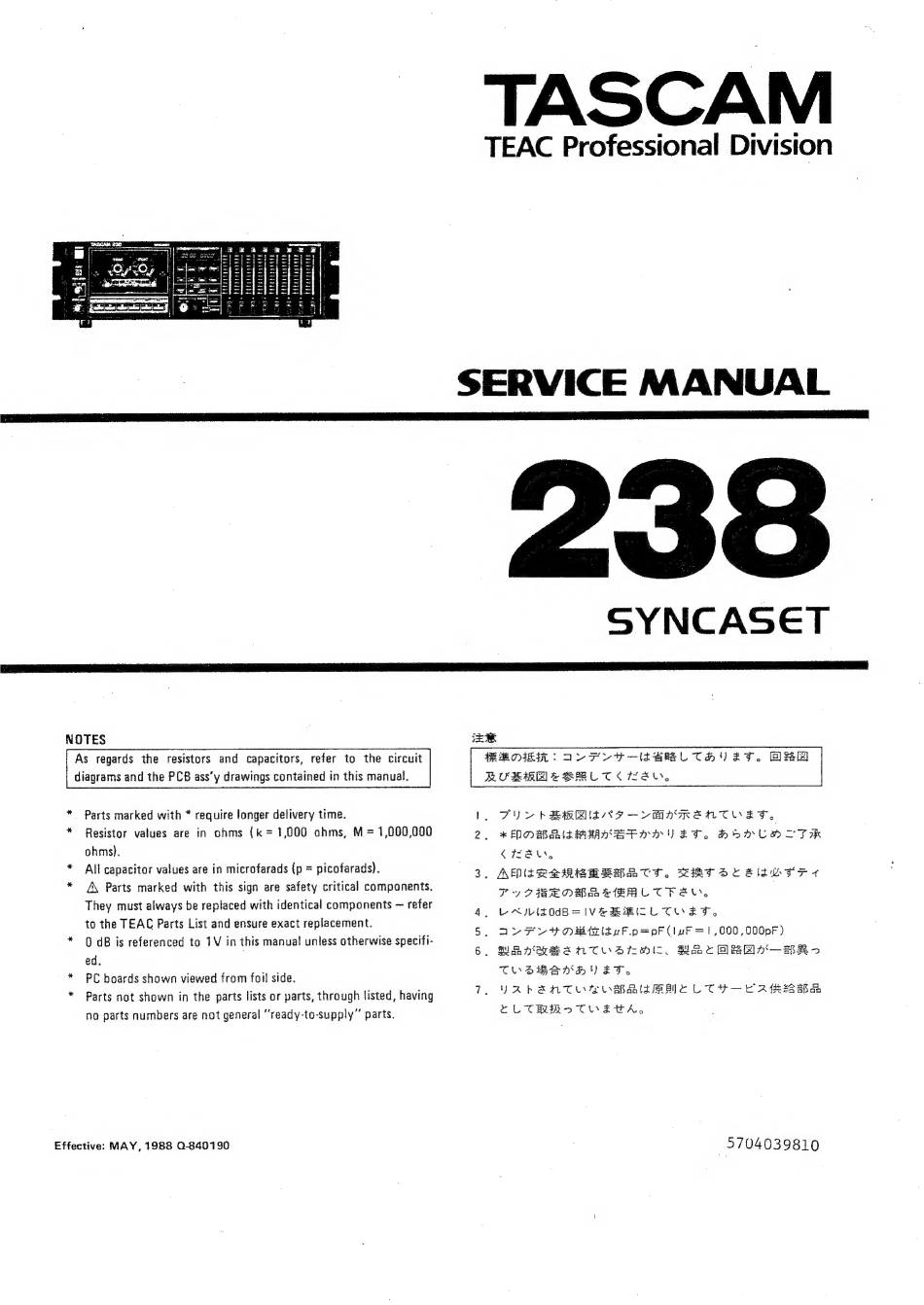

Teac SYNCASET 238 Service Manual

NOTES
As regards the resistors and capacitors, refer to the circuit
diagrams and the PCB ass'y drawings contained in this manual.
*
*
Parts marked with * require longer delivery time.
Resistor values are in ohms (k= 1,000 ohms, M= 1,000,000
ohms).
All capacitor values are in microfarads (p = picofarads).
A\ Parts marked with this sign are safety critical components.
They must always be replaced with identical components — refer
to the TEAC Parts List and ensure exact replacement.
0 dB is referenced to 1V in this manual unless otherwise specifi-
ed.
PC boards shown viewed from foil side.
Parts not shown in the parts lists or parts, through listed, having
no parts numbers are not general "ready-to-supply" parts.
Effective: MAY, 1988 0-840790
TASCAM
TEAC Professional Division
SERVICE MANUAL
238
SYNCASET
ER
REO ALT Pyle CHU ET. ER
RUBiRE SRL Ka.
