NCP4371
Qualcomm Quick Charget
3.0 HVDCP Controller
NCP4371 is a USB secondary side fast−charging controller,
supporting Qualcomm Quick Charge 3.0 (QC 3.0) High Voltage
Dedicated Charging Port (HVDCP) Class A and Class B specification.
NCP4371 allows for selection of the output voltage of an AC−DC USB
adapter based on commands from the Portable Device (PD) being
powered. Selecting a higher charging voltage will reduce the charging
current for a given power level resulting in reduced IR drops and
increased system efficiency. Another advantage of QC3.0 is a decreased
battery charging time and a reduced PD system cost thanks to the
ability to select an optimum charging voltage. This eliminates the need
for costly DC−DC converters within the PD. The USB−bus voltage
can be controlled in discreet steps from 3.6 V up to 20 V. The output
current is limited not to exceed maximum allowable power level.
The NCP4371 resides at the secondary (isolated) side of the adapter.
It includes voltage and current feedback regulation eliminating the
need for a shunt regulator such as TL431.
The NCP4371 provides charging current limits down to
VBUS = 2.2 V protecting the portable device from excessive currents
in case of a soft short−circuit condition.
The NCP4371 integrates a safe−discharge circuitry to quickly and
reliably discharge output capacitors in case the USB cable is
unplugged or connected to a 5 V only USB port.
Features
Supports Qualcomm Quick Charge 3.0 HVDCP Class A/B
Output Voltage Can be Configured in Discreet Steps from
Class A: 3.6 V up to 12 V
Class B: 3.6 V up to 20 V
Compatible with USB Battery Charging Specification Revision 1.2
(USB BC1.2)
Constant Voltage and Constant Current Regulation
Soft Short−Circuit Current Limitation Down to V
Removes a Need for the Secondary Side Shunt Regulator such as
TL431
Output Capacitor Safe−Discharge Circuitry at Cable Unplug
Fast Dynamic Response
Built−in Power Limiting Function
Low Supply Current
Wide Operating Input Voltage Range: 2.2 V to 28 V
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Typical Applications
Fast Charging AC/DC Adapters for Smart Phones, Tablets and Other
Portable Devices
© Semiconductor Components Industries, LLC, 2017
March, 2017 − Rev. 0
DISCHARGE
= 2.2 V
BUS
See detailed ordering, marking and shipping information in the
package dimensions section on page 13 of this data sheet.
1
www.onsemi.com

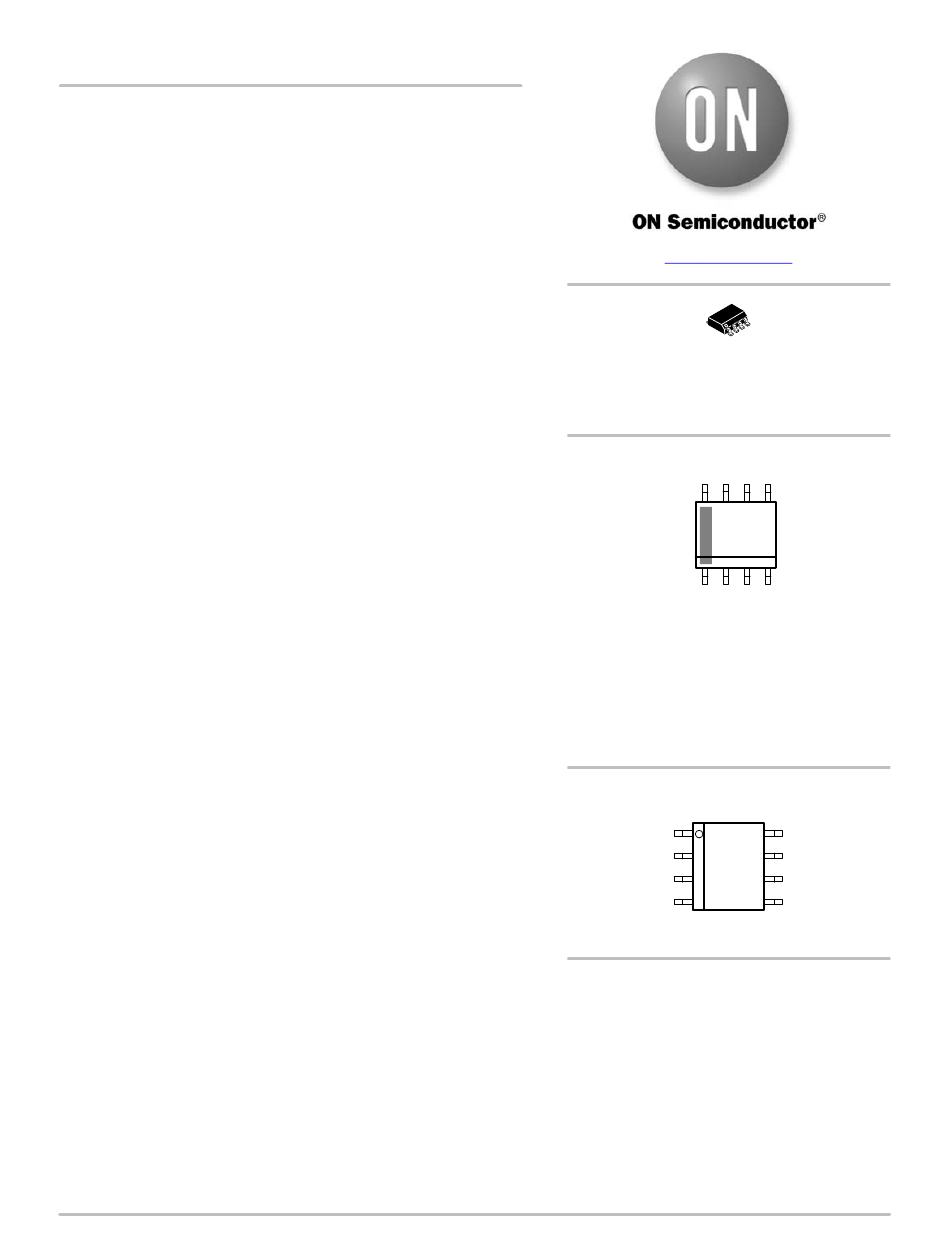

8
1
SOIC−8
D SUFFIX
CASE 751
MARKING DIAGRAM
8
4371XYZW
ALYWG
G
1
4371XYZW = Specific Device Code
(See Device Options Table)
A
= Assembly Location
L
= Wafer Lot
Y
= Year
W
= Work Week
G
= Pb−Free Package
PIN CONNECTIONS
VCC
GND
DRIVE
ISNS
D−
D+
COMP
(Top View)
ORDERING INFORMATION
Publication Order Number:
NCP4371/D

Advertisement

Table of Contents
loading

Summary of Contents for ON Semiconductor NCP4371

  • Page 1 Dedicated Charging Port (HVDCP) Class A and Class B specification. www.onsemi.com NCP4371 allows for selection of the output voltage of an AC−DC USB adapter based on commands from the Portable Device (PD) being powered. Selecting a higher charging voltage will reduce the charging current for a given power level resulting in reduced IR drops and increased system efficiency.
  • Page 2 NCP4371 R_SENSE R_DIS Figure 1. Typical Application Schematic www.onsemi.com...
  • Page 3 NCP4371 DISCHARGE DISCHARGE Power management RESET CC(UVLO) DRIVE DM_DWN Sink only D− ISNS REFV Current REFC Regulation VSNS_UP Sink only COMP REFC Voltage REFV DAT_LKG Regulation VSNS_DWN Figure 2. Simplified Block Diagram Table 1. PIN FUNCTION DESCRIPTION Pin No. Pin Name...
  • Page 4 NCP4371 Table 2. MAXIMUM RATINGS Rating Symbol Value Unit Supply Voltage −0.3 to 28.0 ±100 DISCHARGE pin −0.3 to V DISCHARGE +500/−40 DRIVE pin −0.3 to V DRIVE +100/−90 D+, D−, VSNS, ISNS Input Voltage −0.3 to 5.5 D− VSNS iSNS ±100...
  • Page 5 NCP4371 Table 3. ELECTRICAL CHARACTERISTICS −40°C ≤ TJ ≤ 125°C; V = 5 V; unless otherwise noted. Typical values are at T = +25°C. Parameter Test Conditions Symbol Unit CURRENT CONTROL LOOP OTA Sink Current Capability SINKC HVDCP Output Voltage Selection...
  • Page 6: Typical Characteristics

    NCP4371 TYPICAL CHARACTERISTICS −40 −25 −10 −40 −25 −10 TEMPERATURE (°C) TEMPERATURE (°C) Figure 3. V Minimum Operating Input Figure 4. Quiescent Current, I Voltage, V CC(min) −40 −25 −10 −40 −25 −10 TEMPERATURE (°C) TEMPERATURE (°C) Figure 5. V HVDCP Logic Enable, V Figure 6.
  • Page 7 NCP4371 TYPICAL CHARACTERISTICS 0.40 0.36 0.32 0.28 0.24 0.20 −40 −25 −10 −40 −25 −10 TEMPERATURE (°C) TEMPERATURE (°C) Figure 9. Output Voltage Selection Reference, Figure 10. Data Detect Voltage, V DAT_REF SEL_REF −40 −25 −10 −40 −25 −10 TEMPERATURE (°C) TEMPERATURE (°C)
  • Page 8 NCP4371 TYPICAL CHARACTERISTICS −40 −25 −10 TEMPERATURE (°C) Figure 15. VCC Discharge Current, I DIS(EXT) www.onsemi.com...
  • Page 9: Application Information

    200 mV step. The output voltage is at an internal current sink, which discharges the output its final value within T capacitors to a safe voltage level. If the NCP4371 is set to a V_CONT_CHANGE_SINGLE www.onsemi.com...
  • Page 10 9 V request = 9 V = 12 V 5 V request unplug HVDCP Continuous increment decrement request request + 200 mV − 200 mV max. 12 V/20 V for class A/B min. 3.6 V Figure 17. NCP4371 State Diagram www.onsemi.com...
  • Page 11 Option A and 8 current limit options for Power Option B and The NCP4371 is designed to give a user a high degree of C. Each power limit option corresponds to a particular...
  • Page 12 Class A and 120 W for Class B. The DISCHARGE pin circuit current to prevent a portable device or cable from a damage. The NCP4371 offers an extended region of output has an internal protection for a case the user wires the pin current limiting down to V = 2.2 V.
  • Page 13: Ordering Information

    NCP4371 Table 6. DEVICE OPTIONS QuickCharge Class A/B Power Limit Current Limit (mV) Discharge OPN # NCP4371xyzwDR2G Class A Class B Class A Class Single Dual A&B Power Limit NCP4371AACDR2G NCP4371AAEDR2G NCP4371AADDR2G NCP4371ACCDR2G NCP4371BBEDR2G NCP4371BBCDDR2G NOTE: Device option with 4371XYZ marking are single discharge path version exclusively.
  • Page 14: Package Dimensions

    Generic Marking. inches *For additional information on our Pb−Free strategy and soldering details, please download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D. STYLES ON PAGE 2 Electronic versions are uncontrolled except when accessed directly from the Document Repository.
  • Page 15 SOIC−8 NB CASE 751−07 ISSUE AK DATE 16 FEB 2011 STYLE 1: STYLE 2: STYLE 3: STYLE 4: PIN 1. EMITTER PIN 1. COLLECTOR, DIE, #1 PIN 1. DRAIN, DIE #1 PIN 1. ANODE 2. COLLECTOR 2. COLLECTOR, #1 2. DRAIN, #1 2.
