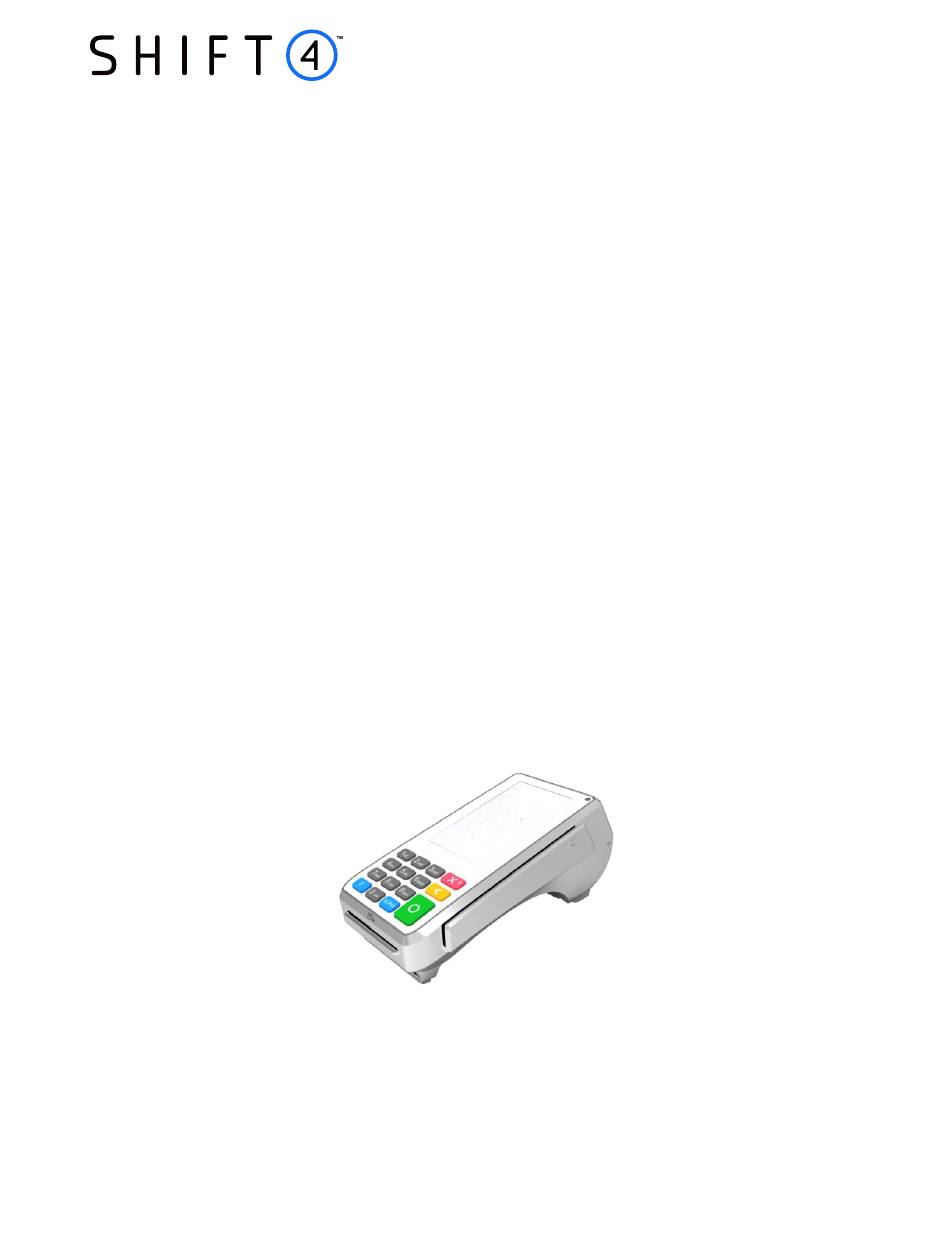

Using PAX External Devices
This document coincides with UTG release 3070 and is intended for vendors and developers using PAX external
devices that support EMV with their POS/PMS systems. Device settings and configurations are discussed in this
document. To use EMV devices with Shift4, a Universal Transaction Gateway
necessary to adjust external devices, such as PIN pads, when configuring the UTG.
PAX Devices Overview
PAX A80 PIN Pad Devices Overview

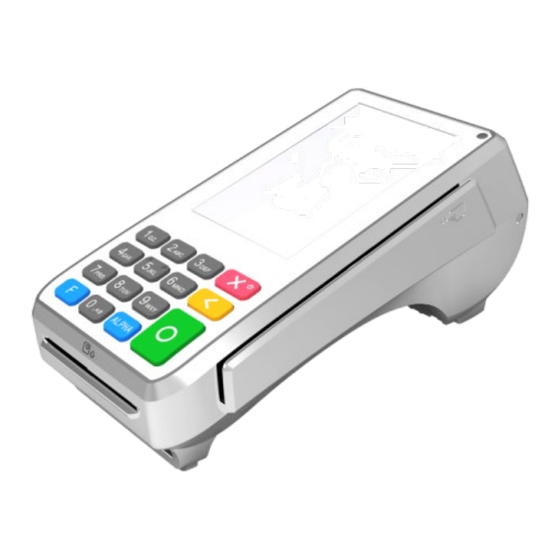

The PAX A80 devices offer keypad and multiple card reader functionalities.
The PAX A80 devices support EMV chip & PIN, EMV chip, and magstripe transactions, as well as contactless NFC
and mobile wallet. These devices also support P2PE and BIN management. The PAX A80 device can be connected
to UTG via Ethernet or WiFi.
During installation and configuration, the keypad special keys function as follows:
•
Use the touchscreen to navigate.
•
Enter: Select highlighted item.
•
Cancel or Clear: Previous screen.
•
Any button enables backlight.
PAX A80
Document v1.2 | UTG v3070+
© 2023 Shift4. All rights reserved.
External Use NDA
Page 1 of 18
®
(UTG
®
) is required. It may be
Advertisement
Related Manuals for SHIFT4 PAX A80
Summary of Contents for SHIFT4 PAX A80
- Page 1 The PAX A80 devices offer keypad and multiple card reader functionalities. The PAX A80 devices support EMV chip & PIN, EMV chip, and magstripe transactions, as well as contactless NFC and mobile wallet. These devices also support P2PE and BIN management. The PAX A80 device can be connected to UTG via Ethernet or WiFi.
- Page 2 The SP30 supports EMV chip & PIN, EMV chip, and magstripe transactions, as well as contactless NFC and mobile wallet. It also supports P2PE and BIN management. This device can be connected to UTG via Ethernet. PAX SP30 Document v1.2 | UTG v3070+ © 2023 Shift4. All rights reserved. External Use NDA Page 2 of 18...
- Page 3 The serial number on a PAX device can be located on the device. The serial number will be needed by the Administrator to configure the EMV devices in PAXSTORE. The location may vary with different PAX models. The example below is a PAX A80. Document v1.2 | UTG v3070+ ©...
- Page 4 To verify the correct key injection, complete the following steps: 1. From the home screen, click on the PaxInject application. 2. Select US Injection. Document v1.2 | UTG v3070+ © 2023 Shift4. All rights reserved. External Use NDA Page 4 of 18...
- Page 5 Using PAX External Devices 3. Enter the Password: 729465328 4. Click on Status. Document v1.2 | UTG v3070+ © 2023 Shift4. All rights reserved. External Use NDA Page 5 of 18...
-
Page 6: Rebooting The Device
5. Press 1. US Key Injection. 6. Press 3. Status. Rebooting the Device To reboot the PAX devices, simply power them off and then on. Document v1.2 | UTG v3070+ © 2023 Shift4. All rights reserved. External Use NDA Page 6 of 18... - Page 7 3. Go to Terminal Management and select the appropriate Reseller/Merchant where you want the terminal to reside, and then click on Terminal List. 4. Click Add Terminal to add a new terminal. Document v1.2 | UTG v3070+ © 2023 Shift4. All rights reserved. External Use NDA Page 7 of 18...
- Page 8 This feature is only for server-to-server connections to Lighthouse Transaction Manager. If requests come from an IP address not listed, the following error will be displayed: IP ADDRESS RESTRICTIONS IN EFFECT. Document v1.2 | UTG v3070+ © 2023 Shift4. All rights reserved. External Use NDA Page 8 of 18...
- Page 9 For security, the best selection is the shortest time possible. 5. Click Submit. 6. Copy and save the Auth Token that is displayed. You will need it later. Document v1.2 | UTG v3070+ © 2023 Shift4. All rights reserved. External Use NDA Page 9 of 18...
- Page 10 2. Go to App & Firmware and click Push App. 3. Click Push Templates. 4. Select Shift4 Integration and your device template. (For example, A930 CE.) 5. Select the Shift4 tab in the Push Task configuration view. 6. Go to the Communication tab and verify DHCP is set to Disable, and set or verify the following fields: •...
- Page 11 Using PAX External Devices 9. Go to the MISC tab and set ECR-Terminal Integration Mode to External POS. Document v1.2 | UTG v3070+ © 2023 Shift4. All rights reserved. External Use NDA Page 11 of 18...
- Page 12 Using PAX External Devices 10. Go to the COMMUNICATION tab and set the Communication Type to Ethernet and the Port to 10009. 11. Select the Shift4 tab in the Push Task configuration view. 12. Change the Primary Auth URL to the environment you are processing under: •...
- Page 13 Updating the BroadPOS App Configuration 1. Go to Terminal Management and select your device. 2. Go to App & Firmware and click BroadPOS Shift4 under Operation History. 3. Click RESET. Document v1.2 | UTG v3070+ © 2023 Shift4. All rights reserved.
- Page 14 Using PAX External Devices 4. Click the SHIFT4 tab and edit the information that you want to update, for example the Auth Token. 5. Click NEXT. 6. Verify that the Push Immediately option is set, and then click Activate. Wait until push task is successfully finished.
-
Page 15: Connect Your Device
Using PAX External Devices PAX A80, S300, and SP30 Configuration Add Your Device to the PAXSTORE Follow the steps in the Adding Your Device to the PAXSTORE section. • Connect Your Device • Connect the device via the Ethernet cable in one of the following ways: Connect the device directly to your router's Ethernet port. - Page 16 On the BroadPOS tab, scroll down to Timezone and select the appropriate option. Click Next and Activate. You should see the Push task in progress. 7. Restart the device. (Unplug the power and reconnect.) Document v1.2 | UTG v3070+ © 2023 Shift4. All rights reserved. External Use NDA Page 16 of 18...
- Page 17 Set the Port to your PAX device BroadPOS port (the same as is set in PAXSTORE). • Save your configuration. Now, your UTG should be ready to process transactions through PAX via Direct • TCP/IP. Document v1.2 | UTG v3070+ © 2023 Shift4. All rights reserved. External Use NDA Page 17 of 18...
- Page 18 Note: If the replacement PIN pad is not preset for your location, contact the Shift4 Customer Support team at 888-276-2108, option 1, for further instructions. To replace a dead PIN pad with a replacement PIN pad, complete the following steps: 1.
