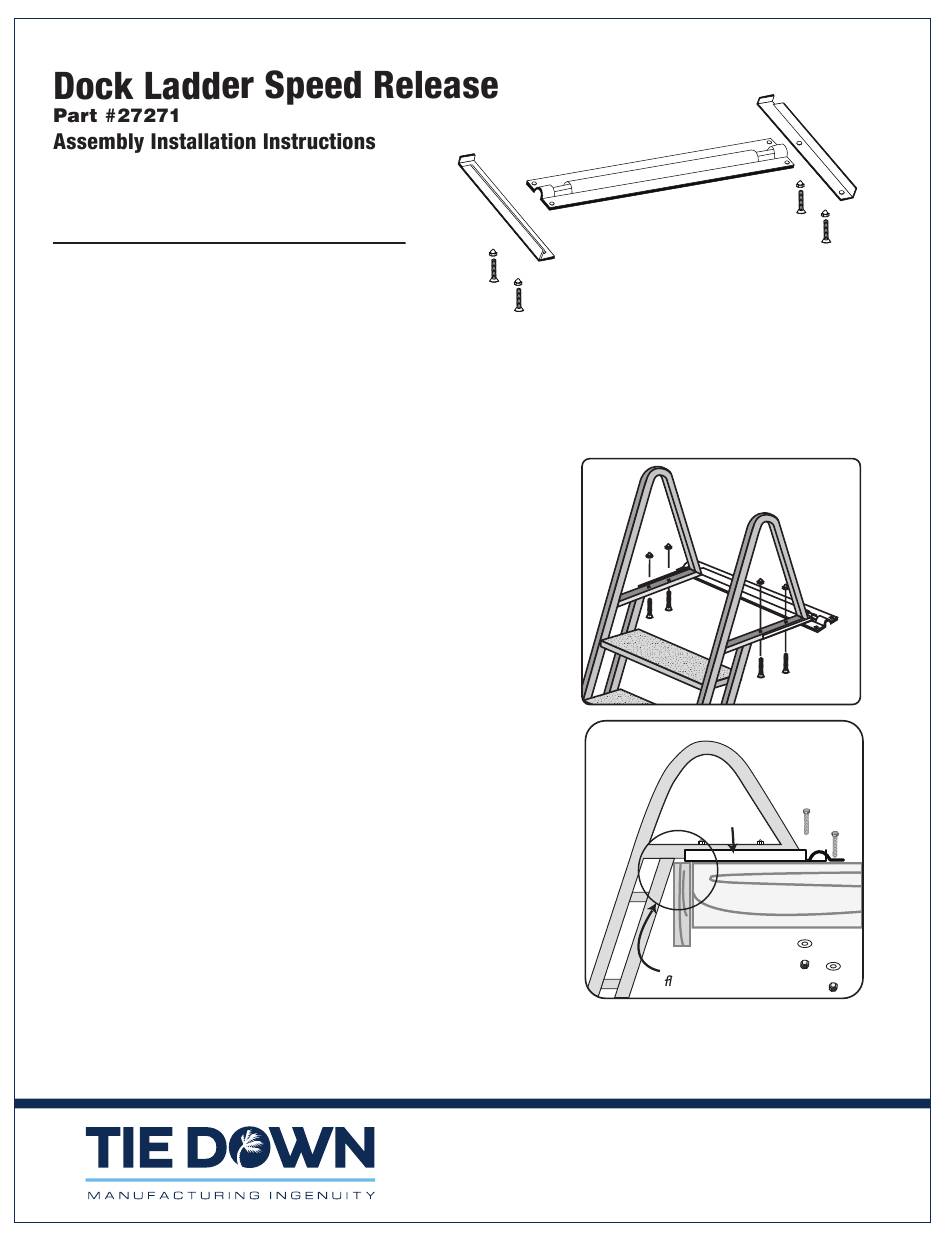

TIE DOWN 27271 Assembly/Installation Instructions

This kit contains the following components:
# Qty. Part # Description
1 1 25506 Speed Release Base
2 1 25507L Speed Release Side Plate Left
3 1 25507R Speed Release Side Plate Right
4 4 10934 1/4" x 1-1/2" Phillips Flat Head Screw
5 4 10619 Acorn Nut
TOOLS REQUIRED
Flathead screwdriver, 7/16" wrench, hand or power drill, and a
1/4" drill bit.
ASSEMBLY INSTRUCTIONS
1. Attach the Speed Release side plates under the bottom of the ladder
braces as shown in the picture, using the 1/4" x 1-1/2" Phillips flat head
screws and acorn nuts. Acorn nuts are used on the top. Make sure that
the side flanges are located to the outside edge of the ladder brace. Do
not tighten at this time. Using the Speed Release base as a guide, make
sure the tabs are centered in the base openings. Now tighten
the acorn nuts.
2. Before attaching the ladder to the dock, check for obstructions under
the dock where the bolt holes will be drilled. Should you have a floating
dock, make sure the ladder will not be damaged in fluctuating water
levels. The ladder should be flush against the top side of the dock with
the Speed Release base attached to the ladder. To mark the holes, use
the base plate as a template. Drill four holes using your 1/4" drill bit.
Attach ladder to dock with the four 1/4" x 4" stove bolts not included,
but supplied with the dock ladder.
IMPORTANT:
LADDER WILL FALL INTO WATER IF NOT BOLTED TO THE DOCK. BE
CAREFUL WHEN USING LADDER TO MARK HOLES. SET LADDER
COMPLETELY ON TOP OF DOCK AFTER USING TO MARK THE HOLES
TO BE DRILLED.
1
2
4 & 5
Ladder should be
Speed Release/Dock Placement
Instructions #15360 (A709 - Rev. 5/16/22)
404-344-0000 • www.tiedown.com
605 Stonehill Drive SW, Atlanta, GA 30336
sales@tiedown.com
3
4 & 5
Release
Base
Side
Plate
Dock
ush to the dock
