Note: legs and hardware are packed and stored in the bottom of the seat, please take
out for assembly.
PART
DRAWING
A
B
C
D
STEP 1:
A
MADE IN VIETNAM
DESCRIPTION
QTY
SEAT
1 PC
BACK
1 PC
FRONT LEG
2 PCS
REAR LEG
2 PCS
Assembly Instructions
ITEM NO: 8505GY-1

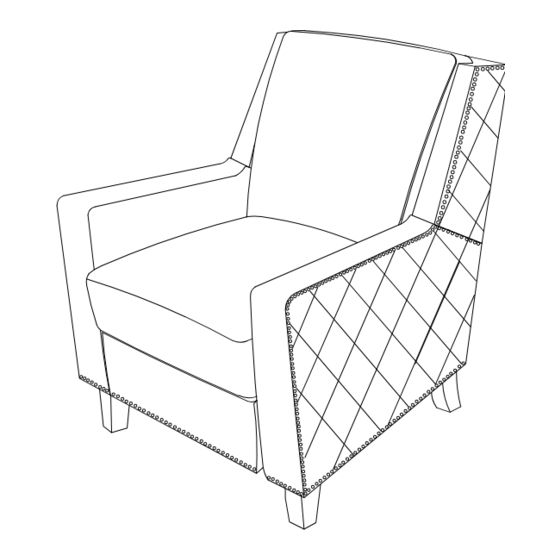

PUSH BACK RECLINING CHAIR
PART
DRAWING
1
2
3
4
DESCRIPTION
BOLT (Ø5/16'' *3")
2 PCS
SPRING WASHER
2 PCS
(Ø5/16")
FLAT WASHER
2 PCS
(Ø5/16")
ALLEN KEY (M4)
C
D
QTY
1 PC
Page: 1/2
Advertisement
Table of Contents
Related Manuals for Homelegance 8505GY-1
Summary of Contents for Homelegance 8505GY-1
- Page 1 Assembly Instructions ITEM NO: 8505GY-1 PUSH BACK RECLINING CHAIR Note: legs and hardware are packed and stored in the bottom of the seat, please take out for assembly. PART PART DRAWING DESCRIPTION DRAWING DESCRIPTION SEAT 1 PC BOLT (Ø5/16'' *3")
- Page 2 STEP 2: STEP 3: STEP 4: COMPLETED CARE INSTRUCTION FOR FABRIC FURNITURE In order to maintain the original appearance of your funiture, please follow below care procedures. ° Avoid exposing furniture directly to sunlight or heating and air conditioning outlets. Sunlight and / or exposure to heating and air conditioning outlets will fade/damage fabric.
