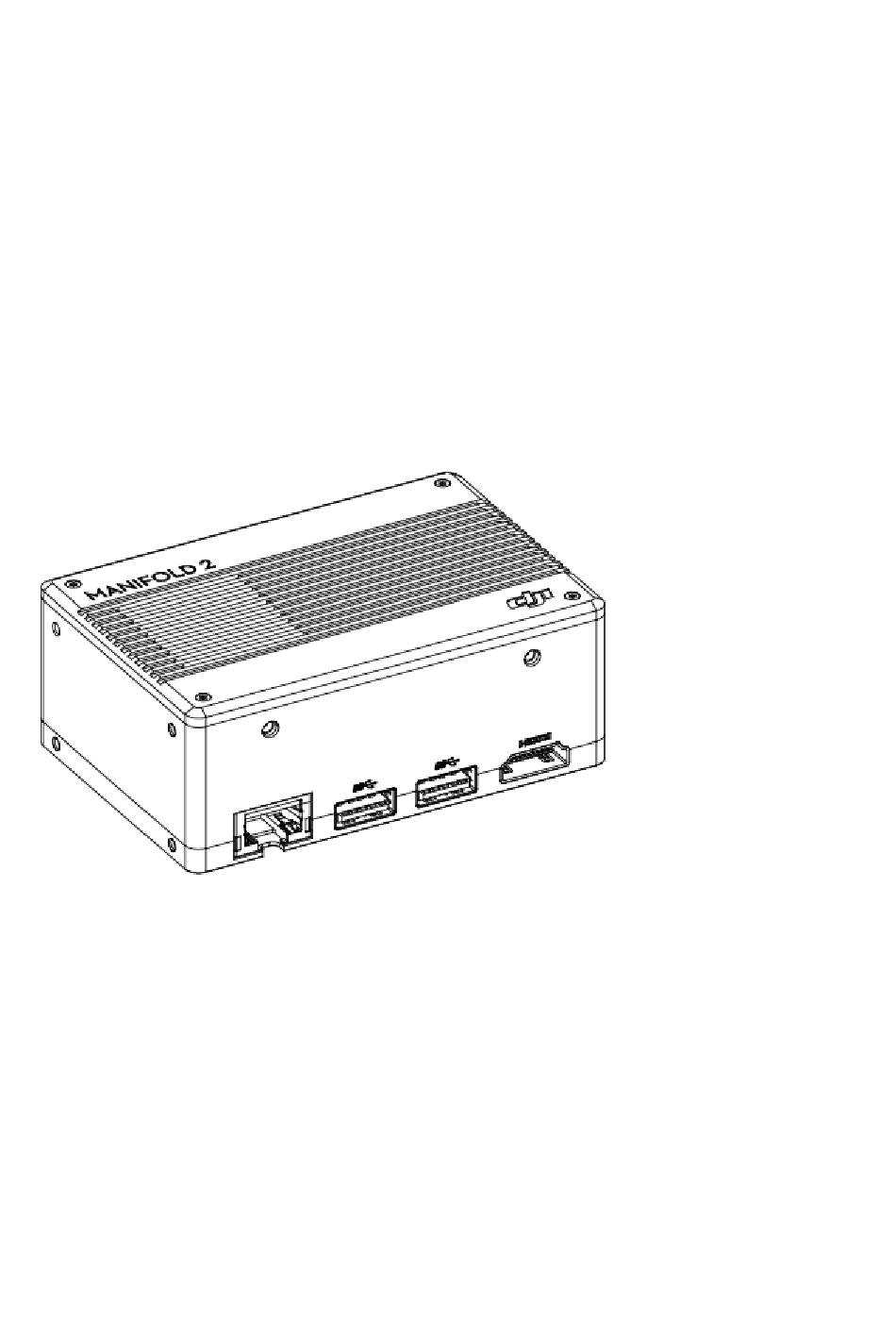

MANIFOLD 2 SERIES
User Guide
V1.0 2018.12
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MF2G and is the answer not in the manual?

Questions and answers

Related Manuals for dji MF2G

Summary of Contents for dji MF2G

  • Page 1 MANIFOLD 2 SERIES User Guide V1.0 2018.12...
  • Page 2 Read this entire document carefully to ensure proper configuration before use. Failure to read and follow instructions and warnings in this document may result in serious injury to yourself or others, damage to your DJI product, or damage to other objects in the vicinity. This document and all other collateral documents are subject to change at the sole discretion of DJI.
  • Page 3 Warning 1. Make sure to use DJI designated cables and connect external devices to the ports in strict accordance with specifications of these ports. 2. DO NOT disassemble the Manifold 2 and its accessories. 3. Ensure that the Manifold 2 and its components are free from contamination such as water, oil, soil, and sand.
  • Page 4 * Support for DJI devices will be added as testing and development continues. Visit the Manifold 2 product page on dji.com for a complete list. http://www.dji.com/ground-station-pro http://www.dji.com/manifold2 In the Box Power Distribution Manifold 2  1 USB 3.0 Hub  1 Unit ...
  • Page 5 Overview Manifold 2 The illustrators below take the Manifold 2-G as an example. Unless otherwise specified, the descriptions apply to Manifold 2 series. 1. Ethernet Port (RJ-45) Connect a network cable to the port to have access to the Internet. 2.
  • Page 6 Connects to an external power source to supply power for the Manifold 2. The ports are standard XT30 ports with an input voltage of 13.2 - 27 V and independent from each other. When connecting power source to both ports, the Manifold 2 will automatically choose the power source with a higher voltage.
  • Page 7 The UART0 port is for the debug terminal with a baud rate of 115200. DO NOT connect it to the DJI SDK API Port or any other non-stream input port. Access UART0 from ttyS0 in the kernel of the operating system, while access UART1 (for the Manifold 2-G only) from ttTHS2 in the kernel of the operating system.

  • Page 8: Power Distribution Unit

    Connects to the Button I/O Extension Unit using the I/O cable to control some specific functions of the Manifold 2. DO NOT hot swap the devices connected to the I/O port to avoid damage to the devices. Pins description: SPI:MOSI SPI:MISO SPI:CS SPI:CLK GND I2C:SCL...
  • Page 9 Connect the power adapter to the port, connect the power adapter to the AC power source (100 - 240 V, 50/60 Hz), and then Port 1 can supply power to the Manifold 2 continuously. Many of DJI’s power adapters are available for this port. Refer to the Specifications for details.
  • Page 10 USB 3.0 Hub The USB 3.0 Hub includes four USB 3.0 ports and one XT30 port. Connect a 4S - 6S LiPo battery to supply output current of up to 1 A for each USB port. Button I/O Extension Unit Connect the Button I/O Extension Unit to the I/O port on the Manifold 2 to control some specific functions of the Manifold 2.

  • Page 11: System Configuration

    The Manifold 2 comes with pre-installed Ubuntu 16.04 operating system. Users can log in with the information below when connecting a monitor with a HDMI port, mouse and keyboard after powered on. User name: dji Password: dji Network Configuration Access the Internet using a network cable or Wi-Fi (for the Manifold 2-G only).

  • Page 12: Software Installation

    Wired Network $ sudo ifconfig eth0 xxx.xxx.xxx.xxx $ ifconfig Wireless Network $ sudo ifconfig wlan0 xxx.xxx.xxx.xxx $ ifconfig xxx.xxx.xxx.xxx is the IP address that you wish to use. The commands above can also be used to check if the configuration is correct. Software Installation The Manifold 2-G and Manifold 2-C come with the following pre-installed software.

  • Page 13: Installation And Connection

    Manifold 2 Mini Network Switch with the Manifold 2, and assemble them as shown using the Assembly Bar Set. 2. When using with DJI flight platforms, mount the Manifold 2 and other external devices to the flight platform using a compatible mounting bracket.

  • Page 14: Specifications

    UART port on the Manifold 2. Make sure to use the UART Cable for M210 Series included. Specifications Manifold 2 Name Manifold 2-G Manifold 2-C Model MF2G MF2C Weight 220 g 220 g 91  61  35 mm Dimensions Processing...
  • Page 15 IEEE 802.11a/b/g/n/ac Max Transmission Speed: 866.7 Mbps Operating Frequency: 2.4000 - 2.4835 GHz; 5.150 - 5.250 GHz; 5.250 - 5.350 GHz EIRP: < 20dBm (5.150 - 5.250 GHz) < 23 dBm (5.250 - 5.350 GHz) USB 3.0 Port  2, USB 3.0 OTG USB 3.0 Port ...
  • Page 16 FCC Compliance Notice This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 17 ISED Warning This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: (1)This device may not cause interference.(2)This device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 18 EU contact address: DJI GmbH, Industriestrasse 12, 97618, Niederlauer, Germany Declaración de cumplimiento UE: SZ DJI TECHNOLOGY CO., LTD. por la presente declara que este dispositivo cumple los requisitos básicos y el resto de provisiones relevantes de la Directiva 2014/53/EU.
  • Page 19 Contactadres EU: DJI GmbH, Industriestrasse 12, 97618, Niederlauer, Germany Declaração de conformidade da UE: A SZ DJI TECHNOLOGY CO., LTD. declara, através deste documento, que este dispositivo está em conformidade com os requisitos essenciais e outras disposições relevantes da Diretiva 2014/53/EU.
  • Page 20 Déclaration de conformité UE : Par la présente, SZ DJI TECHNOLOGY CO., LTD déclare que cet appareil est conforme aux principales exigences et autres clauses pertinentes de la directive européenne 2014/53/EU. Une copie de la déclaration de conformité UE est disponible sur le site www.dji.com/euro-compliance...
  • Page 21 Umweltfreundliche Entsorgung Elektro-Altgeräte dürfen nicht mit gewöhnlichem Abfall entsorgt werden und müssen separat entsorgt werden. Die Entsorgung an kommunalen Sammelstellen ist für Privatpersonen kostenlos. Die Eigentümer der Altgeräte sind für den Transport zu den Sammelstellen verantwortlich. Durch diesen geringen Aufwand können Sie zur Wiederverwertung von wertvollen Rohmaterialien beitragen und dafür sorgen, dass umweltschädliche und giftige Substanzen ordnungsgemäß...
  • Page 22 I vecchi dispositivi elettrici non devono essere smaltiti insieme ai rifiuti residui, ma devono essere smaltiti separatamente. Lo smaltimento da parte di soggetti privati presso i punti di raccolta pubblici è gratis. È responsabilità del proprietario dei vecchi dispositivi portarli presso tali punti di raccolta o punti di raccolta analoghi.
