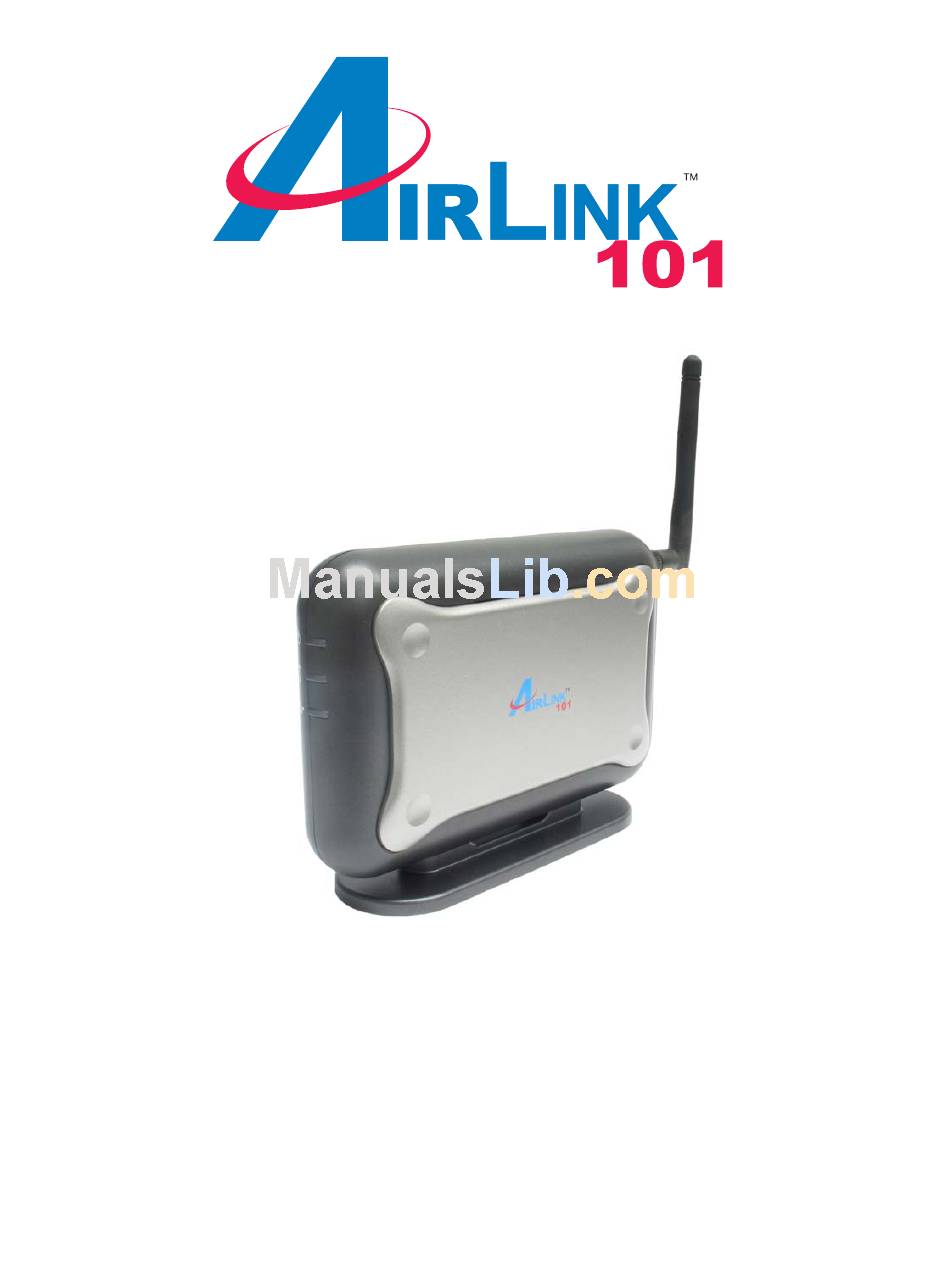

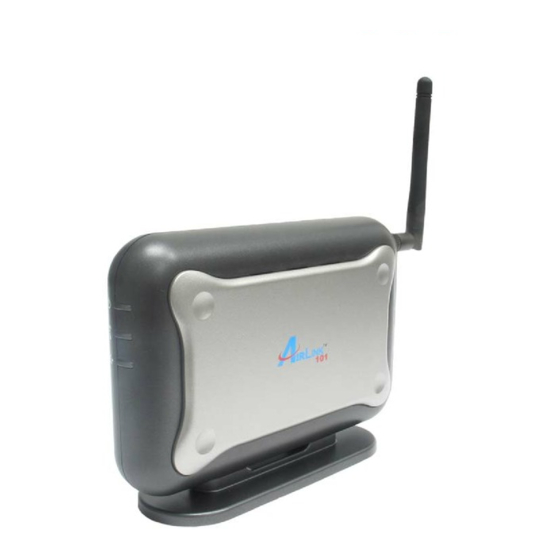

Super G™ Wireless Access Point
Model # AP421W

Quick Installation Guide

Ver. 1B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP421W and is the answer not in the manual?

Questions and answers

Related Manuals for Airlink101 AP421W

Summary of Contents for Airlink101 AP421W

  • Page 1: Quick Installation Guide

    Super G™ Wireless Access Point Model # AP421W Quick Installation Guide Ver. 1B...

  • Page 2: Getting Started

    Section 1 This Quick Installation Guide only provides the basic instructions. For more detailed information, please refer to the User’s Manual in the supplied CD. Please refer to the following diagrams to determine which operating mode you should use for your network. Getting Started...
  • Page 3 If you want to use the AP421W as an Access Point with minimal configuration, just connect it to your existing router or switch with a Cat. 5 network cable and then power it on. The Access Point is ready to...

  • Page 4: Gathering Information

    Write down the values for the IP Address, Subnet Mask, and Default Gateway on a piece of paper. Step 4 If you want to set the AP421W to a mode other than an Access Point, write down the following values for your existing wireless router or AP: 1. SSID (Network Name) 2.

  • Page 5: Using Web Configuration Utility

    Section 3 Using Web Configuration Utility You can use the Access Point’s built-in Web Configuration Utility to configure the encryption settings and operating modes. This section describes how to configure the Access Point’s wireless and security settings. For information on the different operating modes, please refer to Section 4, Selecting Operating Modes.
  • Page 6 Step 3 At the Wireless section, enter the SSID (Network Name) of your wireless network and the channel number. Step 4 If you have enabled encryption for your wireless network, you’ll need to configure the same security settings on the Access Point as well. Select Enable and click on Configure Security.
  • Page 7 Step 5a Select the same level of WEP encryption (64-Bits / 128-Bits) of your wireless network from the drop-down menu. Step 5b Enter the same WEP key (password) of your wireless network in the Key 1 field and click Save. Skip to Step...
  • Page 8 Step 6 Select WPA from the drop-down menu and enter all the applicable fields. Click Save and proceed to Step WPA-PSK Step 7 Select WPA-PSK from the drop-down menu and enter all the applicalble fields. Click Save and proceed to Step...
  • Page 9 Step 8 Click Apply to save the changes. Step 9 For best result, place the Access Point at a central location where it is accessible to all the wireless computers.

  • Page 10: Selecting Operating Modes

    Section 4 Selecting Operating Modes This section describes how to change the Access Point’s operating modes. Step 1 Select the Operating Mode tab to display the Operating Mode page. Step 2 Select the desired mode and enter the remote Access Point’s MAC address. You can find the target MAC address from the remote AP’s web configuration utility.
  • Page 11 AP Client The AP Client mode converts the Access Point to a wireless network adapter, allowing the network device such as your computer or game console to become a wireless client. Step 1 Select AP Client and enter the MAC address of the remote AP or click on the Available Networks button to scan for any available wireless network.
  • Page 12 Step 4 Click Apply to save the changes. Step 5 Once the Access Point has restarted, you may disconnect it from the wireless router and connect it to the Ethernet port of your computer or game console.
  • Page 13 AP Repeater The AP Repeater mode converts the Access Point to a wireless repeater. By extending the wireless signal of the source AP/wireless router, the wireless coverage is expanded. Step 1 Select AP Repeater and enter the MAC address of the remote AP (source AP/wireless router) and click Apply to save the changes.
  • Page 14 Point to Point Bridge (WDS) The Point to Point Bridge mode converts the Access Point to a wireless bridge. It bridges the network clients from two physically separate LANS into one virtual LAN. Step 1 Select Point to Point Bridge and enter the MAC address of the remote AP and click Apply to save the changes.

  • Page 15: Connecting To The Access Point

    Section 5 Connecting to the Access Point Once you have properly configured the Access Point, your wireless computers should be able to detect its signal. Use your wireless network adapter’s utility to detect and connect to the Access Point. You can identify the Access Point by its MAC Address, which is displayed in the BSSID field of your wireless network adapter’s utility.

  • Page 16: Technical Support

    Section 6 Technical Support E-mail: support@airlink101.com Toll Free: 1-888-746-3238 Web Site: www.airlink101.com...
  • Page 17 Copyright © 2005 AirLink101. All rights reserved. AirLink101, the stylized AirLink101 logo, specific product designations, and all other words and logos that are identified as trademarks and/or service marks are, unless noted otherwise, the trademarks and service marks of AirLink101. All other product or service names are the property of their respective holders.
