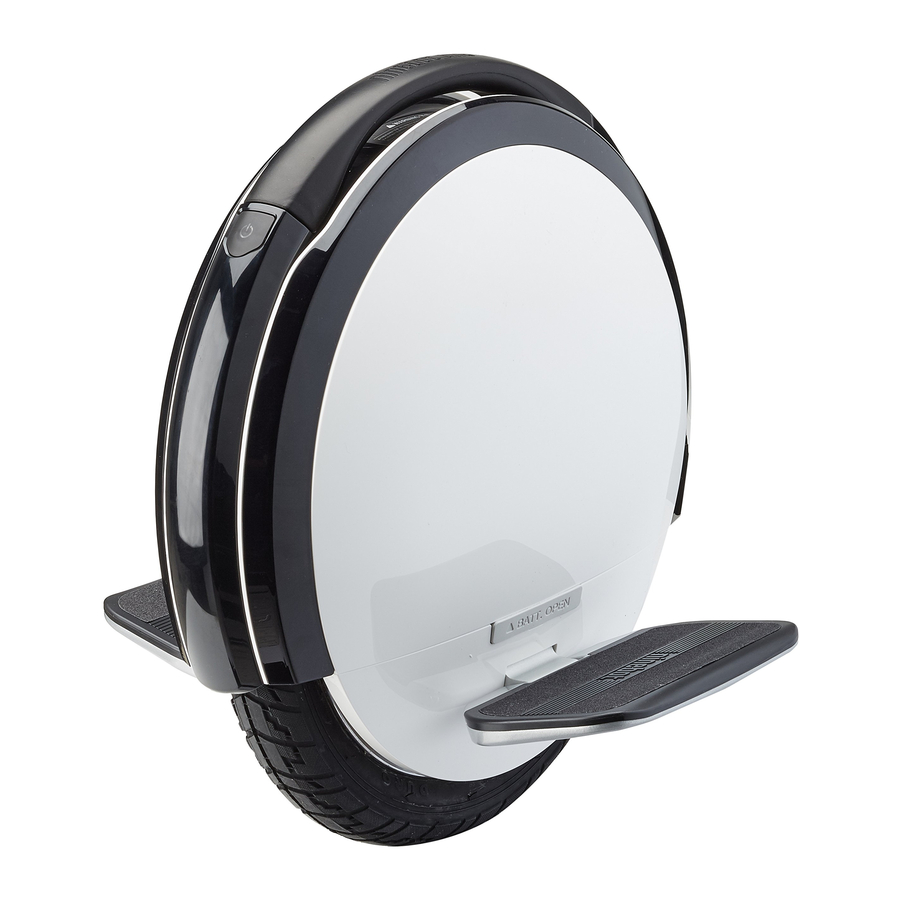

Segway Ninebot One S2 - Unicycle Manual

Welcome

To enjoy the many features of your Ninebot One S2 you must read and follow these instructions.
Enjoy your ride!

All figures in this manual are for reference only, and are subject to the actual product.

Product and Accessories

When unpacking your Ninebot One S2, please verify that the above items are included in the package. If you are missing any components, please contact your dealer/distributor or visit website: www.segway.com.
Please retain the box and packaging materials in case you need to ship your Ninebot One S2 in the future.

Diagram

Carry Mode

Carry Mode prevents the wheel from spinning when you lift your vehicle by the handle while it is powered on. With Carry Mode you can step off your vehicle, carry it across or around obstacles, then put it down and continue riding — all without having to turn off your vehicle.
You can enable/disable Carry Mode in the App.

Do not lift your vehicle by the handle when the vehicle is powered on when Carry Mode has been disabled. Doing so will cause the wheel to spin, and may result in personal injury or damage to your vehicle.

Charging

Turn off your vehicle before charging.

Do not connect the charger if the charge port or charge cable is wet.
When charging, press the power button to enable a visual display of the charge level.
Your vehicle is fully charged when the LED on the charger changes from red (charging) to green (trickle charge).

1. Locate the charge port


2. Open the charge port cover


3. Plug the charger into the unit


Battery Charge Level

The battery charge level display appears when the vehicle is kept stationary.
Each pair of lights represents 14% of battery life. When the battery is nearly empty the lights Use the App to read the remaining power and estimated remaining range.
As the power level decreases, your vehicle will gradually reduces the speed limit.

First Use

There are safety risks when learning to ride the Ninebot One S2. You must read the Safety Instructions and follow the New Rider Tutorial in the App before your first ride.
For your safety, your Ninebot One S2 is not activated at this time and will beep occasionally after Power ON. Until activated, the Ninebot One S2 maintains a very low riding speed and steering sensitivity, and should not be ridden. Install the App on your mobile device (with Bluetooth 4.0 or above), connect to the Ninebot One S2 with Bluetooth, and follow the App instructions to activate your Ninebot One S2 and follow the training procedures.

Scan the QR code to download the App
(iOS 9.0 or above, Android™ 4.3 or above).

1. Install the App and register/login.
2. Hold the vehicle upright and power it on. Turn it off and on again to familiarize yourself with the controls.

3. Click "Search Device" to connect to your vehicle. The vehicle will beep to indicate a successful connection.

4. Follow the instructions in the App.

Learning to Ride

Rider must weigh 88–330 lbs (40–150 kg) and must be 4'3"–6'6" (130–200 cm) tall.

Wear an approved helmet and other protective gear to minimize any possible injury.
After activation, the App will lead you through the New Rider Tutorial. Please follow the instructions in the App and in this manual.
NOTE
You must first download the Segway-Ninebot App on your mobile device. The App will lead you through the New Rider Tutorial.
For your safety, the Ninebot One S2 will limit the max speed to 4.3 mph (7 km/h) until you complete the New Rider Tutorial.
For the first 0.6 miles (1 km) after completing the New Rider Tutorial, the max speed will be limited to 12.4 mph (20 km/h), after which you can disable the speed limiter and reach a maximum speed of 28 mph (45 km/h).

1. Put one foot on the pedal, and move the vehicle back and forward.

2. Place one foot on the pedal, keep your legs and body upright, and gradually move the center of your body weight up.


3. Place one foot on the pedal, raise the other off the ground for 1–2 seconds, and slide forward.

4. Place one foot on the pedal, push the other foot down on the ground, and slide forward.

5. Place both feet on the pedals and direct the vehicle by adjusting your center of gravity.

6. Turn by shifting your weight onto the foot.


Daily Maintenance

Cleaning and Storage
Use a soft, wet cloth to wipe the mainframe clean. Hard to remove dirt can be scrubbed with a toothbrush and toothpaste, then cleaned with a soft, wet cloth.

NOTE
Do not wash your Ninebot One S2 with alcohol, gasoline, acetone, or other corrosive/volatile solvents. These substances may damage the appearance and internal structure of your Ninebot One S2. Do not wash your Ninebot One S2 with a power washer or hose.

Make sure the Ninebot One S2 is powered OFF, the charging cable is unplugged, and the rubber cap on the charge port is tightly sealed before cleaning; otherwise you may damage the electronic components. Store your NinebotOne S2 in a cool, dry place. Do not store it outdoors for extended periods of time. Exposure to sunlight and extreme temperature (both hot and cold) will accelerate the aging process of the plastic components and may reduce battery life.

Battery Pack Maintenance
Do not store or charge the battery at temperatures outside the stated limits (see Specifications). Do not puncture the battery. Refer to your local laws and regulations regarding battery recycling and/or disposal. A well maintained battery can perform well even after many miles of riding. Charge the battery after each ride and avoid draining the battery completely. When used at room temperature (70°F [22°C]) the battery range and performance is at its best; whereas using it at temperatures below 32°F (0°C) can decrease range and performance. Typically, at -4°F (-20°C) range can be half that of the same battery at 70°F (22°C). Battery range will recover when temperature rises. More details are available in the App.

NOTE
Typically, a fully charged battery should retain charge for 120-180 days. A low-power battery should retain charge for 30-60 days. Remember to charge the battery after each use. Completely draining the battery may cause permanent damage to the battery. Electronics inside the battery record the charge-discharge condition of the battery; damage caused by over-charging or under-charging will not be covered by the Limited Warranty.

Do not attempt to disassemble the battery. Risk of fire. No user serviceable parts.

Do not ride when the ambient temperature is outside the machine operation temperature (see Specifications) because low/high temperature will limit the maximum power/torque. Doing so could cause personal injury or property damage due to slips or falls.

Removing Battery Pack

The standard Ninebot One S2(with a capacity of 310 Wh) has two battery packs, one on either side. You can remove one battery pack to limit speed and mileage, and reduce the weight of the Ninebot One S2. Removing one pack limits the speed to 18km/h, the mileage to around 15km, and the weight of the vehicle to about 11.5kg.
(Mileage will vary with the user' s weight, temperature, road conditions, and so on. )
Removing a battery pack can be dangerous. Turn to our after-sales service or your distributor and do not attempt to remove the battery back by yourself.

1. Open the soft rubber plug.
   After powering off the vehicle, open the soft rubber plug on the left side of the vehicle (as shown in the figure, above the pedal), and unscrew the Philip's screw on both sides.

2. Open the battery cover.
   As shown in the figure, use your finger to open the battery cover from the bottom up using the gap in the middle. Use a screwdriver if necessary.

3. Untie the battery wires.
   Release the black Awire first, and then release the yellow B wire. To do so, pull the plug firmly, but don't pull on the wire directly or you may damage it.

4. Remove the screw.
   When unscrewing the four screws in the four corners of the battery, do not press too hard because you may damage the battery.

5. Install the battery cover.
   As shown in the figure, push the top snap into place first, and then press the housing.

6. Fix the screws and the soft rubber plug.
   Tighten the screws, and install the soft rubber plug.


Specifications

Riding Safety

1. The Ninebot One S2 is a recreational transporter. Before mastering riding skills, you need to practice. Neither Ninebot Inc. (means Ninebot (Beijing) Tech Co., Ltd. and its subsidiaries and affiliates) nor Segway Inc. is responsible for any injuries or damage caused by a rider's inexperience or failure to follow the instructions in this document.
2. Please understand that you can reduce the risk by following all the instructions and warnings in this manual, but you cannot eliminate all the risks. Remember that whenever you ride the Ninebot One S2 you risk injury from loss of control, collisions, and falls. When entering into public spaces always comply with the local laws and regulations. As with other vehicles, faster speeds require longer braking distance. Sudden braking on low traction surfaces could lead to wheel slip, or falls. Be cautious and always keep a safe distance between you and other people or vehicles when riding. Be alert and slow down when entering unfamiliar areas.
3. Always wear a helmet when riding. Use an approved bicycle or skateboard helmet that fits properly with the chin strap in place, and provides protection for the back of your head.
4. Do not attempt your first ride in any area where you might encounter children, pedestrians, pets, vehicles, bicycles, or other obstacles and potential hazards.
5. Respect pedestrians by always yielding the right of way. When approaching a pedestrian from the front, stay to the right and slow down. Avoid startling pedestrians. When approaching from behind, announce yourself and slow down to walking speed when passing. Pass on the left whenever possible. Please obey local traffic laws and regulations.
6. In places without laws comply with the safety guidelines outlined in this manual. Neither Ninebot Inc. nor Segway Inc. is responsible for any property damage, personal injury/death, accidents, or legal disputes caused by violations of the safety instructions.
7. Do not allow anyone to ride your Ninebot One S2 on his/her own unless they have carefully read this manual and followed the New Rider Tutorial in the App. The safety of new riders is your responsibility. Assist new riders until they are comfortable with the basic operation of the Ninebot One S2. Make sure each new rider wears a helmet and other protective gear.
8. Before each ride check for loose fasteners and damaged components. If the Ninebot One S2 makes abnormal sounds or signals an alarm, immediately stop riding. Diagnose your Ninebot One S2 via the Segway-Ninebot App and call your dealer/distributor for service.

9. Be alert! Scan both far ahead and in front of your Ninebot One S2 — your eyes are your best tool for safely avoiding obstacles and low traction surfaces (including, but not limited to, wet ground, loose sand, loose gravel, and ice).
10. To reduce risk of injury, you must read and follow all "CAUTION" and "WARNING" notices in this document. Do not ride at an unsafe speed. Under no circumstance should you ride on roads with motor vehicles. The manufacturer recommends riders be 16+ years old.
    Always follow these safety instructions:
    1. People who should not ride the Ninebot One S2 include:
       1. Anyone under the influence of alcohol or drugs.
       2. Anyone who suffers from disease that puts them at risk if they engage in strenuous physical activity.
       3. Anyone who has problems with balance or with motor skills that would interfere with their ability to maintain balance.
       4. Anyone whose weight is outside the stated limits (see Specifications).
       5. Pregnant women.
    2. Riders under the age of 18 years old should ride under adult supervision.
    3. Comply with local laws and regulations when riding this product. Do not ride where prohibited by local laws.
    4. To ride safely, you must be able to clearly see what is in front of you and you must be clearly visible to others.
    5. Do not ride in the snow, in the rain, or on roads which are wet, muddy, icy, or that are slippery for any reason. Do not ride over obstacles (sand, loose gravel, or sticks). Doing so could result in a loss of balance or traction and could cause a fall.
11. Do not attempt to charge your Ninebot One S2 if it, the charger, or the power outlet is wet.
12. As with any electronic device, use a surge protector when charging to help protect your Ninebot One S2 from damage due to power surges and voltage spikes. Only use the Segway supplied charger. Do not use a charger from any other different product models.
13. Use only Ninebot or Segway approved parts and accessories. Do not modify your Ninebot One S2. Modifications to your Ninebot One S2 could interfere with the operation of the Ninebot One S2, could result in serious injury and /or damage, and could void the Limited Warranty.

Do not accelerate or decelerate abruptly.

You must read and understand the Warnings and Riding Safety instructions in this manual before attempting to ride the Ninebot One S2.
