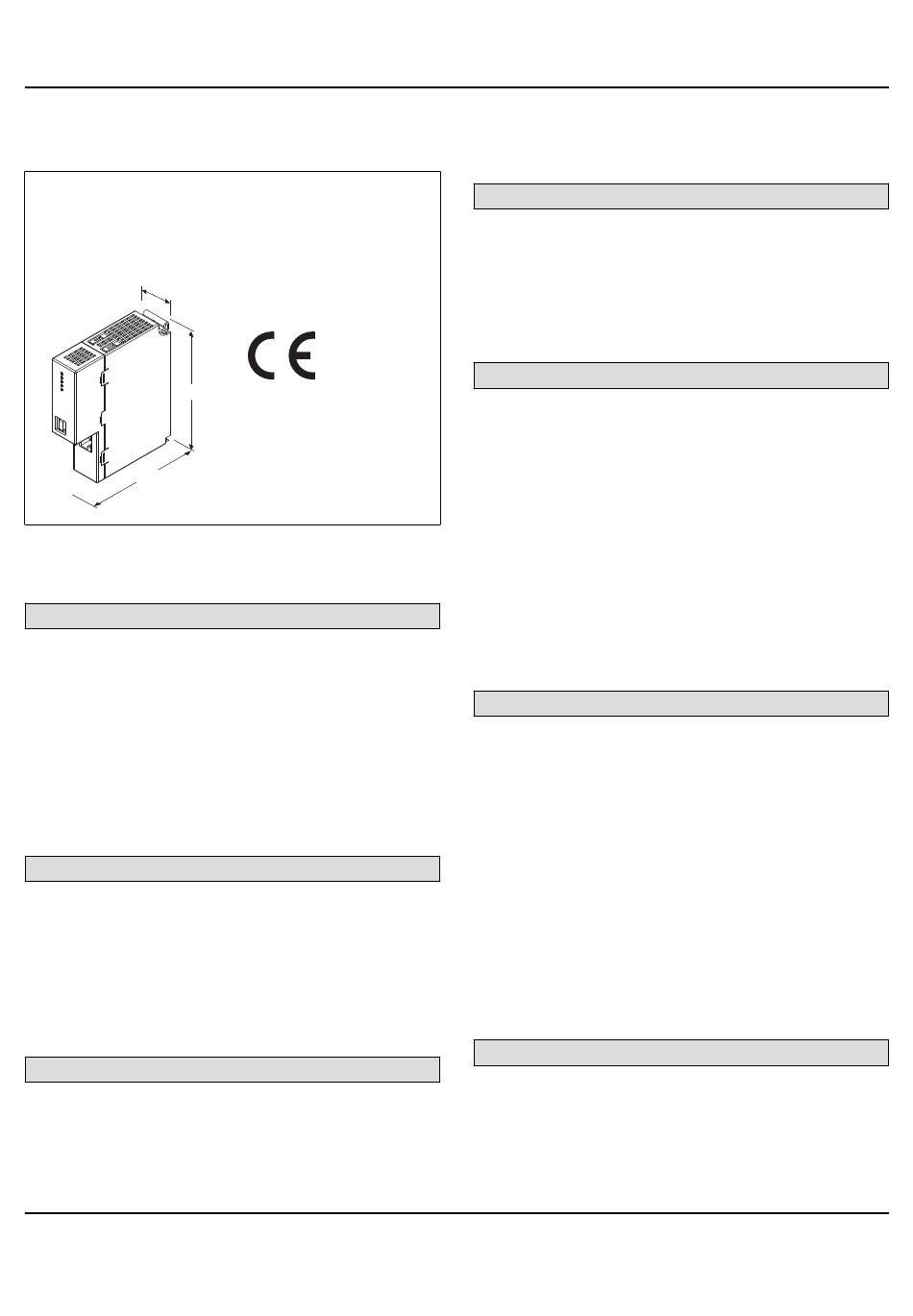

Remote I/O R30 Series

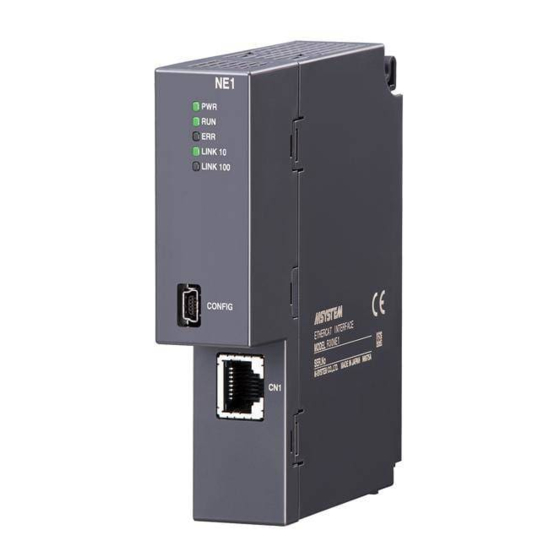

MODBUS/TCP INTERFACE MODULE
Functions & Features
• Interchanges analog or discrete I/O signals with the
filedbus (Modbus/TCP)
• Combined with R3 Series I/O modules
25 [.98]
110 [4.33]
98 [3.86]
mm [inch]
MODEL: R30NE1[1]

ORDERING INFORMATION

• Code number: R30NE1[1]
Specify a code from below for [1].
(e.g. R30NE1/Q)
• Specify the specification for option code /Q
(e.g. /C01/SET)
[1] OPTIONS
blank: none
/Q: With options (specify the specification)
SPECIFICATIONS OF OPTION: Q (multiple selections)
COATING (For the detail, refer to our web site.)
/C01: Silicone coating
/C02: Polyurethane coating
/C03: Rubber coating
EX-FACTORY SETTING
/SET: Preset according to the Ordering Information Sheet
(No. ESU-9019)
CAUTION
• The internal bus communication period for R3 series I/O
modules installed on the R30EBS is as follows.
Internal bus communication period = 6 msec. × number of
I/O module + 10 msec. (Data update period of main CPU)
Example: Four R3 I/O modules
6 msec. × 4 + 10 msec. = 34 msec.
MG CO., LTD.
www.mgco.jp
Even when the R30EBS is mounted to the R30BS, the
internal bus communication period of R30 series is kept to
approx. 1 msec.
RELATED PRODUCTS
• PC configurator software (model: R30CFG)
• PC configurator software (model: R3CON)
Downloadable at our web site.
For connecting to PC, use commercially available Mini-B
type USB cable. (provided by user)
• R3 series I/O modules (except R3-TC2)
GENERAL SPECIFICATIONS
Connection
Ethernet: RJ-45 connector
Internal bus: Via the Installation Base (model: R30BS)
Internal power: Via the Installation Base (model: R30BS)
Isolation: Ethernet to internal bus or internal power
Setting input type & input range:
R30 series I/O module: PC configuration software (model:
R30CFG)
R3 series I/O module: PC configuration software (model:
R3CON)
Internal bus communication cycle: Approx. 1 msec.
Status indicator LEDs: PWR, RUN, ERR
(Refer to the instruction manual for details.)

ETHERNET COMMUNICATION

Communication Standard: IEEE 802.3u
Transmission: 10BASE-T, 100BASE-TX
Baud rate: 10/100 Mbps (Auto Negotiation function)
Protocol: Modbus/TCP
Data: RTU (Binary)
Max. number of socket connections: 2
Transmission media: 10BASE-T (STP, Category 5), 100BASE-
TX (STP, Category 5e)
Max. length of fieldbus segment: 100 meters
Ethernet indicator LEDs: LINK10, LINK100
IP address: 192.168.0.1 (factory setting);
can be set/changed using PC Configurator Software (model:
R30CFG)
Port No.: 502

INSTALLATION

Current consumption: 110 mA
Operating temperature: -10 to +55°C (14 to 131°F)
Storage temperature: -20 to +65°C (-4 to +149°F)
Operating humidity: 10 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: Installation Base (model: R30BS)
R30NE1 SPECIFICATIONS
MODEL: R30NE1
ES-9019 Rev.5 Page 1/8
