MG R30BS Instruction Manual

INSTRUCTION MANUAL
INSTALLATION BASE
BEFORE USE ....
Thank you for choosing us. Before use, please check con-
tents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact our sales office or representatives.

■ PACKAGE INCLUDES:

Installation base ..................................................................(1)

■ MODEL NO.

Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.

POINTS OF CAUTION

■ CONFORMITY WITH EU DIRECTIVES

• The equipment must be mounted inside the instrument
panel of a metal enclosure.
• The actual installation environments such as panel con-
figurations, connected devices, connected wires, may af-
fect the protection level of this unit when it is integrated
in a panel system. The user may have to review the CE
requirements in regard to the whole system and employ
additional protective measures to ensure the CE conform-
ity.

■ GENERAL PRECAUTIONS

• Before you remove the unit or mount it, turn off the power
supply, input and output signals for safety.

■ ENVIRONMENT

• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 10 to 90% RH
in order to ensure adequate life span and operation.

■ WIRING

• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
MG CO., LTD. www.mgco.jp
5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Model

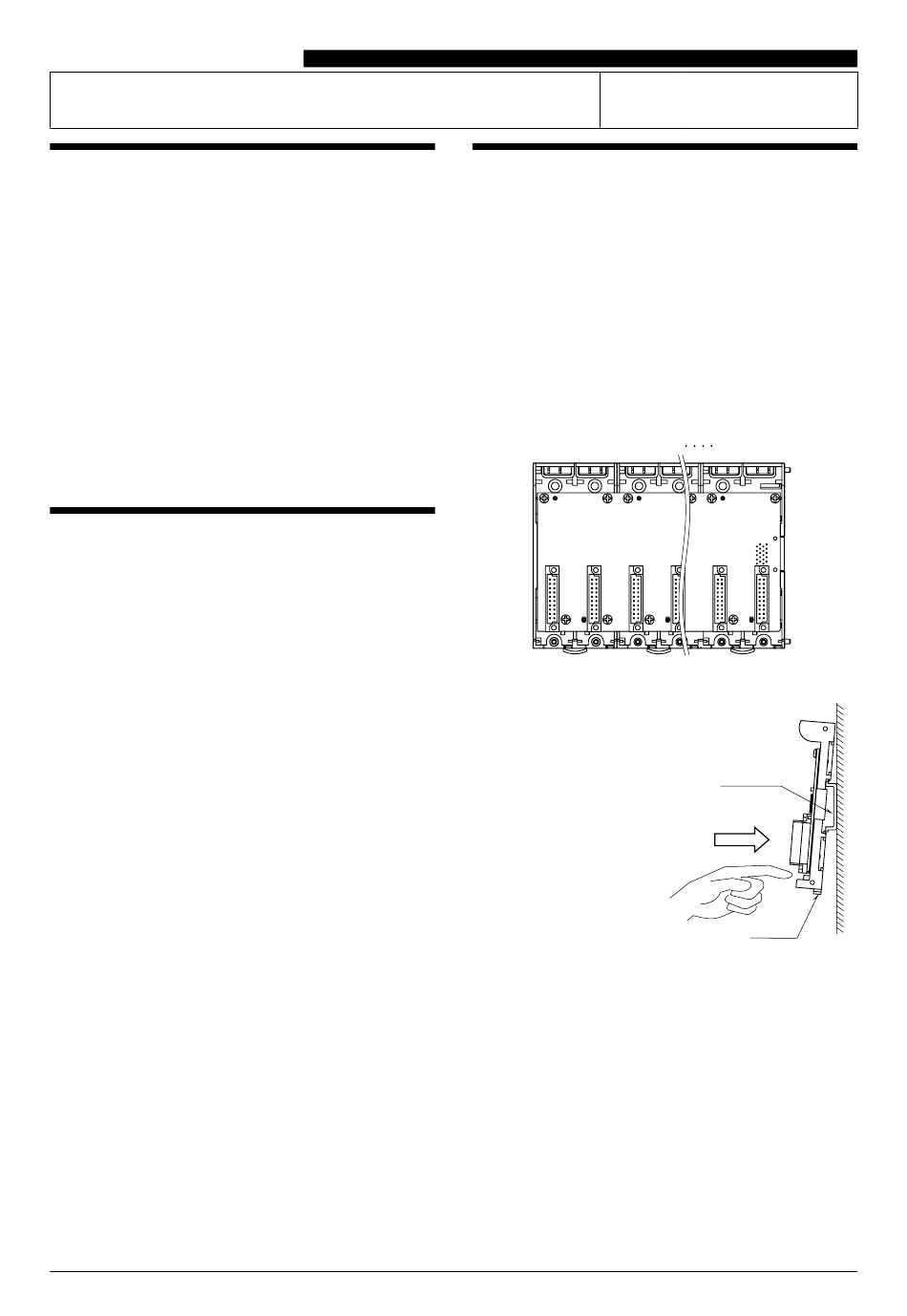

INSTALLATION

■ FRONT VIEW

Mount the power supply module and network module on
the dedicated slots (PWR and COM), and do not mount on
I/O slots. PWR slot is on the left end and COM slot is on the
immediate right of PWR slot. The I/O slots are numbered in
the ascending order starting from the one on the immediate
right of the network module (slot 1, slot 2...).
For model: TR30 or DL30, mount it on the PWR and COM
slot.
A code indicating the I/O slot number is assigned to each
I/O slot and I/O data is allocated in the order of this code.
When an I/O slot is vacant, blank data is sent or received to/
from the PLC, etc.
PWR COM I/O1

■ DIN RAIL MOUNTING

Set the unit such that its DIN
rail adaptor is at the bottom.
Hang the upper hook at the
rear side of unit on the DIN
rail and push in the lower.
When removing the unit,
push down the DIN rail adap-
tor utilizing minus screwdriv-
er and pull.
R30BS
I/On
DIN Rail
35mm wide
DIN Rail
Adaptor
EM-9008 Rev.5 P. 1 / 5
