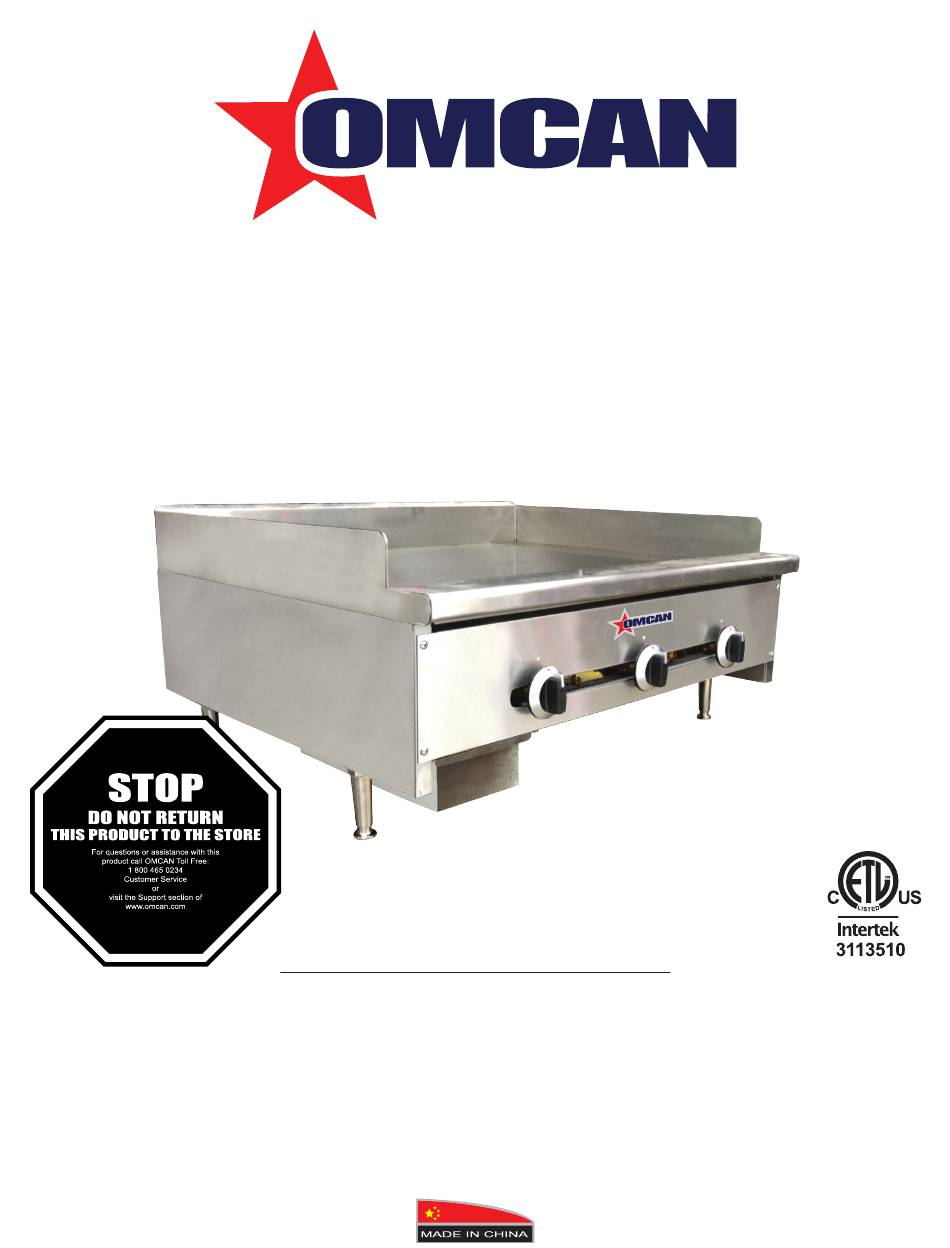

- Page 1 Gas Counter Top Griddles Model CE-CN-1219-G Item 37524 Instruction Manual Revised - 12/05/2016 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model CE-CN-1219-G Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation --------------------------------------------------------------------------------------- 6 - 8 Operation ----------------------------------------------------------------------------------------- 8 - 9 Maintenance ----------------------------------------------------------------------------------- 9 - 10 Troubleshooting... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 Never attempt to move grates while cooking. 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.
-
Page 6: Technical Specifications
*Shipped setup for Natural Gas and includes a kit conversion for LPG. Installation WARNING: Fire Hazard NEVER attempt to force or repair a stuck control valve. Contact your Authorized Omcan Service Agency for repairs. Forced or improperly repaired valves pose the risk of fire and/or explosion. WARNING: Fire and Explosion Hazard If the pilot light should be extinguished, turn off the gas shut-off valve. -
Page 7: Installation
Installation 6”(150 mm) from all sides. This equipment must be a distance of 6”(150 mm) from other equipment. The equipment must have the 4”(100 mm) legs installed and be placed on a non-combustible surface. Air Supply and ventilation: • The area in front and around the equipment must be kept clear to avoid any obstruction of the flow of combustion and ventilation air. -
Page 8: Operation
Installation Gas Conversion: • Conversion from Natural Gas to Liquid Propane (LP) or vice versa may only be performed by the factory or its authorized service agent. In case of troubleshooting, ensure the correct orifice sizes of the spuds have been installed. -
Page 9: Maintenance
2000 feet elevation. For conversion to LP / Propane, or for operation above 2000 feet elevation, contact your Authorized Omcan Service Agency. Cooking Recommendations: Save energy by turning the temperature control knob OFF any time the griddle is not in use. Gas burners provide full heat instantly, making it unnecessary to leave the unit on during intermittent use. -
Page 10: Troubleshooting
Turn temperature control to ON Set to desired setting when lit. Water in burner. Remove burner and dry thoroughly. Damaged temperature control, Contact Authorized Omcan Service Burner or other internal Agency for repairs. component. Portions of a burner won’t light or Flame opening(s) clogged. - Page 11 Temperature control not set. Adjust for desired temperature. Shutter or nozzle out of Contact qualified technician for adjustment. adjustment. Damaged temperature control, Contact Authorized Omcan Service burner or other internal Agency for repairs. component. REFERENCE Item Number Model Number Description Manufacturer Model Number Griddle Gas Counter Top 48”...
-
Page 12: Instructions For Field Conversion
Instructions for Field Conversion MANDATORY MARKINGS Below are examples of the rating plates that must be fixed to the rear or side of the unit on completion of the conversion by a licensed installer. WARNING: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. - Page 13 The installation is not proper and complete until the operation of the covered appliance is checked as specified in the manufacturer’s instructions. MODELS PARTS INCLUDED CE-CN-1219-G 4 × Jet #51 drill CAUTION: ENSURE THE GAS SUPPLY IS SHUT OFF AT THE MANUAL SHUT OFF VALVE BEFORE PROCEEDING WITH THE CONVERSION.
-
Page 14: Parts Breakdown
2000 ft (600m). For operation at elevations above 2000 ft (600m), equipment ratings shall be reduced at the rate of four (4) percent for each 1000 ft (300m) above sea level before selecting appropriately sized equipment. Parts Breakdown Model CE-CN-1219-G 37524 Item Item... - Page 15 Parts Breakdown Model CE-CN-1219-G 37524...
-
Page 16: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 17 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
- Page 18 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
