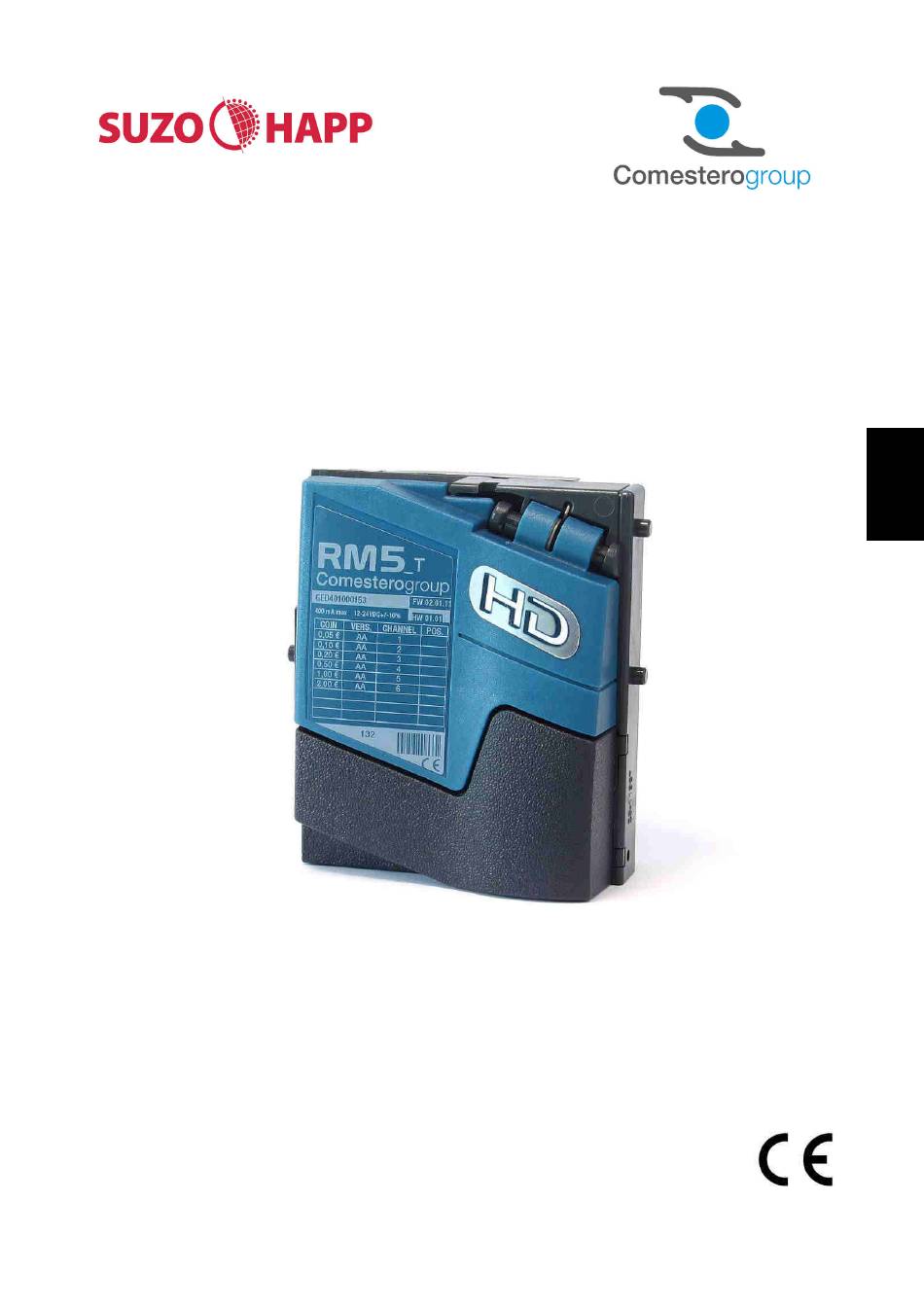

- Page 1 Electronic Coin Validator Operating manual Cod. DMGET00001.0EN Rel. 1.0 11 – 06 - 2015...
- Page 3 GUIDE TO THE SYMBOLS IN THIS MANUAL The following symbols have been included in this manual to facilitate its consultation. Important information Read carefully before use Caution!
- Page 4 Operating Manual RM5 HD-T DECLARATION OF CONFORMITY THE MANUFACTURER: Comesterogroup s.r.l. via M. Curie 8, 20060 Gessate MI DECLARES That the product: RM5HD-T TYPE: Electronic coin mechanism BRAND: Comesterogroup MODEL: RM5HD-T Is conform to the following European Directives, including their latest amendments, as well as to the national...
- Page 5 Possible hazards from machine use If kept in good conditions and if installed correctly (according to the indications in this manual), the equipment does not expose the user to any kind of hazards. Risks from electricity: direct contacts during its connection to the main power supply.
- Page 6 Operating Manual RM5 HD-T GENERAL GUARANTEE CONDITIONS Please read the following carefully in order to understand the general warranty conditions for this product. ART. 1 - Scope of application These general terms and conditions shall apply to all the goods and services provided by our company.
- Page 7 where the products have been used in conjunction with or incorporated into equipment or materials whose specifications have not been approved in writing by the selling company; tampering with the label showing the serial number of the machine; fault or breakage due to transport, acts of vandalism, natural calamities or wilful damage;...
- Page 8 Operating Manual RM5 HD-T quality and functionality of the product within eight days. If not, the product shall be considered accepted without reservations or objections by the Purchaser. ART. 6 - Retention of Title The supplied goods shall remain the property of our company until full payment of the price has been made.
-
Page 9: Table Of Contents
Contents Contents............................9 1. Introduction..........................10 2. Product description ....................... 10 3. Warnings ..........................10 4. Handling and unpacking....................... 11 4.1 Delivery of the packaged product..................... 11 4.2 Handling ..........................11 4.3 Unpacking..........................11 4.4 Dimensions ..........................12 4.5 Names of parts........................13 4.6 Equipment identification ...................... -
Page 10: Introduction
Operating Manual RM5 HD-T 1. Introduction This manual and its annexes provide all the necessary information for a correct installation of the product and all its components, as well as for its correct use and maintenance. The information contained in this manual can be modified without prior notice and do not constitute a commitment on behalf of Comesterogroup. -
Page 11: Handling And Unpacking
4. Handling and unpacking 4.1 Delivery of the packaged product Upon receiving your product, make sure it has not been damaged during transport. Should you notice damage of whatever nature, contact the delivery company and immediately file a complaint. Following transport, the package must be intact, i.e., it must not show: •... -
Page 12: Dimensions
Operating Manual RM5 HD-T Fig. 2 4.4 Dimensions Fig. 3... -
Page 13: Names Of Parts
4.5 Names of parts Fig. 4 A. LED INDICATOR D. OUTPUT CONNECTOR 1 NO B. INPUT CONNECTOR 1 COM 3 NC 2 IN2 BUTTON 2 4 NO 3 IN1 BUTTON 1 6 NC C. PGR CONNECTOR 1 COM E. DISPLAY CONNECTOR 2 VCC 1 GND 3 TX... -
Page 14: Equipment Identification
Operating Manual RM5 HD-T 4.6 Equipment identification The figure shows the label affixed on the coin mechanism, which contains the main equipment operation and identification information. Fig. 5 Coin mechanism code Power supply Firmware version Hardware version Accepted coins Calibration version... -
Page 15: Installation
Fig. 6 5.1.2 Front panel RM5 HD-T is compatible with F1 and F6 front panels and can be mounted either on the front or the rear of any machine. For details regarding installation, follow the instructions on the leaflet attached to each plate. - Page 16 Operating Manual RM5 HD-T A. Plate F1 Fig. 7...
- Page 17 B. Front panel F6 Fig. 8...
-
Page 18: Connections
HD-T connections by means of the connectors with which it is equipped. Fig. 9 5.2.1 Connection to a PC RM5 HD-T can be connected to a PC by means of C connector. This connection allows configuring RM5 HD-T in all its functions by means of the Multiconfig program. Fig. 10... -
Page 19: Led
Pin number C (PGR) BKGD 5.2.2 LED All RM5 HD-T coin mechanisms are equipped with a led, which provides the following information on the status and diagnostics through light pulses. Light indication Meaning 2 red pulses and 2 green pulses... -
Page 20: Configuration By Means Of Multiconfig Program
This program allows a complete configuration of the RM5 HD-T, setting all the operation modes and parameters. Before starting up Multiconfig, connect RM5 HD-T to your PC by means of the PRG connector. Multiconfig is provided with an on-line manual that guides the user through the various functions. - Page 21 3. Once the language has been selected, a message asking to close and restart software will be displayed: Fig. 14 4. Once Multiconfig software has been restarted the chosen language is active. 5. Now you can start the configuration session clicking on File, then New or the toolbar icon Fig.
- Page 22 Operating Manual RM5 HD-T Fig. 18 8. The configuration screen shows the following six tabs : STATUS, TEST, COINS, SORTING, TUNING, CHANNELS. Fig. 19 9. In the lower part you can find five buttons: CLONE, READ, RESET, WRITE, CANCEL. Fig. 20...
-
Page 23: Status Tab
Other Options you can tick off are the following: • Low Inhibit: not applicable for coin validator RM5 HD-T. • Hole coins : if chosen, enables the identification of coins with hole. • Accept multiple channel: allows the coin validator to accept two different sets of parameter values for the same coin (see Channels tab paragraph). -
Page 24: Test Tab
• Coin On String area - Inhibit time (s): you can set the time interval (in seconds) when coin validator remains locked. • Coin On String area - Alarm Interval (s): not applicable for RM5 HD-T. • Communication parameters: not used for RM5 HD-T. -
Page 25: Coin Tab
• Checksum: not used for RM5 HD-T. • Self Check: clicking on Test you can perform a check of the operation. If the test goes successfully the colour of the circle is green and the OK message is displayed. • Events and Counters: clicking on Update buttons the information about last five occurred events and the accounting of the loaded coins (Inserted, Accepted, Rejected, Fakes). - Page 26 Operating Manual RM5 HD-T Fig. 24 Fig. 25 The T-parameters button is activated at the bottom of the window. Fig. 26 Clicking on it the following window will be displayed. Here you can set the price and the length of each of two services.
- Page 27 Fig. 27 Time is set in seconds by default but you can set time counter in minutes. In the window you can also add the minimum credit which, added to ongoing service, carries its extension for a proportional time. Only in the event of single timer you can also request a warning signal that means the end of service supply.
-
Page 28: Sorting Tab
Operating Manual RM5 HD-T 6.2.4 Sorting Tab Sorting tab is not applicable to the electronic coin validator RM5 HD-T. 6.2.5 Tuning Tab Tuning tab displays as follows: Fig. 28 This tab allows to make Self Prog, Calibration, Verify and to recognize coins and tokens different from those set by default. -
Page 29: Channel Tab
6.2.6 Channel Tab Channels tab displays as follows : Fig. 29 This tab contains a table in which rows represent channels and columns represents measurement parameters. The boxes show for each channel the minimum and maximum acceptable values for each parameter. In the white column Coin you can find reference codes of coins as stated in the Coins tab. -
Page 30: Local Configuration
Operating Manual RM5 HD-T changes in a file. Furthermore you can also import data from a saved file, using Load Channels button. 6.3 Local Configuration In case of no programming tools, it is possible to set some of the coin mechanism parameters via the two keys and the display. -
Page 31: Local Programming For Progressive Timer Mode
During programming the following checks must be carried out: • The minimum increase value of a price is equal to the basic value. For this reason, if the basic value is 10 it is not possible to set the price units, but only the thousands, the hundreds and the tens. -
Page 32: Local Programming For Single Impulsive Totalizer Mode (Automatic Start)
Operating Manual RM5 HD-T 6.3.3 Local programming for single impulsive totalizer mode (automatic start) Description Display Inputs coin mechanism off enabled coin mechanism start up enabled input being configured 2020 (flashing) enabled disabled 1 (flashing) setting first digit of price 1.234... -
Page 33: Local Programming For Single Impulsive Totalizer Mode (Press The Button Before Start)
Description Display Inputs setting fourth digit of credit value 1234. input 1 increases units bonus 2 input 2 moves to next field 7 (flashing) 1.234 input 1 increases thousands Bonus Time input 2 moves to hundreds 12.34 input 1 increases hundreds Bonus Time input 2 moves to tens 123.4... -
Page 34: On Board Calibration
Operating Manual RM5 HD-T Description Display Inputs setting third digit of credit value 123.4 input 1 increases tens bonus 1 input 2 moves to units setting fourth digit of credit value 1234. input 1 increases units bonus 1 input 2 moves to next field... -
Page 35: Assignment Of The Value To The Calibrated Channel
Description Display Inputs According operating modes, the display can go back to inserting the first coin 0.00 and go on to show the coin number. According operating modes, the display can go back to inserting the second coin 0.00 and go on to show the coin number. -
Page 36: Care And Maintenance
Operating Manual RM5 HD-T 7. Care and maintenance All maintenance operations on the validator must be carried out when the machine onto which the validator is installed is disconnected from the power supply. We strongly recommend following these instructions carefully in order to always keep the validator in the best operating conditions and to prevent dangerous situations that would make the guarantee void. -
Page 37: Diagnosis And Technical Assistance
8. Diagnosis and technical assistance In this section are described the main anomalies that may occur using this product, with the possible solutions to minimise or eliminate machine downtime. If the problem you are encountering is not described here or should the solution not solve it, please contact our after-sales service at: +39 0295781111. -
Page 38: Technical Data
Not condensed humidity [%] : Accepted coins dimension Ø (16÷27) mm GED401xxxxxx thickness : 2,4 mm Ø (17÷31,5) mm GED406xxxxxx thickness : 3,2 mm Acceptance speed (without sorter) : Up to 6 coins/second RM5 HD-T is able to manage a 4 digit display... -
Page 39: Annexes
10. Annexes 10.1 Decommissioning and disposal At the end of its intended life, the product must be decommissioned and disposed of at a recycling site. Remove the equipment from its installation site, empty all the coins out of it and remove the power supply cable. - Page 40 Operating Manual RM5 HD-T Sanctions in the event of illegal disposal of such waste : The distributor who does not retrieve the used electrical or electronic equipment free of charge, as stated in art. 6, paragraph 1, letter b), will be fined between 150 and 400 Euros, for every equipment unretrieved or retrieved not free of charge.
- Page 42 Operating Manual RM5 HD-T...
- Page 44 Comesterogroup S.r.l. – a SuzoHapp company - Via Marie Curie 8, 20060 Gessate (MI) Tel : +39 02 95781111 Fax:+39 02 95 380178 www.comesterogroup.it comestero@comesterogroup.it...
