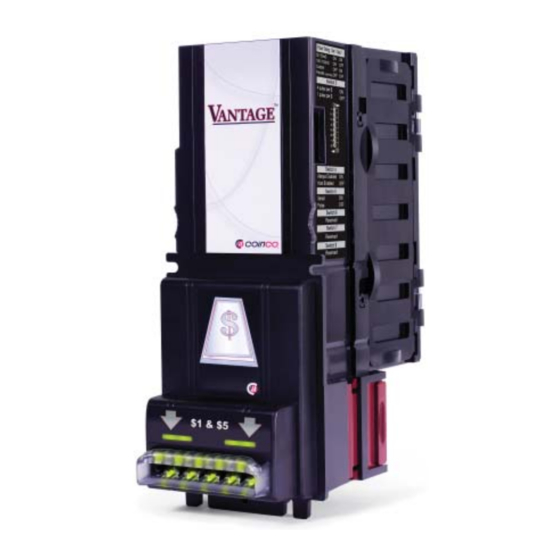

Vantage
OPERATION & SERVICE
MANUAL
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Coinco Vantage Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Suzohapp Coinco Vantage Series

Summary of Contents for Suzohapp Coinco Vantage Series

  • Page 1 Vantage OPERATION & SERVICE MANUAL...
  • Page 3 TABLE OF CONTENTS SECTION 1: GENERAL INFORMATION Introduction Naming Convention Bezel Types Vantage Components SECTION 2: INSTALLATION & SETUP Unpacking/Installing the Validator Confi guring Options Adding/Removing Coupons SECTION 3: GENERAL ACCEPTOR OPERA- TION System Operation SECTION 4: MAINTENANCE Cleaning and Maintenance SECTION 5: PARTS LIST Mainframe Assembly, Cashboxes, &...
  • Page 4 SECTION 1: GENERAL INFORMATION number and serial number whenever you call Introduction your Coinco Service Center for information or This manual contains information on installing, service. operating and maintaining Coinco Vantage™ The fi rst four digits of the bill acceptor serial Series bill acceptors.
  • Page 5 SECTION 1: GENERAL INFORMATION Vantage Naming Convention Naming Convention Naming Convention Naming Convention S p a cin g S p a cin g is fo r is fo r Type Type illustration illustration A = A m usem ent (P ulse, V end S erial) A = A m usem ent (P ulse, V end S erial) p u rp oses p u rp oses...
  • Page 6 SECTION 1: GENERAL INFORMATION Vantage Bezel Types Vantage Bezel Types Basic Basic Slimline Slimline Downstack Downstack (S ta nda rd o r M e ta l) (S ta nda rd o r M e ta l) Bill Acceptance Bill Model $5 $10 $20 $50 $100 Width x x x...
  • Page 7 SECTION 1: GENERAL INFORMATION Vantage Vantage Components Components Vantage Vantage Components Components ™ ™ ™ ™ Cash Cash Cashbox Cashbox Access Access Release Release Option Option Switches Switches Cashbox Cashbox Front Front Cover Cover Inlet Inlet Harness Harness Mask Mask Connection Connection (non-M D B )
  • Page 8 SECTION 2: INSTALLATION & SETUP Unpacking the Validator Quick Release Quick Release Quick Release Quick Release After removing the bill acceptor from the shipping Bezel Operation Bezel Operation Bezel Operation Bezel Operation carton, inspect it for possible damage. If the unit is damaged, notify the shipping company immediately.
  • Page 9 SECTION 2: INSTALLATION & SETUP With the vend price set below one dollar, Several of the confi guration setting options bear insert a one dollar bill. further defi nition: Verify credit has been established. • Coupon Acceptance: Enables or disables Check the bill box to see that the one acceptance of all user-loaded coupons.
  • Page 10 SECTION 2: INSTALLATION & SETUP Why doesn’t the $50 and $100 bill Lower Housing Lower Housing Lower Housing Lower Housing acceptance option show up in options Mode 3 for my validator? Removal Removal Removal Removal Not all options are available on all bill acceptors.
  • Page 11 SECTION 2: INSTALLATION & SETUP Configuration Examples Configuration Examples Configuration Examples Configuration Examples Add / Remove Coupons Add / Remove Coupons Diagnostic Diagnostic Bill Inlet Bill Inlet Action Action Mode Mode Example 1 Example 1 Example 1 Example 1 LEDs LEDs H o ld u n til D ia gno stic H o ld u n til D ia gno stic...
  • Page 12 SECTION 3: OPERATION level of security aganst stringing and fi shing System Operation attempts. Bill Recognition Water Removal Cycling Feature Sensors detect when a bill is inserted into the Vantage employs a patented water removal acceptor. These signal the transport motor to cycling technique.
  • Page 13 SECTION 4: MAINTENANCE Vantage™ Cleaning and Maintenance Note: Electrical power must be disconnected from the bill acceptor before performing any cleaning operations Recommended Cleaning Material A mild solution of detergent can be used for cleaning the belts, bill path and sensor lenses, as well as for general cleaning of the bill acceptor.
  • Page 14 SECTION 5: PARTS LIST MAINFRAME ASSEMBLY, CASHBOXES, & MASKS 7,8,9,10...
  • Page 15 SECTION 5: PARTS LIST ITEM # PART # DESCRIPTION NOTES 410182 410483 Mainframe Assembly - MDB Includes 409400 410182-1 410183-1 Mainframe Assembly - Amusement Includes 409400-1 & 409406-1 410035 410083 Lower Housing Assembly 410159 Front Cover - Mainframe 345-4R6 Screw Cashbox Assembly 410160 FlexStack™...
  • Page 16 SECTION 5: PARTS LIST MAINFRAME & MAIN LOGIC BOARDS ITEM # PART # DESCRIPTION NOTES 926325 Main Logic Board Insulator - 110VAC 927494 Main Logic Board Insulator - All Others 409400 Main Logic Board - MDB MDB Only 409400-1 Main Logic Board Amusement Use with 409406-1 410042 410085...
  • Page 17 SECTION 5: PARTS LIST UPPER SENSOR BOARD & UPPER HOUSING ASSEMBLY ITEM # PART # DESCRIPTION NOTES 409401 Upper Sensor Board Assembly 927230 Upper Enclosure 927011 Inlet Gear, 18 tooth 927012 Inlet Gear, 13 tooth 410036 Inlet Roller Assembly 927229 928000 Upper Housing 409413...
  • Page 18 SECTION 5: PARTS LIST LOWER HOUSING ASSEMBLY ITEM # PART # DESCRIPTION NOTES 927916 927998 Lower Housing Back Cover 927236 Flat Pinch Spring 925594 Light Pipe 171730 Pinch Roller 927045 927995 Lower Housing 927238 Inlet Roller 927933 Roller Housing 927239 Inlet Roller Retainer 927237 Inlet Coil Spring...
  • Page 19 SECTION 5: PARTS LIST CHASSIS GEAR CASE ASSEMBLY - 410170 DETAIL PARTS...
  • Page 20 ITEM # PART # DESCRIPTION NOTES 410170 Chassis Gear Case Assembly 410003 Chassis Board Assembly 410026 Motor Assembly 927205 Belt 410031 Right Scissors Assembly 410031-1 Left Scissors Assembly 410055 Push Plate Assembly 927043 Top Push Plate Shaft 927044 Bottom Push Plate Shaft 927023 Transport Drive Roller 410029...
  • Page 21 SECTION 5: PARTS LIST...
  • Page 22 SECTION 5: PARTS LIST Vantage Series - Optional Kits & Accessories D escription P art N o. Includes T ypical A pplication B rack et, labels, hardw are, and F or m ounting in w ooden 110V Adapter 410061 110V harness w ith plug am usem ent cabinets A dds outer low er side B rack et...
  • Page 23 SECTION 5: PARTS LIST Vantage Mask Inlet Decals Vantage Mask Inlet Decals Vantage Mask Inlet Decals Vantage Mask Inlet Decals Basic / Basic / Basic / Downstack Downstack Downstack Slimline Slimline Slimline Basic / Basic / Basic / Downstack Downstack Downstack Slimline Slimline...
  • Page 24 Vantage Mask Inlet Decals Vantage Mask Inlet Decals Canada Canada Vantage Mask Inlet Decals Vantage Mask Inlet Decals Canada Canada Basic Basic Slimline Slimline Basic Basic Slimline Slimline Legacy 110VAC Legacy 110VAC Part # 928520 Part # 928520 Part # 928518 Part # 928518 Part # 928514 Part # 928514...
  • Page 25 SECTION 5: PARTS LIST Vantage Decals Vantage Decals Other Other Vantage Decals Vantage Decals Other Other #927503 #927503 #928027 #928027 #927505 #927505 Vantage Decals Vantage Decals – – Upper Mask Upper Mask Vantage Decals Vantage Decals – – Upper Mask Upper Mask Slimline Slimline...
  • Page 26 SECTION 6: TECHNICAL INFORMATION Input Power and Interfaces Nominal Minimum Voltage Requirement Amps Interface Model # A m usem ent P ulse, 12W / 0.1A rm s (avg.) Idle; V end S erial 110V A C 90-135V A C ; 47-63H z 25W / 0.4A rm s (avg.) O perating;...
  • Page 27 SECTION 6: TECHNICAL INFORMATION Dimensional Drawings Basic & Downstack Bezels Basic & Downstack Bezels m m (in ch e s) m m (in ch e s)
  • Page 28 SECTION 6: TECHNICAL INFORMATION Slimline Bezel Slimline Bezel m m (in ch e s) m m (in ch e s)
  • Page 29 SECTION 6: TECHNICAL INFORMATION Block Diagram Schematic Block Diagram Schematic 409400 409400 409400 409400 Logic Board Logic Board Logic Board Logic Board 409401 409401 409401 409401 409413 H arness 409413 H arness Upper Sensor Upper Sensor Upper Sensor Upper Sensor Board Board Board...
  • Page 30 SECTION 6: TECHNICAL INFORMATION Pin 15 Pin 15 Pin 15 Pin 15 Pin30 Pin30 Pin30 Pin30 30 Pin Mating Connector 30 Pin Mating Connector R e cep ta cle H ou sin g: A M P 1 -1044 82 -3 R e cep ta cle H ou sin g: A M P 1 -1044 82 -3 R e cep ta cle P in s: A M P 10 4479 -2 R e cep ta cle P in s: A M P 10 4479 -2...
  • Page 31 SECTION 6: TECHNICAL INFORMATION Harness Connectors Harness Connectors 4 Pin 4 Pin – – 110VAC Single Price 110VAC Single Price 4 Pin 4 Pin – – 110VAC Single Price 110VAC Single Price 6 Pin 6 Pin 6 Pin 6 Pin –...
  • Page 32 SECTION 6: TECHNICAL INFORMATION...
  • Page 33 SECTION 6: TECHNICAL INFORMATION Factory Default Settings Factory Default Settings Factory Default Settings Factory Default Settings Amusement 110VAC Amusement 110VAC Amusement 110VAC Amusement 110VAC V A61 x4xU S ($1-$20) V A61 x4xU S ($1-$20) V A61 x6xU S ($1-$100) V A61 x6xU S ($1-$100) Same for both Same for both Configuration...
  • Page 34 SECTION 6: TECHNICAL INFORMATION Factory Default Settings Factory Default Settings Factory Default Settings Factory Default Settings MDB 34VDC MDB 34VDC MDB 34VDC MDB 34VDC Legacy 110VAC Legacy 110VAC V X6 3 x2xU S ($ 1 -$ 5 ) V X6 3 x2xU S ($ 1 -$ 5 ) V X6 3 x4xU S ($ 1 -$ 2 0 ) V X6 3 x4xU S ($ 1 -$ 2 0 ) Configuration...
