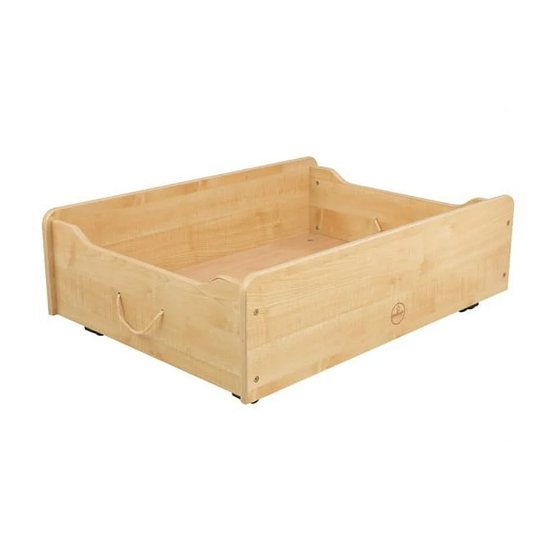

KidKraft Train Trundle 17700A Assembly Instructions

Please retain this information for future reference

HARDWARE:

PARTS LIST:

A . Cross Dowel Bolt
x 8 pieces
2 5/8 inches/66mm
1
x 2
B . Washer x 4 pieces
C . Spring Washer
x 4 pieces
D . Caster x 4 pieces
Step 3
E . Cross Dowel
Nut x 8 pieces
Allen Wrench
x 1 piece
Wrench
x 1 piece
The following tool
(not included) is required
for assembly:
Phillips screwdriver
CAUTION: Adult Assembly Required. Hardware
contains small screws with sharp points. Keep
unassembled parts out of reach of small children.

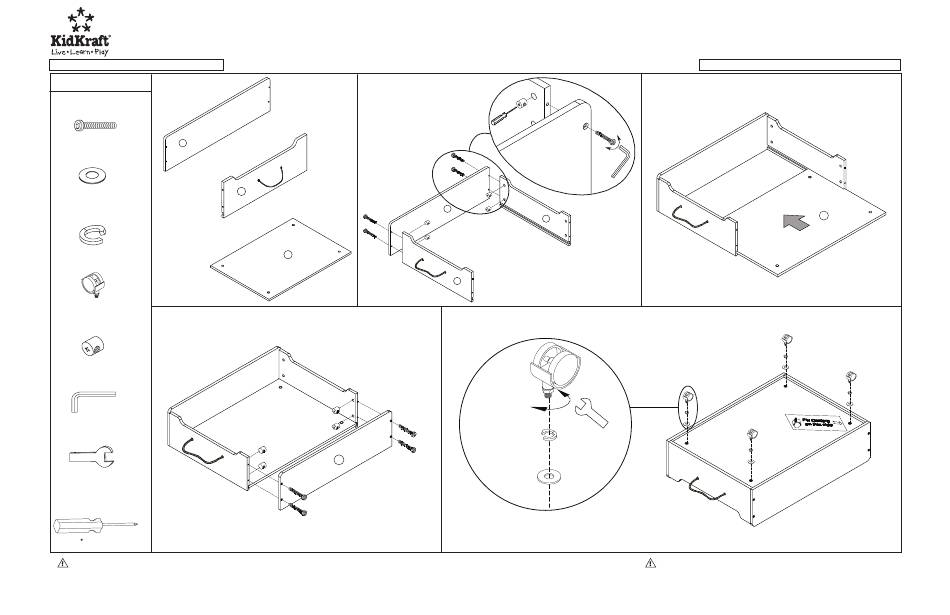

Train Trundle
Assembly Instructions
Step 1
2
x 2
A
3
E
A
E
1
A

USE AND MAINTENANCE:

-Use on level surfaces only
-Please check assembly at regular intervals, and frequently
tighten hardware if necessary. If maintenance is not carried out,
the product could cease to function properly
E
A
E
1
2
E
2
Step 4
D
C
B
Item #17700A, 17701A, 17740A, 17751A
To order replacement parts, please visit www.kidkraft.com
Step 2
A
WARNING: CHOKING HAZARD
Small parts and sharp points, not
suitable for children under 3 years.
3
Customer Service
1-800-933-0771
www.kidkraft.com
1
