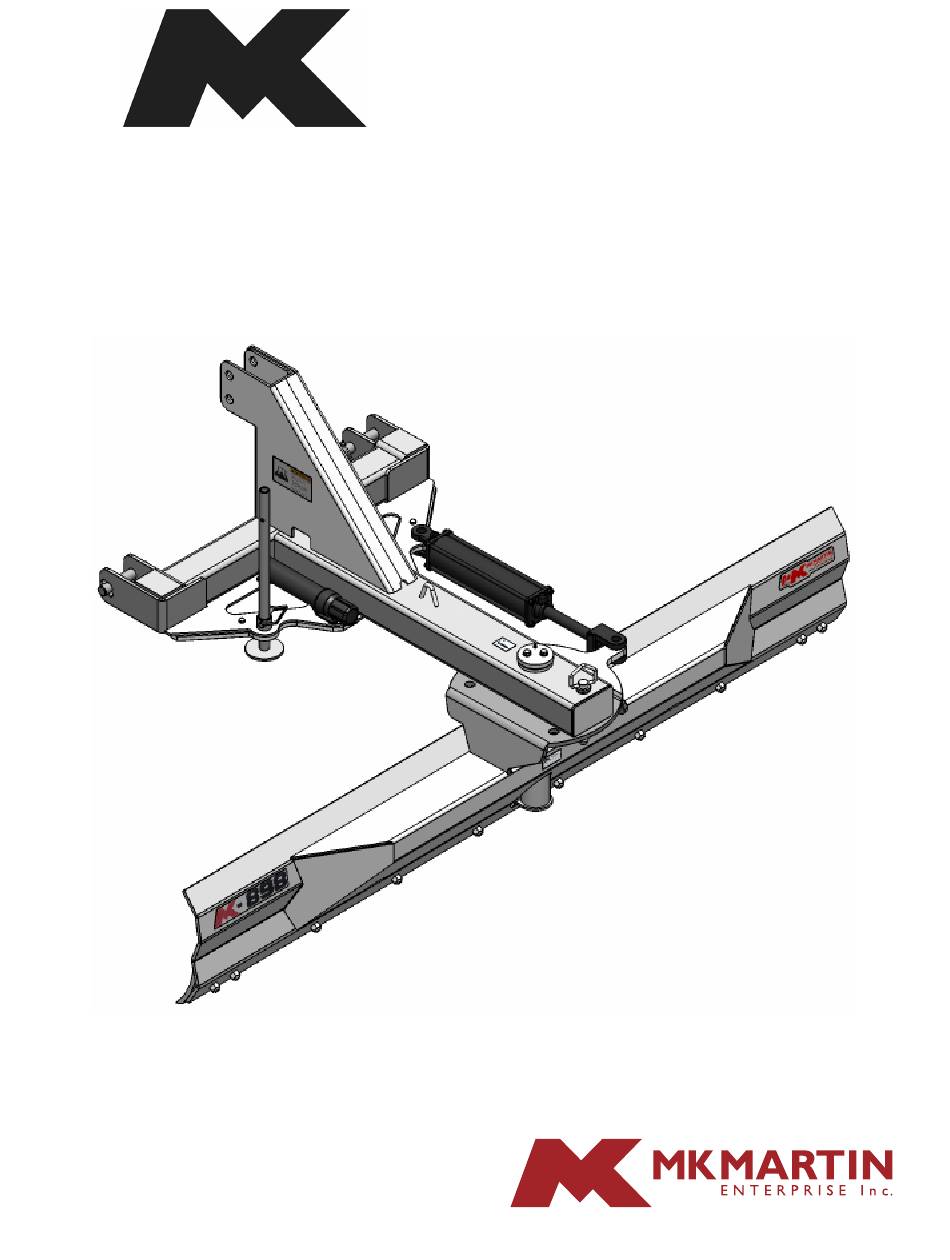

- Page 1 MK 88-98 Series Grader Blade MK588; MK688; MK788; MK798; MK898 Operator’s / Parts Manual MK Martin Enterprise Inc. 3950 Steffl er Rd Elmira, ON, Canada N3B 2Z3 Tel: 519-664-2752 Toll Free: 1-855-664-2752 Fax: 519-664-3695 E-mail: sales@mkmartin.ca www.mkmartin.ca Rev:18-1...
-
Page 3: Table Of Contents
Table of Contents • Warranty ---------------------------------------------------------------------------------------------- • Registration ------------------------------------------------------------------------------------------ • Safety -------------------------------------------------------------------------------------------------- • Decal Location -------------------------------------------------------------------------------------- • Operation --------------------------------------------------------------------------------------------- • Parts - 88 Series ------------------------------------------------------------------------------------ • Parts - 98 Series ------------------------------------------------------------------------------------ • Care and Maintenance ---------------------------------------------------------------------------- • Bolt Torque -------------------------------------------------------------------------------------------... -
Page 4: Warranty
Warranty coverage is null and void unless the Warranty Registration form has been completed in full and is on fi le at MK Martin Enterprise Inc. Warranty begins at the time of customer delivery and is activated upon Warranty Registration receipt at MK Martin Enterprise Inc. - Page 5 M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3 --------------------------------------------------------------------------------------------------------------------- Purchaser’s warranty protection is valid only when this completed form or a copy of this form is on fi le at M K Martin Enterprise Inc. By fi lling out this form the purchaser has acknowledged delivery of equipment and owner’s / operator’s manual and has accepted the condition of the equipment.
- Page 6 Warranty Registration Please Cut and Return to M K Martin Enterprise Inc Fold And Tape here Do not tape all edges or use staples Fold Here ------------------------------------------------------------------------------------------------------------------------- Postage Stamp M K Martin Enterprise Inc 3950 Steffl er Rd Elmira ON CA N3B 2Z3...
-
Page 7: Safety
Safety Take Note! This safety symbol is found throughout this manual to call your attention to instruc- tions involving yourself and others working around the machine. • Failure to follow these instructions can result in injury or death This symbol means -- Attention! -- Become Alert! -- Your Safety is involved! - Page 8 Safety -- It’s in your interest! Safety Guidelines Safety of the operator is one of our main concerns, however it is up to you, the opera- tor to practice caution and safety! To avoid personal injury, study the following precautions and insist that those working with you follow them.
-
Page 9: Decal Location
DATE DRAWN February-09-16 10:16:34 AM BEND 52815 TWO PLACE DECIMAL 0.01" Config ID MATERIAL THREE PLACE DECIMAL 0.002" 52815 MK Series GB 5 Ft 2015 ITEM ID. DO NOT SCALE DRAWING DESCRIPTION Model 181.39 THIRD ANGLE PROJECTION Width Height Length Weight(lbs.) - Page 10 Operating The 88 series blade is designed for Cat#1 3ph and is adaptable for “Quick Hitch” The 98 series blade is designed for Cat#2 3ph and is adaptable for “Quick Hitch” The M K Grader Blade has 5 manual pinned stops as standard angle adjustment, the blade can be rotated180°...
- Page 11 52815 TWO PLACE DECIMAL 0.01" Config ID MATERIAL THREE PLACE DECIMAL 0.002" 52787 5’ Cutting Edge 52815 MK Series GB 5 Ft 2015 ITEM ID. DO NOT SCALE DRAWING DESCRIPTION Model 201.24 THIRD ANGLE PROJECTION 53089 6’ Cutting Edge Width...
- Page 12 M K Grader Blade 98 Series Item # Part # Description 798 Qty 898 Qty 22339 7’ Mold board 22059 8’ Mold board Folder S:\Solidworks\Solidworks_Dennis\Grader Blade\MK-Series\211HRB-A001\ S:\Solidworks\Solidworks_Dennis\Grader Blade\MK-Series\211HRB-A001\ 22061 DWG. NO. 5/8 Nut DATE DRAWN July-21-11 11:17:04 AM 22061 Config MATERIAL MK HD 8FT Grader Blade Assy SIZE...
-
Page 13: Care And Maintenance
MK Grader Blade Care and Maintenance After 1st 5 hours check all nuts and bolts and retighten if required. At 10 hours check all nuts and bolts and re-tighten if required. Repeat at 5 hour intervals until all bolts have seated and stay tight. -
Page 14: Bolt Torque
Bolt Torque As used on this machine • Bolt torque table shown below gives torque values for various bolts used. • This chart is for non-lubricated threads. • Replace with same strength bolt. Torque Specifi cations. Torque values are identifi ed by their head markings. Diameter SAE 2 SAE 5... - Page 16 MK Martin Enterprise Inc. 3950 Steffl er Rd Elmira, ON, Canada N3B 2Z3 Tel: 519-664-2752 Toll Free: 1-855-664-2752 Fax: 519-664-3695 E-mail: sales@mkmartin.ca www.mkmartin.ca...
