- Page 1 Jump Starter & Air Compressor JS-5 USER MANUAL PJSTAR5-V1.0...
-
Page 2: Packing List

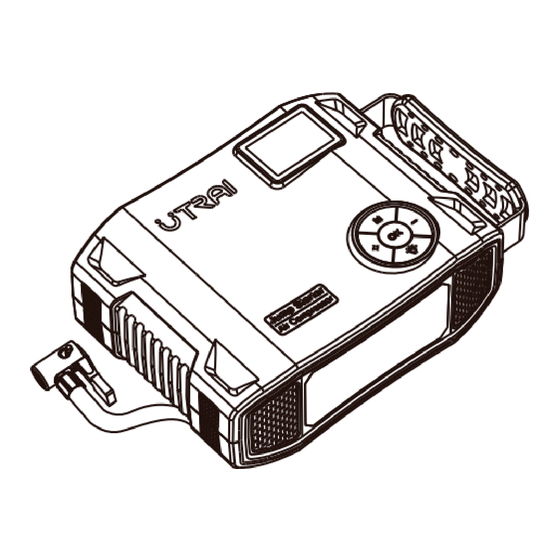

Packing List English Jump Starter & DC Cigarette Smart Clamps Air Compressor Lighter Adapter USB To Valve Adapter x 3 User Manual USB-C Cable Carrying Case... - Page 3 Layout...
- Page 4 Function Operation Show the remaining power and check air pressure LCD Display Screen of the connected tire OK Button Turn on / off the device or the air compressor Switch the inflating modes and the unit of output M Button air pressure + Button Increase the air pressure value...
-
Page 5: Specifications
Specifications Battery Capacity 99.9Wh Jump Start Output DC Output 12V-16V / 10A USB-C Input 5V / 3A, 9V / 2A USB Output 5V / 2.4A Charging Time 4-6 hours Unite Size (L*W*H) 201mm*153.5mm*77mm Air Compressor Maximum Air Pressure 150PSI... - Page 6 Operation Guide Charging Your Jump Starter • At Home : 1. Plug the USB cable into computer or any USB wall adaptor(not included). 2. Connect the USB-C port into the Jump Starter. • In Car : 1. Plug the car adaptor (not included) into the socket. 2.
- Page 7 By owning a Jump Starter, you have everything you need to jump start a vehicle — no need to wait for help, JS-5 to the rescue! We know you’re excited, but before jumping your vehicle, please be sure to take some precautionary steps: •...
-
Page 8: Jump Starting A Vehicle
• When connecting smart clamps to the battery terminals, ensure the copper teeth on each side of the clamp make good contact with the terminal. The better the connection, the easier it will be to start your vehicle. NOTE: When adjusting the clamps please be sure to disconnect your Jump Starter first. - Page 9 Step 3: Start the vehicle in 60 seconds when the green indicator light is always on and the clamp makes a sound every 5 seconds. If the engine does not start on the first try, disconnect it from the car battery and wait for at least 20 seconds before reconnecting.
- Page 10 Please read safety instructions carefully before use: • For safety reasons, the device should be KEPT OUT OF REACH OF CHILDREN. • Inspect the JS-5 Jump Starter before each inflates, ensuring the valve and the air hose are not damaged.
- Page 11 Step 3: Remove the dust cap from the tire valve. Carefully remove the air hose from JS-5 and connect it securely onto the tire valve, then press down the handle to fix the air hose. Once attached, your tire pressure will be displayed on the LCD display.
- Page 12 Step 4: Press and hold the OK button to start inflating. Once the preset pressure has been reached, the device will automatically shut itself off. Just press / press and hold the OK button to manually stop inflating. Then press the OK button the turn off the device completely, disconnect the air hose and replace the dust cap you have taken off.
- Page 13 In any of the following situations, the smart clamp turns protection on. LED Indicator of Situation The Smart Battery Clamp The red and green 1. Ready to work. 2. The jump starter is connected to the car more than 60 indicators flash seconds.
- Page 14 Troubleshooting BAR KPA kg/cm LCD Display Problem Instruction Internal sensor error Please contact our customer service High temperature Please wait for it to cool protection down then press the button to continue Overload / short circuit Please disconnect the protection external device The “...
-
Page 15: Important Safety Information
Important Safety Information WARNING: Read all instructions and warnings prior to using this product. Improper use of this product may result in product damage, excess heat, toxic fumes, fire or explosion, for which Corporation is not responsible. • Always read all instructions carefully before using your Jump Starter. •...
Need help?
Do you have a question about the JS-5 and is the answer not in the manual?
Questions and answers
Что значит ошибка Е01-"внутренняя ошибка датчика"?
Error E01 on the UTRAI JS-5 indicates an "internal sensor error." This means there is a malfunction with one of the device's internal sensors. The recommended action is to contact customer service for assistance.
This answer is automatically generated
Como se carga el arrancador
To charge the UTRAI JS-5 jump starter:
1. Using a Car Adapter (not included):
- Plug the car adapter into the car's socket.
- Connect the USB-C port to the jump starter.
2. Using a USB Cable:
- Plug the USB cable into the USB output port of the jump starter.
- Connect it to a power source.
Note: It is recommended to recharge the jump starter every 3-4 months to maintain battery efficiency and prolong its service life, even if not in use.
This answer is automatically generated
