Sealey AK293.V2 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. SAFETY
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using the
‰
torch.
Familiarise yourself with the application and limitations, as well as the potential hazards, peculiar to the torch.
9
Butane gas is highly flammable, so keep an appropriate fire extinguisher close to hand.
9
WARNING! Use and handle the butane gas (lighter fuel) in accordance with the instructions supplied with the fuel.
‰
Keep the work area clean, uncluttered and ensure there is adequate ventilation and lighting.
9
Keep children and unauthorised persons away from the working area.
9
Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery, and contain and/or tie back long hair.
9
Keep hands and body clear of the torch head when operating as it becomes very hot.
9
Secure unstable workpiece with a clamp, vice or other adequate holding device.
9
DO NOT get the torch wet or attempt to cool the torch with water.
8
DO NOT use the torch in an area where paint fumes, solvents or flammable liquids pose a potential hazard. Keep flammable material
8
away from the torch when operating. Flammable waste, such as wiping or cleaning rags, must be placed in a closed metal container and
disposed of correctly.
DO NOT use the torch for any purpose other than for which it is designed.
8
DO NOT use accessories other than those supplied with the torch.
8
DO NOT point the torch at yourself, others, or animals.
8
DO NOT operate the torch when you are tired, or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT allow untrained persons or children to operate the torch.
8
DO NOT touch the workpiece close to the heated area as it will be very hot. Allow to cool.
8
WARNING! Failure to use the torch correctly may result in fire, damage and/or personal injury.
‰
WARNING! Always point the torch away from the eyes and body when igniting and during operation.
‰
WARNING! Ensure the Adjustment Knob is firmly closed and the flame completely extinguished after use.
‰
DO NOT hold the workpiece by hand. Use clamps or a vice (not included) to secure the workpiece.
8
DO NOT operate the torch if any parts are damaged or missing as this may cause failure and/or possible personal injury.
8
DO NOT use this torch for longer than one hour continuously.
8
DO NOT leave the torch operating whilst unattended.
8
DO NOT leave the torch, after use, until it has cooled.
8
WARNING! DO NOT touch the torch head during, or immediately after, use. Allow the torch to cool naturally before handling it or returning
‰
it to its storage case.
When not in use ensure the gas supply is turned off.
9
When work is complete, allow the torch to cool. Clean the torch and accessories, return to case and store in a safe, dry childproof
9
location.
DO NOT store in direct sunlight or where the temperature could exceed 104°F/40°C
8
▲
DANGER! The flame is invisible in sunlight - be extremely cautious.
2. INTRODUCTION
Piezoelectric ignition with ceramic burner head for simple operation
and long-life. 1300°C Burner flame adjustable from 12 to 35mm.
Includes bench stand for hands-free operation. Standard fill gives
approximately 1 hour continuous operation. Powered by Butane
(lighter fuel).
© Jack Sealey Limited

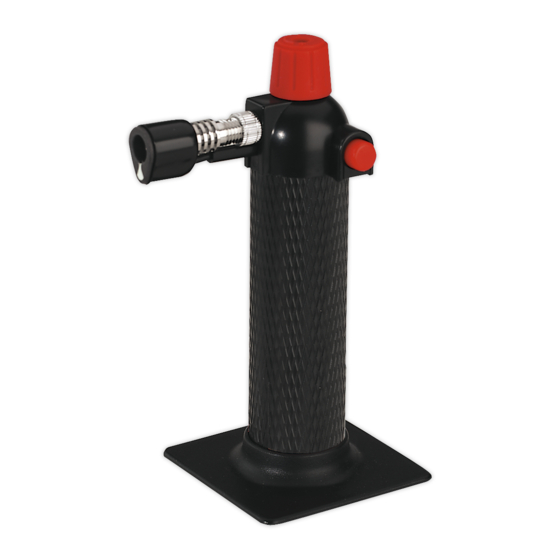

MICRO BUTANE SOLDERING TORCH
AK293.V2
MODEL NO:
Flame Guard
AK293.V2
Original Language Version
Air Control Sleeve
Ignition Pin
Stand Base
AK293.V2
Adjustment Knob
Ignition Button
Gas Tank
Filling Valve
(underneath)
Issue 1 10/05/23
