Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instructions protection
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
‰
equipment, make sure you know where the nearest fire extinguisher is.
WARNING! Always wear approved eye/ face protection when operating the torch.
‰
WARNING! DO NOT use the torch if you notice that it is damaged or if there could be a gas leak from it.
‰
WARNING! Butane gas is extremely flammable, handle with care.
‰
WARNING! Always point the torch away from the eyes and body when igniting and during operation.
‰
WARNING! DO NOT put the torch down when it is lit, DO NOT leave it unattended.
‰
WARNING! The flame is not easily visible in bright daylight.
‰
WARNING! Ensure the flame is completely extinguished after use. DO NOT use water to cool the torch down.
‰
WARNING! Only use in a well ventilated area.
‰
DO NOT use the torch in an area where paint fumes, solvents or other flammable solids, liquids or gases pose a potential hazard.
8
Keep flammable material away from the torch when operating.
DO NOT operate the torch when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
DO NOT hold any workpiece by hand.
8
DO NOT touch the workpiece close to the heated area as it will be very hot. Allow to cool.
8
DO NOT operate the torch if it is damaged as this may cause failure and/or possible personal injury.
8
DO NOT touch the top of the torch during or immediately after use, as it will be very hot. Allow to cool.
8
DO NOT allow children to operate the torch.
8
After use, allow the torch to cool before storing it.
9
When not in use, store away from direct sunlight in a safe, dry, childproof location.
9
DO NOT store at over 40°C, such as in a car in hot weather.
8
DO NOT modify the appliance.
8
The appliance should be operated away from flammable materials
9
When filled, it will contain flammable gas under pressure
9
DO NOT puncture or put in fire.
8
Make sure the flame is off and the unit cool before refilling.
9
DO NOT keep lit for more than 5 minutes.
8
Allow the torch to cool down before storage. Store the appliance in well ventilated area and ensure the flame is off and the unit cool
9
after use.
Use only Sealey original spare parts.
9
DO NOT use torch as a cigarette lighter.
8
Be extra careful when using the torch outdoors on sunny or windy days. Wind may carry the torch's heat back toward you or other
9
areas which are not intended to be heated.
Always check to make sure no unintended parts or materials are being heated.
9
Whenever there is a possibility that unintended material has been heated, wait at least two hours before leaving the area.
9
DO NOT inhale soldering fumes.
8
Follow refilling procedure to avoid serious accidents.
9
2. INTRODUCTION

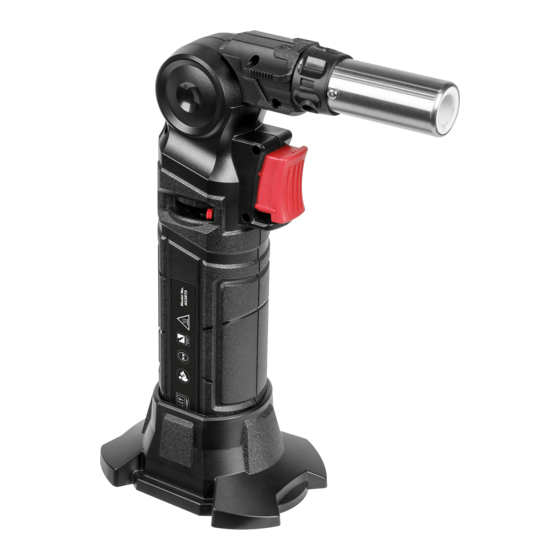

Piezoelectric ignition with anti-flare burner, safety lock and continuous flame switch. Fitted with three position indexing head as well as
magnetic stand for hands-free operation. Adjustable flame with a maximum temperature of 1300°C. 45-60 Minute run time with 35ml fuel
capacity. Powered by butane (lighter fuel).
3. SPECIFICATION
MODEL NO: .............................................................AK2972
Height: ....................................................................... 210mm
© Jack Sealey Limited
SOLDERING TORCH INDEXING BUTANE
HEAVY-DUTY
MODEL NO:
Wear protective Hot surfaces
gloves
Original Language Version
AK2972
AK2972 Issue 1 21/09/2022
