EZPull TX-8C/VR User Manual

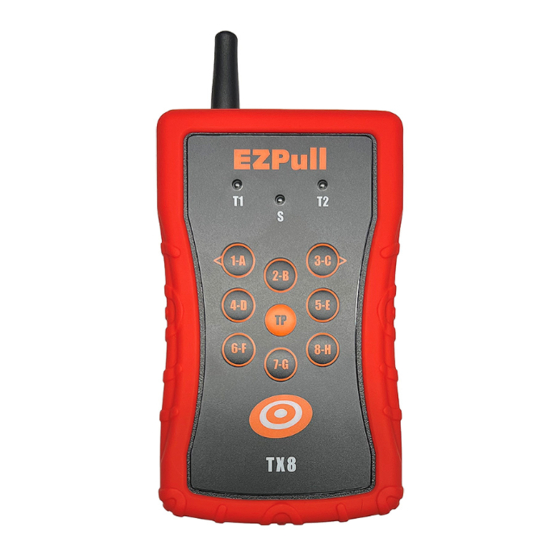

Turn On and OFF

If front panel keys are not responsive, the unit is
off. Press the Orange ON/OFF button on the top
panel to turn ON. All three LED's should glow
momentarily.
To turn off, press and hold the Orange ON/OFF
button on the top panel. The LEDs will alternate
quickly. Keep holding the button until all LEDs are
off. The front panel keys are disabled.

Voice Release Mode

Plug the microphone in the socket on the top
panel.

With Gunshot Detection

In this mode, the system detects your gunshots to
throw report pairs and to automatically repeat
target(s) selection in case of gun malfunction.
If gunshot(s) corresponding with the number of
targets selected are not detected within 6
seconds, the unit reverts to the first target and
you can call again without pressing any key.
1. Singles: press and release any key 1-8. The
"T1" LED lights up. When the "S" LED starts
blinking, call "Pull" to release. If the call is not
picked up within 16 seconds, the selection is
cancelled.
2. True Pair: Press the True Pair (TP) key. The
"S" LED will flash rapidly. Select the first traps
using keys 1-8. The "T1" LED lights up and the
"S" LED blinks slower. Select the second trap
using keys 1-8. The "T2" LED lights up and the
"S" LED blinks very slowly indicating both
targets selected. You have 16 seconds to call
"Pull".
It is also possible to select a True Pair by
pressing two keys simultaneously.
3. Rafael Pair: Repeat steps from True Pair but
select the same trap twice. Call "Pull" to
release the first target. The second target will
automatically follow in approximately 2.4
seconds.
4. Report Pair: Select the first trap. The "T1" LED
lights up. Immediately press the TP key. The
"S" LED will flash rapidly. Select the second
trap. The "S" LED and "T2" LED will alternate
slowly indicating the system is ready to throw
the first target on your call. Call "Pull" to
release the first target. Your first gunshot will
release the second target.
V_1.1 05/2022
E Z P u l l T X -
E Z P u l l T X -
8 C / V R
U s e
8 C / V R U s e

With Delayed Pair

In this mode, the system does not detect your
gunshots. Report pairs are time delayed following
pairs.
5. Singles, True Pair and Rafael Pair are the
same as in sections 1 to 3.
6. Report Pair: Select the first trap. The "T1" LED
lights up. Immediately press the TP key. The
"S" LED will flash rapidly. Select the second
trap. The "S" LED and "T2" LED will alternate
slowly indicating the system is ready to throw
the first target on your call. Call "Pull" to
release the first target. The "following pair
delay" can be set between 1 and 4 seconds.
The second target will be released after the
"following pair delay".
r G u i d e
r G u i d e
Page 1
