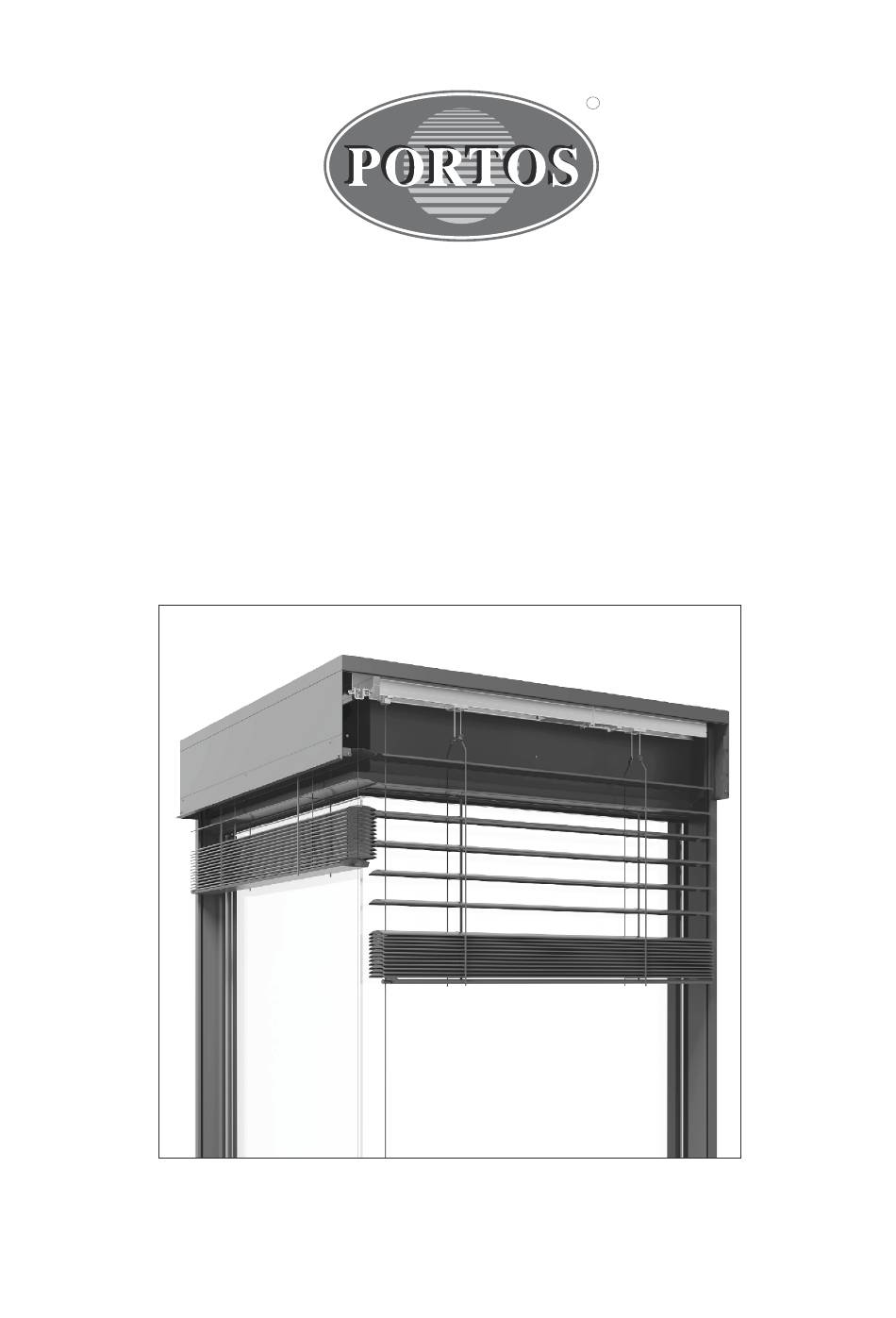

- Page 1 INSTRUCTIONS FOR INSTALLATION AND OPERATION OF THE EXTERNAL BLIND ® ZF3000 -BX - CORNER VERSION -...
- Page 2 Directly before installation, unpack the blind and check if there are all elements necessary for its installation. 1. Tools needed to install the external blind. The PORTOS company does not provide screws, dowels, cables for placing the electrical installation. INSTALLATION WITH THE CORNER GUIDE/ WITH A GUIDING CORD 2.
- Page 3 4. Prepare the guides - screw the bottom plugs to the guides 5. Fasten the guides to the window frame with appropriate using 3x16 screws. screws - minimum three per side. (The PORTOS company offers guide drilling free of charge). 6. Before installation of the box, the inspection covers need 7.
- Page 4 15. Close the top rail handles and tighten the screws (1), the gap 15a. Close the top rail handles and tighten the screws. between the end of the slat and F-FBR-030, F-FBR-040 guide should be 1 cm (2). INSTALLATION OF ZF3000-BX EXTERNAL BLINDS...
- Page 5 19. Prepare the guides screwing the guide end caps in their 19a. Screw the previously prepared top part of the cord handle so bottom part . that it is in one vertical line with the holes in the slat. INSTALLATION OF ZF3000-BX EXTERNAL BLINDS...
- Page 6 (the thickness of the corner profile drill, then screw the insert to the guide with a 2.5x6 mm must be subtracted) and the centre of the guide channel screw. F-FBR-030 is 83 mm, F-FBR-040 - 103 mm. INSTALLATION OF ZF3000-BX EXTERNAL BLINDS...
- Page 7 27. Insert the second inspection cover. 28. Drill holes in the corner with a ø 4mm drill, then use 4x8 rivets. 29. After screwing the guides, insert the covering end caps into the holes. INSTALLATION OF ZF3000-BX EXTERNAL BLINDS...
- Page 8 INSTRUCTIONS FOR OPERATION OF THE EXTERNAL BLIND 1. Drive for cardan crank. The operation of the crank lifting mechanism requires special caution and skills because the gear used allows for obtaining large forces that may damage the elements of the external blind. Therefore, stop turning the crank when you feel resistance or notice that the blind curtain has stopped during lifting or lowering.
- Page 9 2. Drive for the motor. Press the key of the remote/ switch with the appropriate marking of the blind movement direction (up/ down). At this moment the blind will start lifting or lowering. To stop the motor operation, press the MY button on the remote (in the case of a switch, release the key or press the key with the opposite direction).
- Page 10 8. Do not use the product with visible signs of damage or wear of the electrical wiring. Zalecenia: Żaluzja zewnętrzna PORTOS jest budowlanym elementem otworowym stanowiącym dodatkowe zabezpieczenie zamkniętego otworu okiennego lub drzwiowego. W przypadku montażu w innym otworze żaluzja nie podlega gwarancji.
- Page 11 WARNING - FOLLOWING THESE INSTRUCTIONS IS IMPORTANT FOR THE SAFETY OF PERSONS. KEEP THESE INSTRUCTIONS PORTOS TR7 spółka z ograniczoną odpowiedzialnością s. k. PN-EN 13659 All of the certificates of the useful properties are available on the website www.portos.company...
