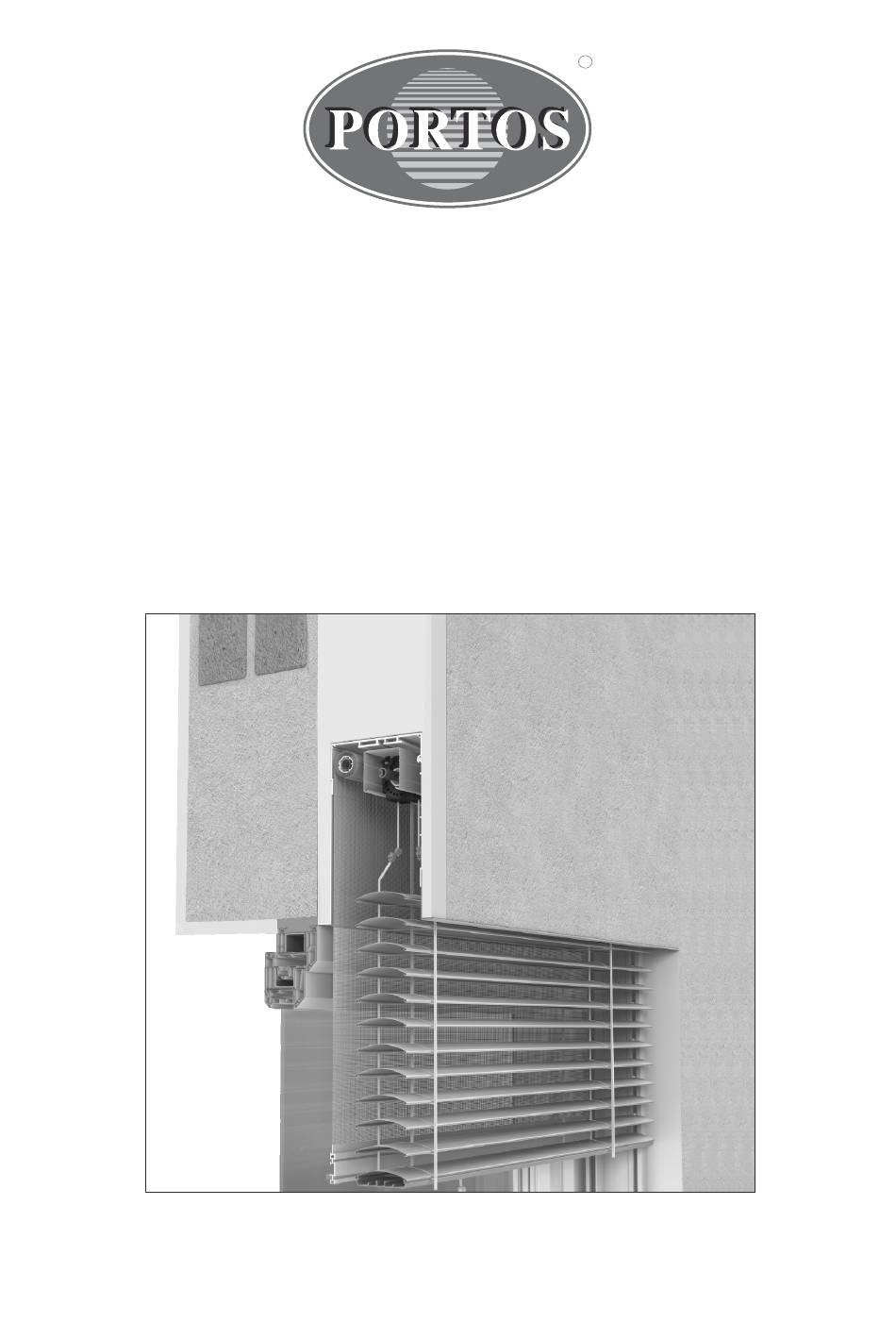

- Page 1 INSTRUCTIONS FOR INSTALLATION AND OPERATION OF THE EXTERNAL BLIND ® ZF3000 -BX...
- Page 2 ® ZF3000 -BX BLIND INSTALLATION TYPES A INSTALLATION TYPE - flush-mounted B INSTALLATION TYPE - flush-mounted with a spacer C INSTALLATION TYPE - on the facade (box 250) D INSTALLATION TYPE - on the facade with a spacer (box 250)
- Page 3 Directly before installation, unpack the blind and check if there are all elements necessary for its installation. 1. Tools needed to install the external blind. The PORTOS company does not provide screws, dowels, cables for placing the electrical installation. INSTALLATION WITH GUIDES 2.
- Page 4 5. Fasten the guides to the window frame with appropriate using 3x16 screws. Break out a part of the side wall in the screws - minimum three per side. (The PORTOS company plug of the guide with a mosquito net, as shown in Figure 1.
- Page 5 2 mm Allen key and set them at the appropriate height. INSTALLATION OF ZF3000-BX EXTERNAL BLINDS...
- Page 6 Remove the mechanism, then drill holes for the dowels. 23. Tighten the screws fastening the inspection cover. 22. Check the correct operation of the blind by lowering and lifting it several times. INSTALLATION OF ZF3000-BX EXTERNAL BLINDS...
- Page 7 24. After screwing the guides, insert the covering end caps 25. View of the ZF3000-BX external blind installed. into the holes.
- Page 8 INSTRUCTIONS FOR OPERATION OF THE EXTERNAL BLIND 1. Drive for cardan crank. The operation of the crank lifting mechanism requires special caution and skills because the gear used allows for obtaining large forces that may damage the elements of the external blind. Therefore, stop turning the crank when you feel resistance or notice that the blind curtain has stopped during lifting or lowering.
- Page 9 Emergency situations: 1. It should be noted that in winter during strong frosts, do not leave the blind partially lifted when opening the window. The difference in temperatures causes the water vapor to deposit on the blind and consequently its subsequent freezing. Therefore, before opening the window, the blind slats should be fully lifted.
- Page 10 WARNING - FOLLOWING THESE INSTRUCTIONS IS IMPORTANT FOR THE SAFETY OF PERSONS. KEEP THESE INSTRUCTIONS PORTOS TR7 spółka z ograniczoną odpowiedzialnością s. k. PN-EN 13659 All of the certificates of the useful properties are available on the website www.portos.company...
