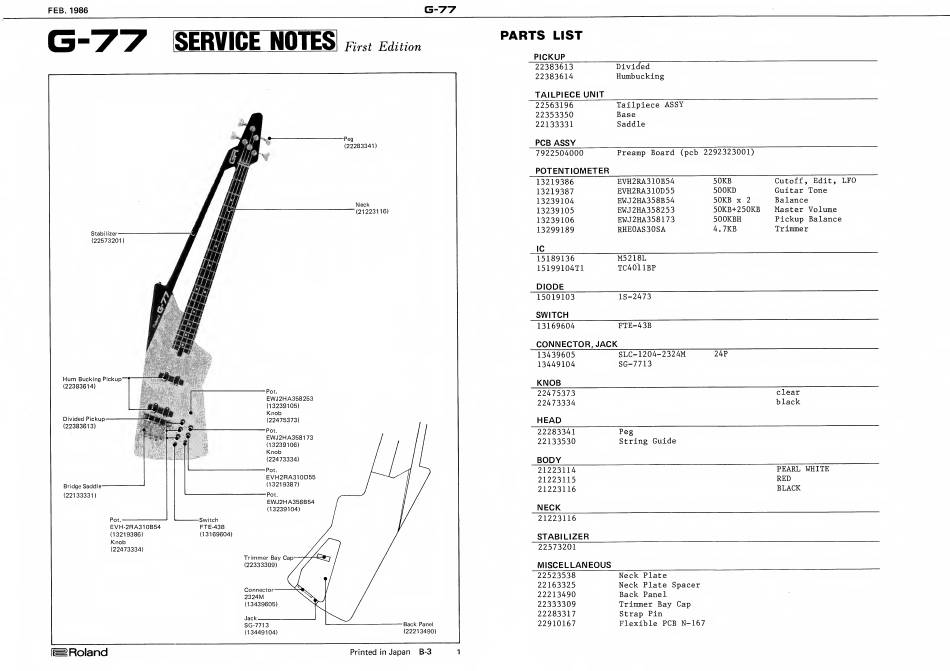

Roland G-77 Service Notes

FEB. 1986
G-TT
C3-
/ /
SERVICE
NOTES
First
Edition
Stabilizer
(22573201
-Peg
(22283341!
Neck
(21223116)
Hum
Bucking Pickup'
(22383614)
Divided Pickup-
(22383613)
11
^
Bridge Saddle-
(22133331)
Pot.
EVH-2RA310B54
(13219386)
Knob
(22473334)
-Switch
FTE-43B
(13169604)
-Pot.
EWJ2HA358253
(13239105)
Knob
(22475373)
Pot.
EWJ2HA358173
(13239106)
Knob
(22473334)
-Pot.
EVH2RA310D55
(13219387)
Pot.
EWJ2HA358B54
(13239104)
Trimmer Bay Cap
(22333309)
Connector
2324M
(13439605)
Jack
SG-7713
(13449104)
Back Panel
(22213490)
PARTS
LIST
PICKUP
22383613
22383614
TAILPIECE UNIT
Divicfed
Humbucking
22563196 Tailpiece ASSY
22353350
Base
22133331
Saddle
PCB
ASSY
7922504000
Preamp Board
(pcb
2292323001)
POTENTIOMETER
13219386
EVH2RA310B54 50KB
Cutoff, Edit, LFO
13219387
EVH2RA310D55
500KD Guitar Tone
13239104
EWJ2HA358B54 50KB X
2
Balance
13239105
EWJ2HA358253
50KB+250KB Master Volume
13239106
EWJ2HA358173 500KBH Pickup Balance
13299189
RHE0AS30SA
4.7KB Trimmer
1C
15189136 M5218L
15199104T1
TC40llBP
DIODE
15019103
lS-2473
SWITCH
13169604
FTE-43B
CONNECTOR, JACK
13439605
SLC-1204-2324M
24P
13449104
SG-7713
KNOB
22475373
clear
22473334
black
HEAD
22283341 Peg
22133530 String Guide
BODY
21223114
PEARL WHITE
21223115
RED
21223116
BLACK
NECK
21223116
STABILIZER
22573201
MISCELLANEOUS
22523538 Neck Plate
22163325
Neck Plate Spacer
22213490 Back Panel
22333309 Trimmer Bay Gap
22283317 Strap Pin
22910167 Flexible PCB N-167
(^Roland
Printed in
Japan B-3
