Veracity HIGHWIRE POWERSTAR BASE 4 LINKLOCK VHW-HWPS-B4-LL Quick Start

PRODUCT DIMENSIONS
110 mm
121.1 mm
RoHS
Veracity UK Ltd Prestwick International Aerospace Park, 4 Dow Road, Prestwick, KA9 2TU. UK
Veracity's Authorised Representative in the EU (as required by EU law for CE marked goods)
is: Comply Express Unipessoal Limitada, StartUp Madeira, EV141, Campus da Penteada,
9020 105 Funchal, Portugal.
© Veracity UK Ltd 2022 ADNM DV1.5EN HIGHWIRE Powerstar Base 4 Linklock is a registered trademark of
Veracity UK Ltd
05
CONNECTIONS AND LEDS
LOCATION POE LED FUNCTION GREEN
COAX LINK Coax data Blink = No link to camera
A
ACTIVITY connection On = 100Base-TX to camera
Flash = 100Base-TX activity
B
COAX POE POE over On = Device detected
(Power) coax status
4 x BNC connectors. Connect to any 75 ohm coaxial cable.
A
B C D
A B
LED and will both flash Red when in LINKLOCK protected
mode. To Arm the device the ARM/RESET input should be triggered.
ETHERNET LED FUNCTION
RJ45 Yellow On = Link
C
Blink = Activity
D RJ45 Green On = Power on
06
CONNECTIONS AND LEDS
ORANGE RED
Blink = 10Base-T link to camera On = Data rate <100%
Flash = 10Base-T activity Cable distance at limit
Flash = Linklock protected
On = Approaching power limit On = Power limit reached
Flash = Short circuit. Check Flash = LINKLOCK protected
for cable faults or incompatible mode. To Arm the device the
equipment ARM/RESET input should be
triggered.
1 2 3
6
4
5
57V Power Supply Options | Connect to either option 1 OR option 2
SFP LED OPERATION
FUNCTIONS
1 Top Red = No module inserted
57V DC Power
Green = Device inserted
4
2
57V DC Power
3
SFP Module
Bottom Off = No module inserted
Red = No device link
4
SFP Top LED
5
detected
5
SFP Bottom LED
Green = Link detected
6
LINKLOCK Pins
07
VHW-HWPS-B4-LL
QUICKSTART ADDENDUM

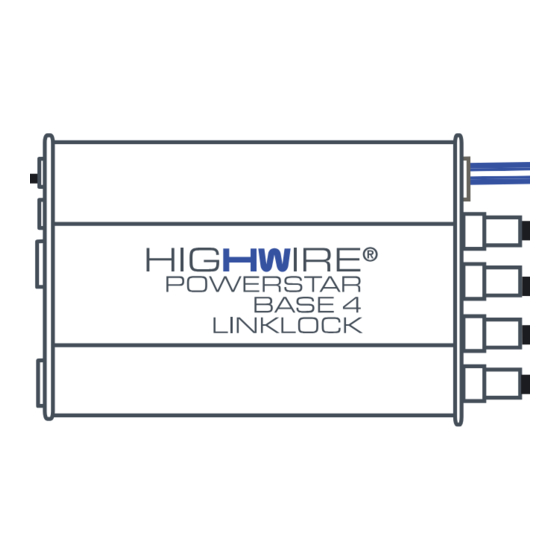

TAMPER-PROOF ETHERNET AND POE OVER COAX
HW
HIG IRE
®
POWERSTAR BASE 4
LINKLOCK
