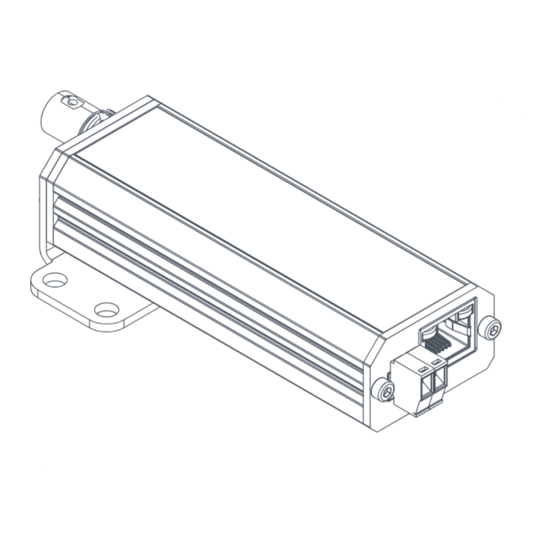

Veracity HIGHWIRE LONGSTAR VLS-1P-BC Quick Start Manual

SURGE PROTECTION FCC CERTIFICATION
These devices comply with Part 15 of the FCC Rules.
Surge Protection
Operation is subject to the following two conditions: (1)
All Veracity products have been independently tested to verify these devices may not cause harmful interference, and
their resilience to the stringent immunity levels of international (2) these devices must accept any interference received,
standards. Users should note that no electronic equipment can including interference that may cause undesired operation.
be guaranteed to be completely protected at levels beyond the
defined standard; therefore product warranty cannot include
RADIO AND TELEVISION INTERFERENCE
damage to products which has been caused by surges
exceeding those of the standards specified, for example NOTE: This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15 of the FCC
lightning strike activity.
rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
It is the user's responsibility to implement relevant surge
operated in a commercial environment.
protection measures, as appropriate to the installation.
This may include the fitting of additional surge protection
This equipment generates, uses and can radiate radio frequency
devices where required.
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be
required to correct the interference at their own expense.
Veracity UK Ltd
Prestwick International Aerospace Park, 4 Dow Road,
Prestwick, KA9 2TU. UK
Veracity's Authorised Representative in the EU (as required by
EU law for CE marked goods) is: Comply Express Unipessoal
Limitada, StartUp Madeira, EV141, Campus da Penteada,
© Veracity UK Ltd 2021 QSG DV1.5 EN
9020 105 Funchal, Portugal.
HIGHWIRE LONGSTAR is a registered trademark of Veracity UK Ltd
CONNECTIONS & LEDS CONNECTIONS & LEDS
GREEN LED
YELLOW LED
BNC coaxial connector for Veracity 57V DC
connection to any 75ohm Power Supply
coaxial cable
LED FUNCTION LED
Green RJ45 Green
Blink = Power good, no link detected On =
Rapid blink = Establishing coax link
Flash = 10Base-T link established RJ45 Yellow
On = 100Base-TX link established On =
Yellow Blink off =
On = Coax link established
Blink off = Network activity on coax link
YELLOW LED GREEN LED
RJ45 copper Ethernet
connector (speed will
match coax speed)
FUNCTION
Power good
10Base-T or 100Base-TX
link established
Network activity on Ethernet link
www.veracityglobal.com
VLS-1P-BC, VLS-1P-CC
QUICK START GUIDE
LONG DISTANCE EOC ADAPTOR WITH POE+
®
LONGSTAR
