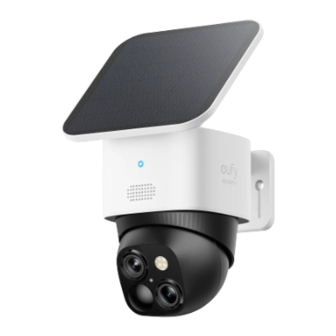

e u f y S e c u r i t y S o l o C a m S 3 4 0
U s e r G u i d e ( T 8 1 7 0 )
A T A G L A N C E
L E D I n d i c a t o r
①
S p e a k e r
②
T e l e p h o t o L e n s
③
P h o t o s e n s i t i v e S e n s o r
④
P I R S e n s o r
⑤
M i c r o p h o n e
⑥
C H A R G I N G Y O U R C A M E R A
F u l l y c h a r g e b e f o r e r s t u s e .
S E T T I N G U P T H E S Y S T E M
M O U N T I N G Y O U R C A M E R A
S e l e c t a L o c a t i o n a n d a H e i g h t
W i d e - A n g l e L e n s
⑦
L E D L i g h t
⑧
S o l a r P a n e l M o u n t i n g H o l e
⑨
M o u n t i n g H o o k
⑩
U S B - C C h a r g i n g P o r t
S Y N C B u t t o n
Advertisement
Related Manuals for EUFY SoloCam S340
Summary of Contents for EUFY SoloCam S340
- Page 1 e u f y S e c u r i t y S o l o C a m S 3 4 0 U s e r G u i d e ( T 8 1 7 0 ) A T A G L A N C E L E D I n d i c a t o r W i d e - A n g l e L e n s ①...
- Page 2 S e l e c t a S o l a r P a n e l L o c a t i o n B e c a r e f u l n o t t o i n s t a l l b y m i s t a k e .
- Page 3 O p t i o n 2 : M o u n t t h e C a m e r a w i t h t h e S o l a r P a n e l A t t a c h e d ( L e s s D r i l l i n g )
- Page 4 QUICK START GUIDE SoloCam S340...
- Page 5 AT A GLANCE SoloCam S340 Model: T8170 LED Indicator Wide-Angle Lens Speaker LED Light Telephoto Lens Solar Panel Mounting Hole Photosensitive Sensor Mounting Hook PIR Sensor USB-C Charging Port Microphone SYNC Button...
-
Page 6: Charging Your Camera
CHARGING YOUR CAMERA Fully charge before first use. SYNC 5V/2A Solid Blue Charging Light Off Fully Charged Charging Time 8 Hours... -
Page 7: Setting Up The System
SETTING UP THE SYSTEM 1. Download and install the eufy Security app, then sign in or create an account. 2. Follow the in-app instructions to add the camera to the device list. -
Page 8: Mounting Your Camera
MOUNTING YOUR CAMERA Select a Location and a Height Select a location where you can get the desired view. We recommend hanging the camera 7-10 ft (2-3 m) above the ground. Up to 32 ft (10m) - Page 9 To ensure that no detection is missed, do not install the camera directly facing the monitoring area. Instead, maintain an angle to avoid any potential blind spots.
- Page 10 Select a Solar Panel Location Option 1: Mount the Camera and the Solar Panel Separately (Best for Strong Solar Power) If the camera is blocked, install the solar panel independently and use the provided USB-C extension cable to get strong solar power.
- Page 12 1. Drill holes with a 15/64 inch (5.95 mm) drill bit with the provided positioning card, then insert the anchors into the holes. PUSH...
- Page 13 2. Connect the solar panel to the camera using the provided USB-C extension cable. SYNC 3. Firmly secure the camera onto the mounting bracket. PUSH...
- Page 14 Be careful not to install by mistake. PUSH P U S H...
- Page 15 4. Install the mounting bracket of the solar panel in a suitable position. 5. Install the solar panel onto its mounting bracket by turning it, then adjust the angle (20º~30º recommended).
- Page 16 Option 2: Mount the Camera with the Solar Panel Attached (Less Drilling) If the camera is not blocked, install the solar panel directly on the top of the camera.
- Page 17 1. Secure the solar panel's mounting bracket to the top of the camera. 2. Install the solar panel onto the solar panel's mounting bracket by turning it.
- Page 18 3. Connect the USB-C connector to the USB-C port of the solar panel. SYNC 4. Drill holes with a 15/64 inch (5.95 mm) drill bit with the included positioning card, then insert the anchors into the holes.
- Page 19 PUSH 5. Firmly secure the camera onto the mounting bracket and adjust the angle (20º~30º recommended).
- Page 20 SAFETY • The suitable temperature for this device and accessories is -20°C to 50°C (Charging temperature is 0°C to 40°C). • Unless specifically indicated that it is safe to do so in the user guide or instruction manual, do not use this device in an environment that exceeds the recommended low or high temperature.
- Page 21 Warning: • Replacing a battery with an incorrect type may bypass safeguards and create danger; • Disposal of a battery in a fire or other source of significant heat, or by crushing, or cutting, may result in an explosion as well as leakage of flammable liquids and gases;...
- Page 22 NOTICE FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 23 help. FCC Radio Frequency Exposure Statement The device has been evaluated to meet general RF exposure requirements. The device can be used in fixed/mobile exposure condition. The min separation distance is 20 cm. Notice: Shielded cables All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.
- Page 24 IC RF Statement When using the product, maintain a distance of 20cm from the body to ensure compliance with RF exposure requirements. Lors de l'utilisation du produit, maintenez une distance de 20 cm du corps afin de vous conformer aux exigences en matière d'exposition RF. Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
-
Page 25: Customer Service
) +81 03 4455 7823 (AU) +61 3 8331 4800 (Egypt) +20 8000000826 (UAE) +971 8000320817 (Kuwait) +965 22069086 (Saudi Arabia) +966 8008500030 support@eufy.com Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong @EufyOfficial @EufyOfficial... - Page 26 Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners. 51005004075 V01...
