- Page 1 Anker Innovations Limited. All rights reserved. eufy Security and eufy Security Logo are trademarks of Anker Innovations Limited, registered in the United States and other countries. All other trademarks are the property of their respective owners.
- Page 2 QUICK START GUIDE IndoorCam Mini...

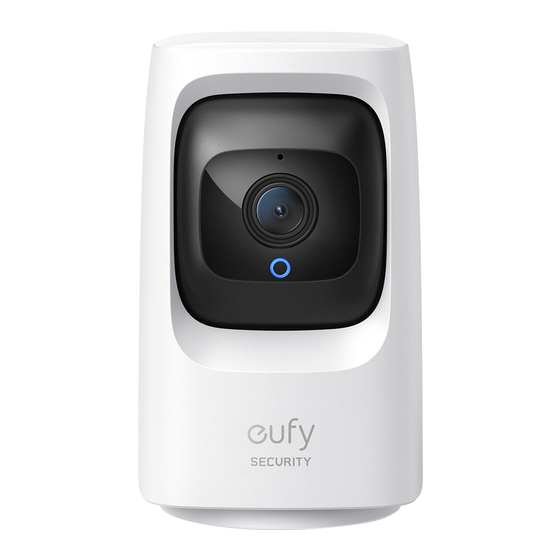

- Page 3 PRODUCT OVERVIEW Model ： T8414 Lens Speaker Microphone Power input SD card slot SYNC button Status LED...
- Page 4 POWERING INDOORCAM...
- Page 5 ADDING TO EUFY SECURITY APP 1. Download and install the eufy Security app, then sign up for an account.
- Page 6 2. Follow on-screen instructions to complete the setup. Status LED Description Blinking blue slowly Ready for setup. Blue Working properly. Blinking red slowly Disconnected from the Internet. Blinking red once Motion or sound detected. Someone is watching a live stream or recording an event. Purple Initializing system.
-
Page 7: Select A Location
MOUNTING INDOORCAM Select a Location The camera can be placed on a table, shelf, or can be mounted on a wall or ceiling. - Page 8 Keep the camera at least 0.7 ft / 20 cm away from walls or anything that may obstruct the view. Do this to avoid infrared reflection which can have a negative impact on the night vision performance. > 20CM > 20CM...
-
Page 9: Ceiling Mount
Ceiling Mount 1. Place the positioning card against the ceiling and then mark the points. 2. Drill holes with a 5/16” (8 mm) drill bit. - Page 10 3. Insert the anchors into the holes, align the holes on the mounting plate with those in the ceiling, and fix the screws with a Phillips-head screwdriver to fasten the mounting plate to the ceiling. Ceiling. Ceiling.
- Page 11 4. Align the grooves with the mounting plate and rotate the camera clockwise until it clicks into place.
- Page 12 Wall Mount To mount the camera on a wall, we recommend using a mounting bracket (not provided) as illustrated below.
- Page 13 SETTING ANGLES Open the eufy Security app, and set a default angle and a privacy angle for the camera on Camera Settings > Angle Settings. Default Angle The camera will automatically rotate to this angle when turned on and when motion tracking ends.
- Page 14 NOTICE FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
- Page 15 This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged...
- Page 16 All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations. The following importer is the responsible party. Company Name: POWER MOBILE LIFE, LLC Address: 10900 NE 8th St, Ste 501, Bellevue WA 98004 Telephone: 1-800-988-7973 IC Statement Innovation, Science and...
- Page 17 Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil nedoit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This Class B digital apparatus complies with Canadian ICES- 003.
- Page 18 The adapter shall be installed near the equipment and shall be easily accessible. Do not use the Device in the environment at too high or too low temperature, never expose the Device under strong sunshine or too wet environment. The suitable temperature for T8414 and accessories is -20°C-45°C (-4°F - 113°F).
- Page 19 Wi-Fi Operating Frequency Range: 2412~2462MHz; This product is designed and manufactured with high quality materials and components, which can be recycled and reused.
-
Page 20: Customer Service
Customer Service Warranty 12-month limited warranty Call Us United States +1 (800) 988 7973 Mon-Fri 9AM-5PM (PT) United Kingdom +44 (0) 1604 936 200 Mon-Fri 6AM-11AM (GMT) Germany +49 (0) 69 9579 7960 Mon-Fri 6:00-11:00 Email Us Customer Support: support@eufylife.com Anker Innovations Limited Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong...
