Summary of Contents for DigiTech XC0389

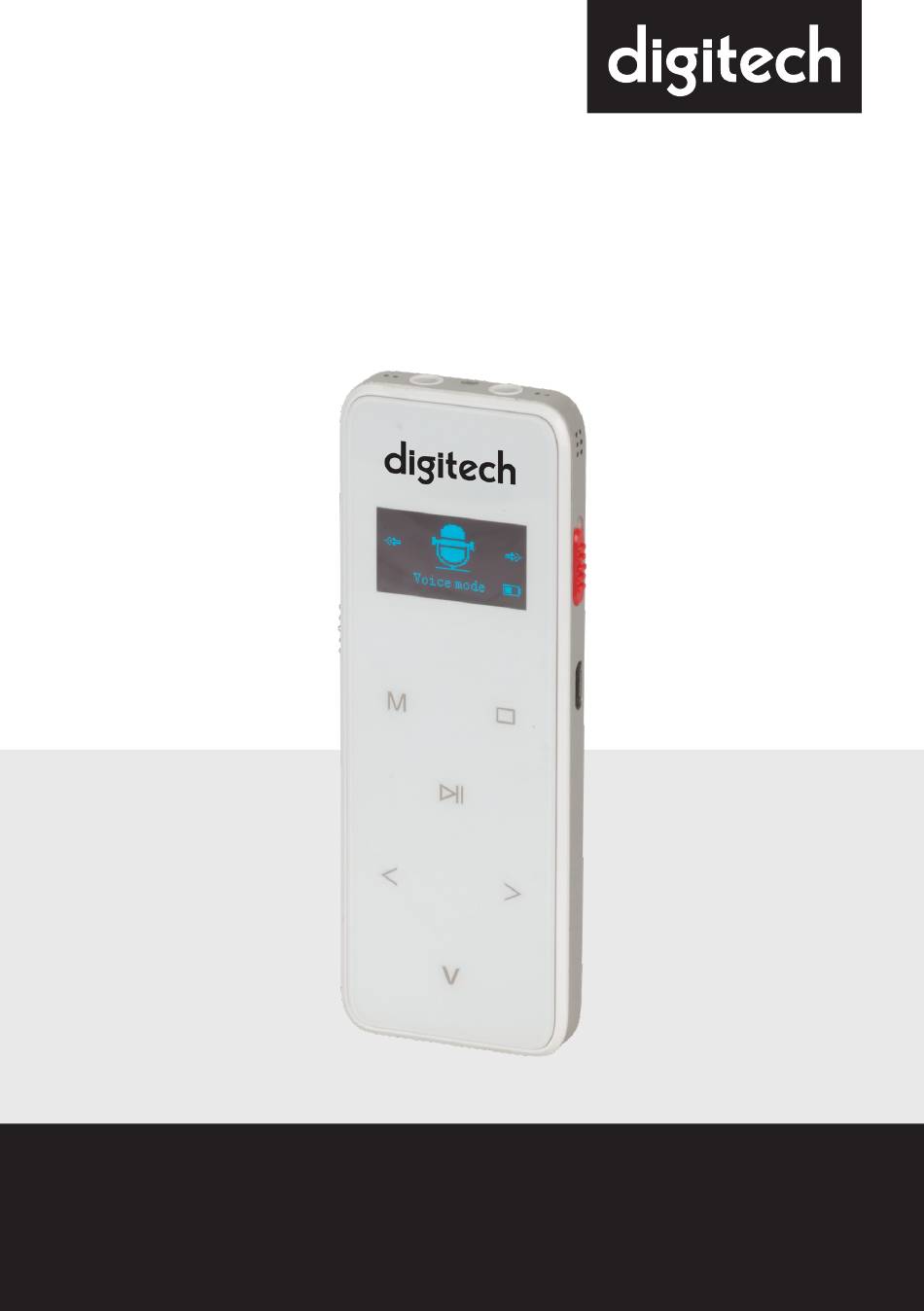

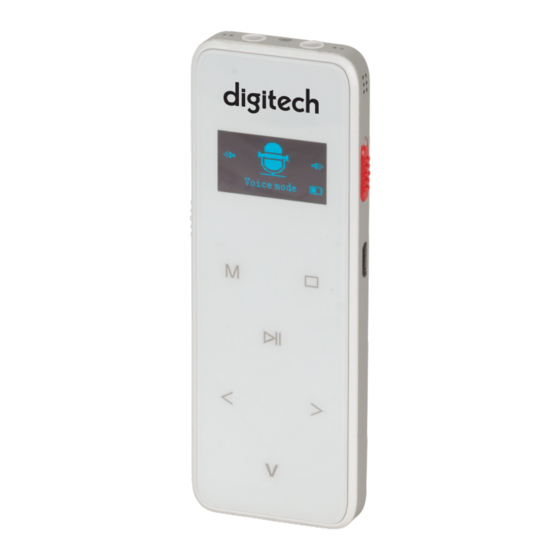

- Page 1 Digital Voice Recorder Model: XC0389 Instruction Manual...
-
Page 3: Table Of Contents
CONTENTS Before First Use .....................4 Box Contents ....................4 Product Diagram ...................4 LCD Display ....................5 Functions ......................5 Specifications ....................11 Warranty Information ................. 12... -
Page 4: Before First Use
BEFORE FIRST USE Prior to using your product, please read all the safety and operating instructions thoroughly. Please ensure you follow the steps below before using the product. We recommend you keep the original packaging for storing the product when not in use. -
Page 5: Lcd Display
Power On: In power off mode; slide the “Power“ button to the “ON/OFF” position and hold for 2 seconds until the screen displays the Digitech Audio symbol. Power Off: In standby mode; slide the “Power” button to the “ON/OFF” position and hold for 2 seconds until the screen displays “Power Off”... - Page 6 Modes: 1. Voice Mode: In any state including being powered off, slide the Red “REC” recording switch from “STOP” to “REC”; the device will start recording. Press the Play/Pause button to pause recording, press the “ ” button again to resume recording.
- Page 7 Segmented Recording: This function is used for long duration recording. You can save one long file in to certain sections. In Voice standby mode, press the “M” Menu button, then press the right “>” or “<” left arrow buttons to select segmented recording. Press the “M”...
- Page 8 Replay Times/Replay gap: While you are playing a recorded file; press the “M” Menu button and the right “> or <” left arrow buttons to select Replay times, press “M” Menu button to enter into and adjust from “0” to “10” with right “>” or “<” left arrow buttons, “+”,“- ”to adjust.
- Page 9 Auto Search: In the FM state; press the “M” Menu Button,”<” left and “>” right arrow buttons to select “Auto Search”, Press the “M” Menu button to confirm and press the “>” “<” left and right arrow buttons to select “YES” or “NO”., Please Note: The channel will become saved automatically and the radio station will be saved in the channel list according to the order of frequencies.
- Page 10 Please connect the voice recorder to your pc using the included Micro B cable. The name XC0389 will automatically pop up as a removable storage device. If it does not open automatically then go to my computer, it should show up as a...
-
Page 11: Specifications
SPECIFICATIONS Memory 8GB Internal Recording Modes PCM, HQ Recording Format WAV (PCM), MP3 (HQ) Recording Time 24hrs PCM / 138hrs HQ Battery 3.7V Li-ion, 350mA Battery Life Up to 17hrs PCM, 15hrs HQ Dimensions 100(H) x 36(W) x 9(D)mm... -
Page 12: Warranty Information
WARRANTY INFORMATION Our product is guaranteed to be free from manufacturing defects for a period of 12 Months. If your product becomes defective during this period, Electus Distribution will repair, replace, or refund where a product is faulty; or not fit for intended purpose.
