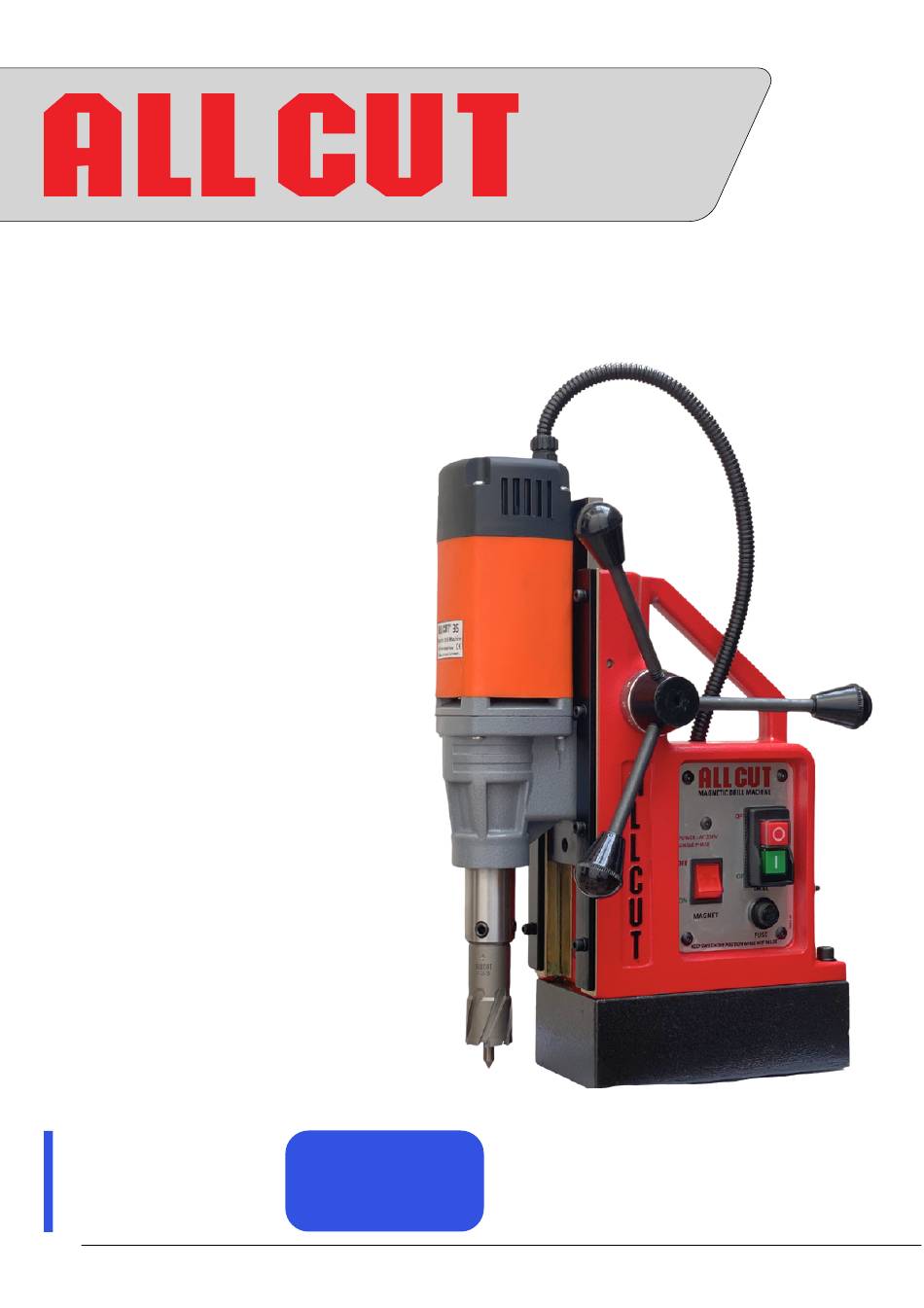

- Page 1 Operating Instructions for ALLCUT MegaCore 35 Mega Core THANKS FOR PURCHASING ALLCUT MAGNETIC DRILL MACHINE...
-
Page 2: Table Of Contents
GENERAL INSTRUCTIONS TABLE OF CONTENT INTENDED USE General instructions The ALLCUT MegaCore 35 magnetic drilling machine is Machine overview uniquely designed to be used for drilling operations Safety measures using annular cutters on magnetic metals, within the limits specified in the technical data. -
Page 3: Machine Overview
MACHINE PART MAIN BODY PINION SR. NO. PANEL HANDLE MOTOR ON/OFF SWITCH PANEL FUSE HOLDER ELECTROMAGNET MAGNET ON/OFF SWITCH STEEL WEDGES PILOT PIN FOR CUTTER ANNULAR CUTTER (TCT) SPINDLE WITH 19MM WELDON SHANK GEAR BOX DRILL MOTOR STEEL SLIDE MegaCore 35... -
Page 4: Safety Measures
Press the red button (O) of the motor switch(4.1) after 5. Beware of rotating parts machine parts. every operation. Switch off the machine with magnet switch (4.3) so the ALWAYS READ THIS MANUAL motor doesn't start. BEFORE OPERATING THE MACHINE. MegaCore 35... - Page 5 Securing the machine with the plate using the safety chain. Clamping the plate tightly with the surface that is to be drilled. Wear proper safety equipment. NOTE Make sure to make a pilot punch before drilling. Always use cutting oil or coolant when drilling. MegaCore 35...
-
Page 6: Preparing
Insert the cutter into the spindle along with the pilot pin. Tighten the grub screws on the spindle with the Allen key provided. REMOVING THE CUTTER Untighten both the grub screws with the Allen key provided and remove the cutter from below. MegaCore 35... -
Page 7: Using The Machine
Turning on coolant system Switch ON (4.3) the magnet switch to enable the electromagnet. Check that the machine sticks to the plate The ALLCUT MegaCore 35 has internal cooling system to cool properly. down the annular cutter while drilling. Always cool down the Switch ON the machine by pressing the green button (I) cutter while drilling to increase the cutter life. -
Page 8: Removing Blockages
If the slide is too tight loosen the bolts. Cutter Replacing the carbon brushes Check out for the worn out carbon brushes. Replace the Punch Slug carbon brushes if needed. Unauthorized carbon brushes will damage the drill motor (12). MegaCore 35... -
Page 9: Storage
Drilling Capacity Annular cutter ( ): Tapping Capacity Reaming Capacity Speed Reverse/forward Spindle Taper Main cord length NOTE The ALLCUT 35 can only be used with annular cutters. Also the machine has 1 speed transmission with fixed rpm. MegaCore 35... -
Page 10: Spare Part List
SPARE PARTS LIST Motor Parts Stand Parts MegaCore 35... -
Page 11: Wiring Drawing
WIRING DRAWING Drill Switch Rectifire Magnet Switch Fuse Holder Main plug Electromagnet MegaCore 35... - Page 12 EXPERIENCE HAPPY AND SAFE DRILLING WITH ALLCUT MAG DRILLS...
