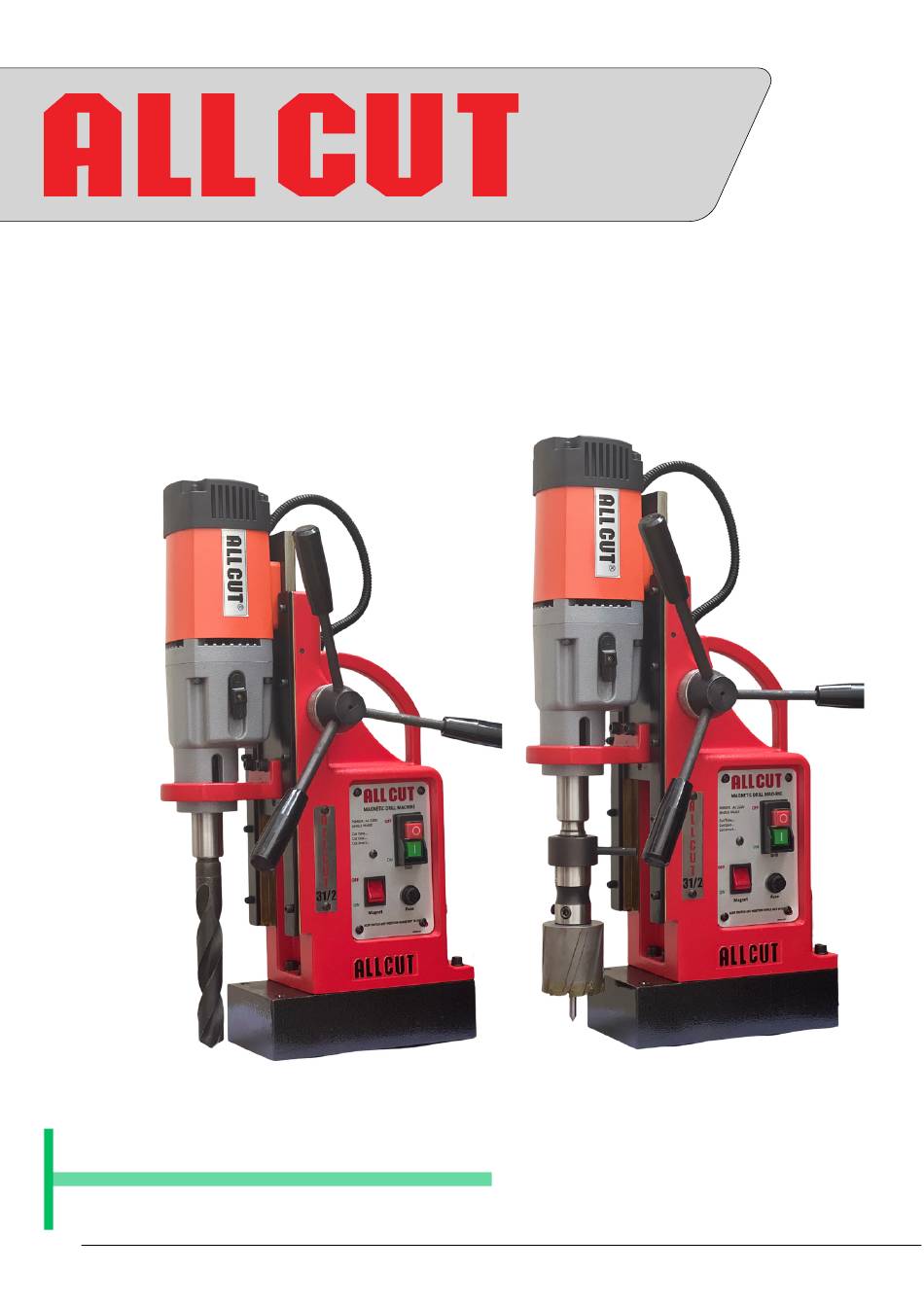

- Page 1 Operating Instructions for ALLCUT HoleMatic 31/65 Hole Matic THANKS FOR PURCHASING ALLCUT MAGNETIC DRILL MACHINE...
-
Page 2: Table Of Contents
GENERAL INSTRUCTIONS TABLE OF CONTENT INTENDED USE General instructions The ALLCUT HoleMatic 31/65 magnetic drilling machine is uniquely designed to be used for drilling operations Machine overview using twist drills and annular cutters on magnetic Safety measures metals and reaming within the limits specified in the Before using for the technical data. -
Page 3: Machine Overview
MACHINE OVERVIEW SR. NO. MACHINE PART MAIN BODY PINION SR. NO. PANEL HANDLE MOTOR ON/OFF SWITCH PANEL FUSE HOLDER ELECTROMAGNET MAGNET ON/OFF SWITCH STEEL WEDGES ANNULAR CUTTER (TCT) CUTTER ADAPTER COOLANT BRACKET SPINDLE WITH MT-3 SHANK OPENING FOR EJECTOR PIN GEAR CHANGER DRILL MOTOR STEEL SLIDE... -
Page 4: Safety Measures
SAFETY MEASURES NOTE DANGER When using electrical tools, please read and follow the Danger from electric current! following precautions to prevent any type of injury, fire or Contact with live wires or components may lead to electric shock. serious injury to the operator. Read the following safety precaution to avoid any electric shock. - Page 5 SAFETY MEASURES, BEFOR USING FOR THE FIRST TIME NOTE WARNING Check for any visible signs of damage or missing items on Always switch off the machine when changing tool, delivery. Report an incomplete or damaged delivery to your conducting maintenance or cleaning. Wait till the dealer/supplier/manufacturer.
-
Page 6: Preparing
PREPARING Check the condition of USING THE MACHINE WITH ANNULAR CUTTERS. the surface INSERTING THE CUTTER The magnetic force is dependent on the condition of the First remove the tool, if any, from the spindle taper (10) surface/plate to be drilled. If the surface/plate is painted, using ejector pin. -
Page 7: Starting On The Machine
Then turn ON the machine with the green button (I) on NOTE the drill switch (4.1). The ALLCUT Hole Matic 31/65 is designed to be used NOTE for drilling with twist drills and annular cutters, and The machine can only be turned on when the reaming purposes. -
Page 8: Using The Machine
USING THE MACHINE Drilling with Annular cutter ATTENTION The cutter adaptor of the ALLCUT HoleMatic 31/65 is Observe the following instructions when drilling with equipped with internal cooling system for the annular annular cutter: cutter. Always cool down the tool while drilling for Drilling with annular cutters does not require much better cutter life. -
Page 9: Removing Blockages
REMOVING BLOCKAGES, CLEANING, MAINTENANCE Removing blockages Cleaning the machine WARNING WARNING Make sure to switch OFF (4.3) completely and remove Risk of injury due to broken tool or metal chips. the main cord from the main socket. Always use protective gloves when using the machine. When using compressed air for cleaning or removing Blockages caused by broken tool: metal chips, wear the protective goggles and gloves for... -
Page 10: Storage
If the machine is too damaged or cannot be repaired by you, If you are not planning to use for a long time, clean the please contact ALLCUT team/dealer/supplier. We will be machine as described in the CLEANING SECTION. Store the happy to provide you with best service. -
Page 11: Wiring Drawing
WIRING DRAWING Drill Switch Rectifire Magnet Switch Fuse Holder Main plug Electromagnet Hole Matic 31/65... -
Page 12: Accessories
ACCESSORIES SR. NO. ACCESSORIES ANNULAR CUTTER (HSS/TCT) AAC (ALL SIZES) PILOT PIN NOTE EJECTOR PIN The products which are marked with AAC are extra DRILL CHUCK ARBOR accessory and have to be CUTTER ADAPTER paid for each of them. ALLENN WRENCHES (INC= INCLUDED) (AAC= AVAILABLE AS ACCESSORY) Hole Matic 31/65... - Page 13 Hole Matic 31/65...
- Page 14 EXPERIENCE HAPPY AND SAFE DRILLING WITH ALLCUT MAG DRILLS...
