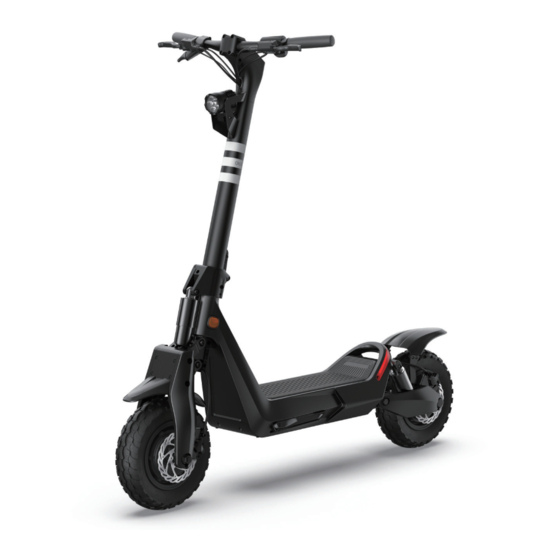

OKAI ES800 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

The manufacturer reserves the right to make changes to the product,
release firmware updates, and update this manual at any time.
https://cn.okai.co

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES800 and is the answer not in the manual?

Questions and answers

Related Manuals for OKAI ES800

Summary of Contents for OKAI ES800

  • Page 1 The manufacturer reserves the right to make changes to the product, release firmware updates, and update this manual at any time. https://cn.okai.co...
  • Page 2 ES800 User Manual...

  • Page 3: Table Of Contents

    3. Safety Instructions..................... 3-1. General Safety Instructions..............3-2. RF exposure warning................09 3-3. Battery Safety..................09 3-4. Charging Safety..................4. Setting Up Your OKAI Scooter................4-1. Assembling................... 4-2. Front...................... 4-3. Preparations Before Riding..............5. Maintenance, Cleaning, Storage and Transport..........5-1. Maintenance..................

  • Page 4: Introduction

    Thank you for purchasing the OKAI electric scooter. We wish you to ride OKAI electric scooter safely. As there could be risks in riding an electric scooter, please read this manual carefully before using and keep it for future references. For safety reasons, please make sure to pass on this manual to anyone you wish to lend your e-scooter to.

  • Page 5: Model Specifications

    1-1. Model Specifications Items Specifications ES800 Unfolded: L*W*H 1322*608*1263(mm) Folded: L*W*H 1322*608*680(mm) Net Weight 43kg Maximum Speed 37mph Typical Range* 31miles Product Parameters Maximum Slope Terrain Adaptation Flat surface/Mountains Operating Temperature -10～40℃ Storage Temperature -20～50℃ IP Rating (Vehicle) IP55 Charging Time 4A＜5h...
  • Page 6 Items Specifications ES800 Braking Distance ＜10m Brakes Front & Rear: Disc Brake + Brake Mode Electronic Brake Tires Tire Size 12 inches Tire Material Tubeless Tire Input Voltage 100-240V Charger Output Voltage 58.8V Output Current Maximum Payload 150kg Rider Recommended Age 18+ yrs.

  • Page 7: Icon Descriptions

    1-2. Icon Descriptions Indicates a danger condition that could lead to severe injuries or death. Indicates a warning condition that could lead to severe injuries or death. Indicates a caution condition that could lead to severe injuries or death. Marks the additional information regarding the product and its usage. Indicates European Union’s (EU) mandatory conformity marking for regulating the goods.

  • Page 8: Vehicle And Accessory Lis

    1-3. Vehicle and Accessory List Brake lever Dashboard Throttle Handlebar cover Brake lever Head light Folding stem Rear fender Folding clamp Side reflector Front fender Rear light Kickstand Foot mat 12 inches Wheel Hub Motor Dimensions: L:1322mm * W:608mm * H:1263mm...

  • Page 9: Intended Usage

    Zhejiang Okai Vehicle Co., Ltd. (OKAI) will not be responsible (directly or indirectly) for any financial and personal losses, accidents, legal disputes, or any other incidents that may cause conflict of interest as a result of using the scooter in violation of safety instructions in this manual.
  • Page 10 9. Avoid sudden acceleration or braking; Do not lean over and accelerate. 10. Do not move forward or backward excessively. 11. Do not use this product incorrectly. Do not use this product on roadways, motorways, areas close to motor vehicles, steps, swimming pools, slippery surfaces and other areas with water, uneven grounds, loose grounds, etc.

  • Page 11: Rf Exposure Warning

    45. When approaching pedestrians or cyclists without being seen or heard by them, press the bell to alert them. 46. When pushing the vehicle, please walk in the safe passage. 47. Shut down the vehicle when charging. 48. Don’t use the vehicle for other purposes. 49.

  • Page 12: Setting Up Your Okai Scooter

    ·Do not disconnect the battery charger from the power source by pulling the power cord. Please pull out the plug manually. ·Do not charge the non-rechargeable batteries. 4. Setting Up Your OKAI Scooter 4-1. Assembling This section provides information on how to use the product correctly. For the safety of users and a prolonged service life of the product, it is crucial to follow these instructions.
  • Page 13 2. Remove the box and the plastic packaging. 3. ① Hold up the handlebar and the folding stem at the same time; ② Snap the folding stem into the lower part; ③ Snap the folding device upwards to lock the folding device. Make sure the front uprights are locked and the folding handles are locked before each ride.
  • Page 14 4. Take out the handlebar clamp and attach it to the handlebar with a 4mm Allen wrenc. 5. Remove the remaining foam pieces and plastic packaging, take out the vehicle, and unfold the kickstand. Note：For first use, please connect the charger to activate vehicle.

  • Page 15: Front

    4-2. Front Brake lever Dashboard Brake lever Function button Throttle Mode adjustment Push up: upshift Push down: downshift (non-cyclic) Mode description: E is the pedestrian mode, the maximum speed is 5km/h, applicable for pushing on sidewalks; D is the economy mode, the maximum speed is 25mph B is the sport mode, the maximum speed is 37mph.
  • Page 16 1. Wear a helmet and other protective equipment. 2. Inspect the vehicle before use. If the folding stem is loose and wobble, tighten the Squeeze the brake lever to confirm screws of the folding proper brake function. device in time. 3.
  • Page 17 5. To turn, shift your body and turn the handlebar 6. To stop, release the rotary handle to slow down slightly. and squeeze the brake lever. Unfold the kickstand and let the vehicle lean slightly so that the kickstand meets the ground, and then the vehicle can be placed stably.
  • Page 18 8. Activating the OKAI App Scan the QR code to install the App on your mobile device (see the system and Bluetooth version requirements in the App). The cruise control function and other recreational functions of the scooter can be found in the App.

  • Page 19: Preparations Before Riding

    4-3. Preparations Before Riding Checklist: ·Wheels – Make sure the wheels are not damaged or excessively worn. ·Loose parts – Make sure all parts, such as nuts, bolts, and fasteners are well adjusted. There should be no abnormal sound from any part of the vehicle. Check it before each ride. ·Operating areas –...

  • Page 20: Storage And Transport

    5-3. Storage and Transport ·Store the product in a dry and clean place away from children, preferably in its original packaging. ·Shut down the product before transport. ·Only transport the product in its original packaging. Do not throw away the packaging as it could be used for future transportation.

  • Page 21: Troubleshooting

    7. Troubleshooting Code Error Description Recommended Actions Overcurrent The instantaneous output current Recovered When the output Protection of the controller exceeds the current of the controller is less current limit range than MAX current Low-voltage Battery voltage lower than 30±1 V 1: The fault will be relieved after charging protection...
  • Page 22 Code Error Description Recommended Actions Left brake knob The left brake does not return or 1. Return the left brake lever not returned the left brake is damaged when 2. Replace the left brake starting up Right brake knob The right brake does not return 1.
