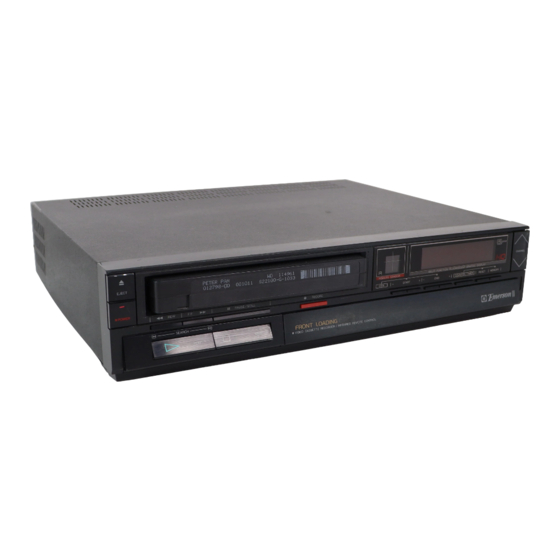

Emerson VCR872 Service Manual

"'wwwservicemanuals.net
10 North Main St.
Wharton, NJ 07885

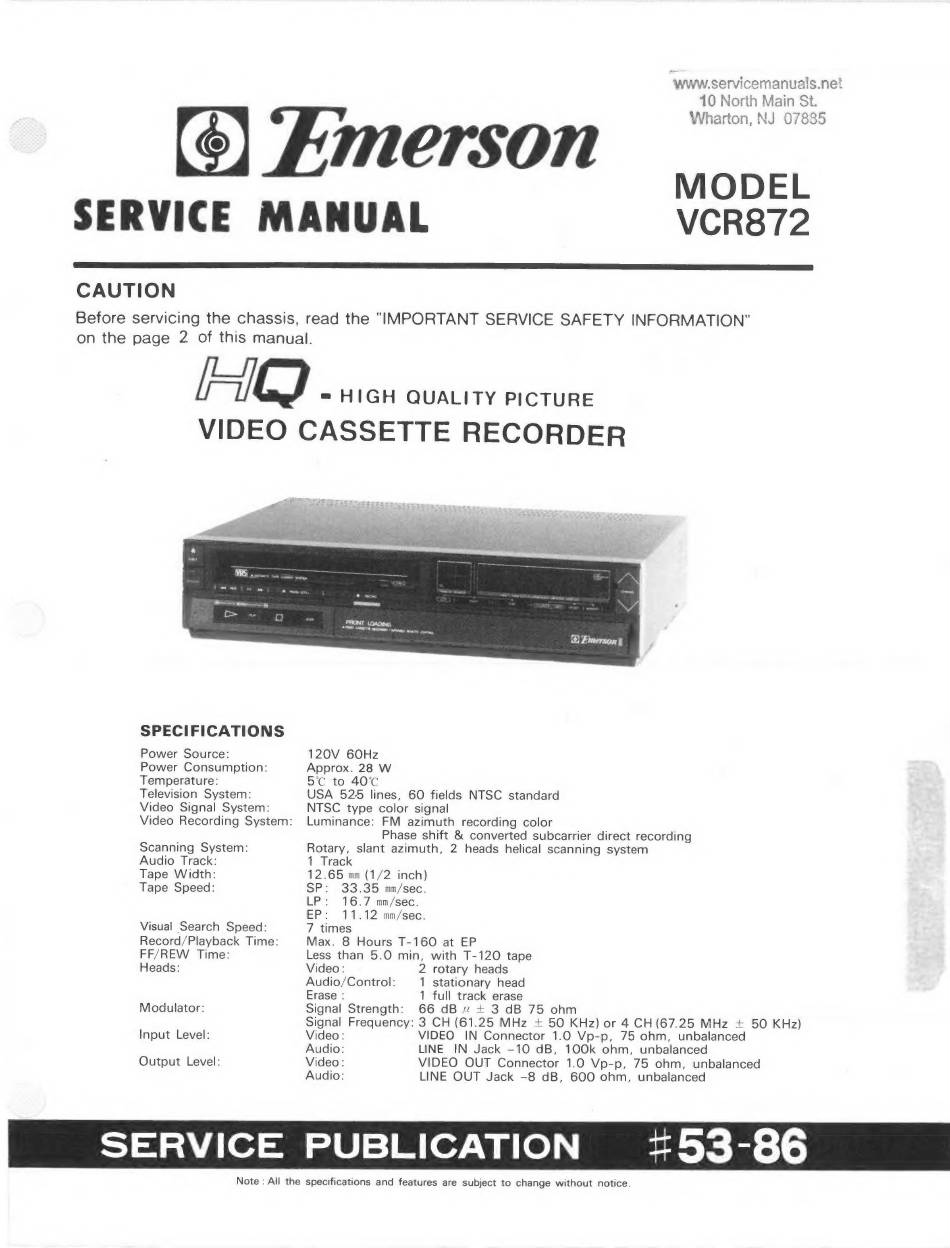

(6) Fmerson
SERVICE MANUAL
CAUTION
fl
MODEL
VCR872
SPECIFICATIONS
Power Source:
Power Consumption:
Temperature:
Television System:
Video Signal System:
Video Recording System:
Scanning System:
Audio Track:
Tape Width:
Tape Speed:
Visual Search Speed:
Record/Playback Time:
FF/REW Time:
Heads:
Modulator:
Input Level:
Output Level:
SERVICE
120V 6OHz
Approx. 28 W
5'°C to 40°C
USA 525 lines, 60 fields NTSC standard
NTSC type color signal
Luminance: FM azimuth recording color
Phase shift & converted subcarrier direct recording
Rotary, slant azimuth, 2 heads helical scanning system
1 Track
12.65 mm (1/2 inch)
SP: 33.35 mm/sec.
LP: 16.7 mm/sec.
EP: 11.12 mm/sec.
7 times
Max. 8 Hours T-160 at EP
Less than 5.0 min, with T-120 tape
Video: 2 rotary heads
Audio/Control: 1 stationary head
Erase : 1 full track erase
Signal Strength: 66 dB ~ + 3 dB 75 ohm
Signal Frequency: 3 CH (61.25 MHz + 50 KHz) or 4 CH(67.25 MHz + 50 KHz)
Video: VIDEO IN Connector 1.0 Vp-p, 75 ohm, unbalanced
Audio: LINE IN Jack -10 dB, 100k ohm, unbalanced
Video: VIDEO OUT Connector 1.0 Vp-p, 75 ohm, unbalanced
Audio: LINE OUT Jack -8 dB, 600 ohm, unbalanced
+53-86
PUBLICATION
Note : All the specifications and features are subject to change without notice.
