JumpPro Xcite Assembly Instructions Manual

10ft x 7ft, 12ft x 8ft and 15ft x 10ft oval trampoline with enclosure
Hide thumbs Also See for Xcite:

Advertisement

Quick Links

Download this manual

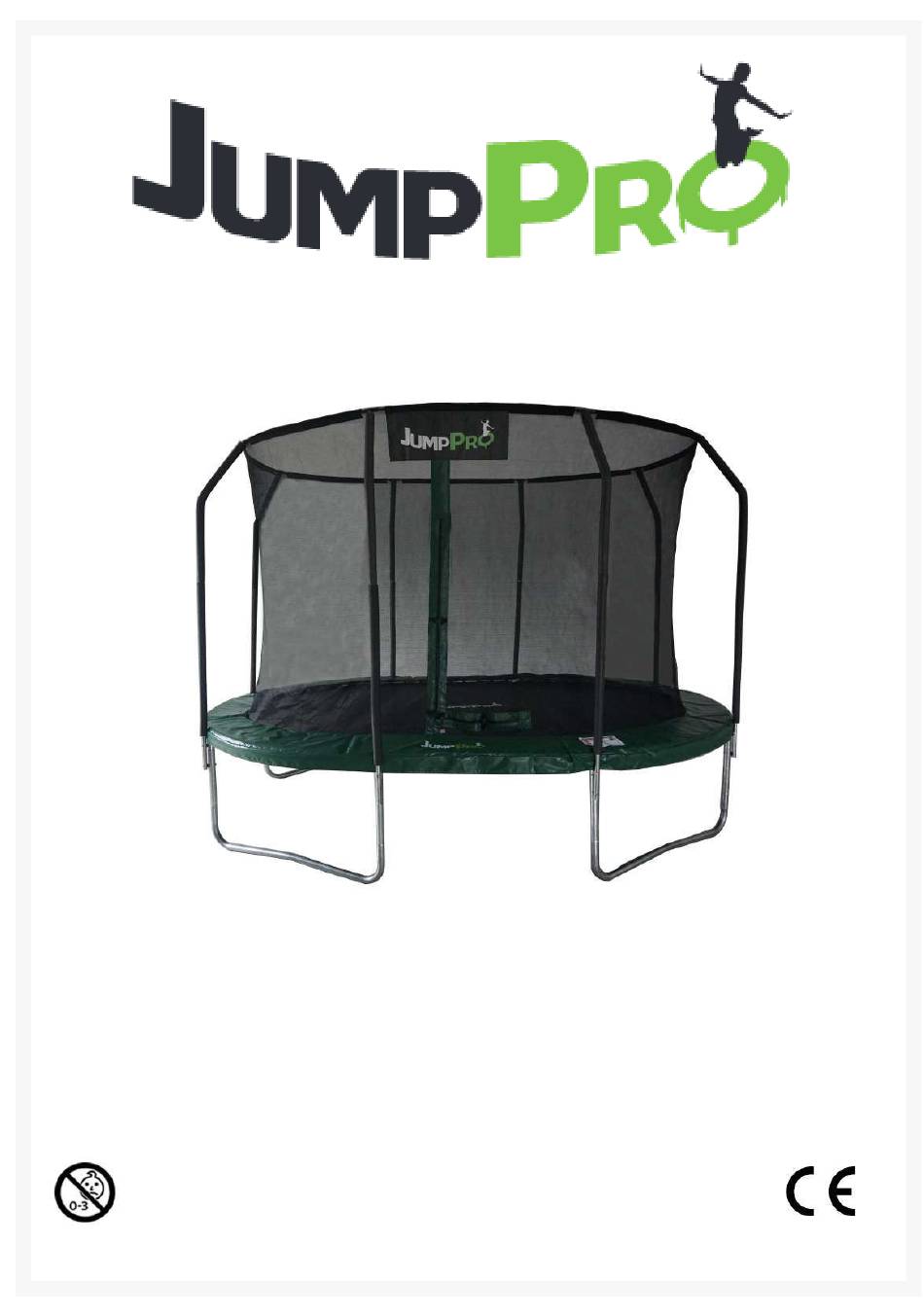

JumpPRO™ Xcite Assembly Instructions
10ft x 7ft, 12ft x 8ft and 15ft x 10ft JumpPRO™ Xcite
Oval Trampoline with Enclosure
WARNING! Read these Assembly Instructions before assembling and
using your trampoline. Max User weight Limit 150kg
Warning! Not suitable for children under
36 months - small parts, choking hazard!

Advertisement

loading
Need help?

Need help?

Do you have a question about the Xcite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JumpPro Xcite

Summary of Contents for JumpPro Xcite

  • Page 1 JumpPRO™ Xcite Assembly Instructions 10ft x 7ft, 12ft x 8ft and 15ft x 10ft JumpPRO™ Xcite Oval Trampoline with Enclosure WARNING! Read these Assembly Instructions before assembling and using your trampoline. Max User weight Limit 150kg Warning! Not suitable for children under...
  • Page 2 WARNINGS! Max User Weight: 150kg. Recommended age 6+ years. Only for domestic use. The trampoline is intended for outdoor use only. The trampoline shall be assembled by an adult in accordance with the assembly instructions and thereafter checked before the first use. Adult supervision and guidance is required at all times during use.
  • Page 3 INFORMATION The trampoline is not intended to be buried into the ground. Product dimensions: 10ft x 7ft: 305x214x245CM 12ft x 8ft: 366x244x265CM 15ft x 10ft: 457x305x270CM All users should be aware of their own limitations. The risk of severe injury must by taken seriously. It is important to bend your knees on landing to achieve the best possible control.
  • Page 4 ASSEMBLY AND MAINTENANCE INSTRUCTIONS Please pay attention to the need to carry out checks and maintenance of the main parts (frame, suspension system, mat, padding and enclosure) at the beginning of each season and also at regular intervals. If these checks are not carried out, the trampoline could become dangerous. Check all nuts and bolts for tightness and tighten when required.

  • Page 5: Jumping Instructions

    JUMPING INSTRUCTIONS Fundamental Bounce 1. Start from a standing position with your head erect and your eyes on the frame pad. 2. Swing your arms forward and up in a circular motion. 3. Bring your feet together and point your toes downward while in the air.
  • Page 6 WHAT YOU WILL NEED FOR BUILDING YOUR TRAMPOLINE Gloves Safety glasses Mallet To help build your trampoline, you will need gloves, safety glasses and a mallet. Please note that these are not supplied with your trampoline. ASSEMBLY INSTRUCTIONS To assemble this trampoline we have provided you with our special spring pulling tool (item O) and a cross head screwdriver (item J) and spanners (item N).
  • Page 7 TRAMPOLINE PART LIST...

  • Page 9: Step 1: Trampoline Parts

    STEP 1: TRAMPOLINE PARTS Note: Product images are for illustration purposes only, component part colours may vary dependent on which JumpPRO model you have purchased. Lay out all the trampoline parts in groups, as shown in the picture above.. STEP 2: ASSEMBLING THE FRAME 2.
  • Page 10 3. Connect top rails (C,D,E) with T-connectors (K) together firmly. 4. Continue until you complete an oval frame, with the help of the second person.
  • Page 11 5. Attach the leg extension (G) to the leg base (H) securely. Making sure that the holes in the leg tube extensions are aligned with the holes in the leg base. 6. Secure the leg extensions (G) and leg base (H) using flat screws (I) with screwdriver (J) provided. 7.
  • Page 12 STEP 3: ATTACHING THE BED WARNING: Be careful where you place your hands during spring assembly as connector points can pinch! IMPORTANT: Springs must be attached the right way around and fully inserted into the holes along the top of the frame. Note: It is easier to place one hand on the frame and pull the spring towards you, as shown above.
  • Page 13 8. Fold the jumping mat (B) as the image above shows. Find one D-ring to attach to the top rail (3 o'clock). Then find the D-ring on the opposite side to attach to the opposite side of the top rail (9 o'clock).
  • Page 14 10. Continue attaching the springs to your jumping mat in the below sequence. ① ② 11. Attach each spring at opposite sides. Repeat this step until all the springs are attached.
  • Page 15 STEP 4: FITTING THE FRAME PAD 12. Lay the frame pad (A) over the edge of the frame with the ties facing downwards. 13. Tie all the black straps onto the top rails. Do not tie them to the springs. The trampoline pad is now fitted and you have completed step 4.
  • Page 16 STEP 5: ASSEMBLING THE ENCLOSURE POLES 14. Connect the bottom pole tube (Q) to the upper pole tube (R). 15. Align the holes in the bottom enclosure poles with the holes in the top enclosure poles, fasten with the screws (S) using the screwdriver (J) provided.
  • Page 17 IMPORTANT: Insert the fiberglass rods (T) with the yellow stickers into the sewn sleeve at the top of the safety net (V) above the JumpPRO logo. Insert another fiberglass rod (T) with a yellow sticker to the opposite side of the safety net. Please refer to the below IMAGE A to correctly fit the fiberglass rods and T plastic caps (P) to the net.
  • Page 18 Important! Make sure that the opening of the net (the zipper) is placed in the middle of the long side of the trampoline. Align the logo at the top of the net with the logo on the pad. 18. Insert the ends of the fiberglass rods into the T plastic caps (P). One person will be required to thread the fiberglass rods through the sewn sleeve whilst the other person is gradually bending the rods through the sewn sleeve to form an oval.
  • Page 19 19. Attach the fiberglass rods with the safety net to the top upper poles tube (R) by clicking the T plastic caps (P) into the top of the upper pole tube (R). Door Enclosure Net D-rings on Jumping Mat Cord (W) 20.
  • Page 20 Door Enclsoure Net Cord (W) D-rings on Jumping Mat 21. Thread the cord (W) through the lower eyelet of the enclosure net (V) halfway between the first D-ring and the D-ring to the left, and then thread the cord through to the left. Repeat this procedure until all the cords are threaded through the safety net and the D-rings as shown.

  • Page 21: Spare Parts

    23. The trampoline and enclosure are now fully assembled. Make sure that all parts are securely attached. Familiarise yourself and all users of the trampoline and enclosure with the safety precautions, use the instructional materials, care and maintenance instructions in this manual before using.
