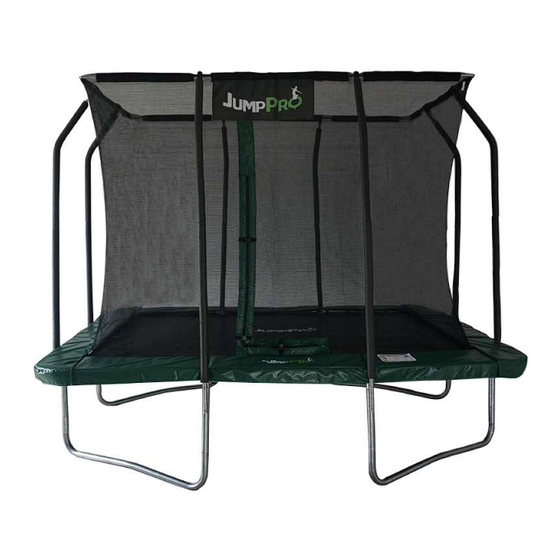

9ft x 6ft, 10ft x 7ft and 12ft x 8ft xcite rectangular trampoline with enclosure
Hide thumbs Also See for Xcite:

Advertisement

Quick Links

Download this manual
JumpPRO™ Xcite Assembly Instructions
9ft x 6ft, 10ft x 7ft and 12ft x 8ft JumpPRO™ Xcite Rectangular
Trampoline with Enclosure
WARNING!
Read these Assembly Instructions before assembling and
using your trampoline. Max User weight Limit 150kg
Warning! Not suitable for children under
36 months - small parts, choking hazard!

Advertisement

loading
Need help?

Need help?

Do you have a question about the Xcite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JumpPro Xcite

Summary of Contents for JumpPro Xcite

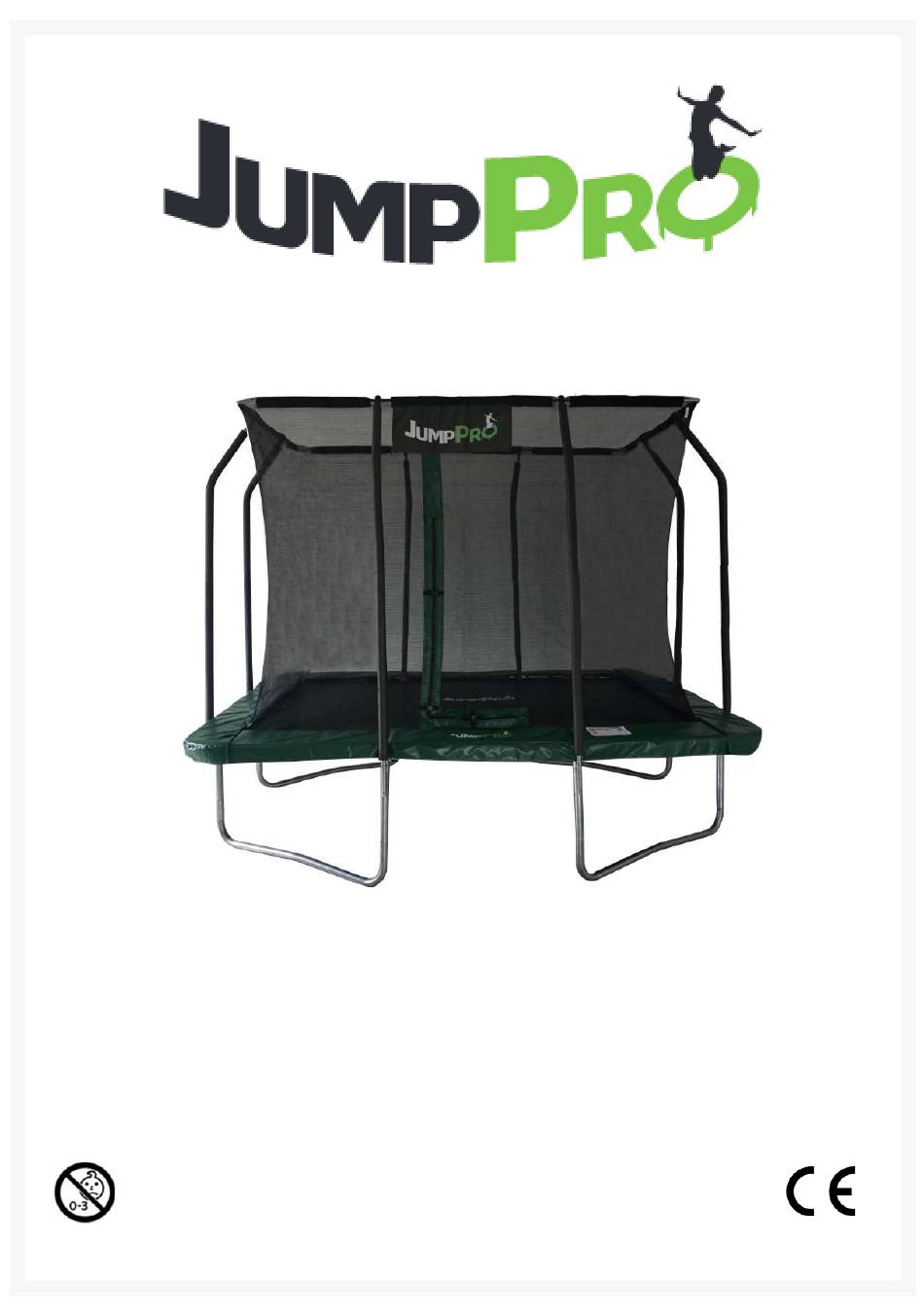

  • Page 1 JumpPRO™ Xcite Assembly Instructions 9ft x 6ft, 10ft x 7ft and 12ft x 8ft JumpPRO™ Xcite Rectangular Trampoline with Enclosure WARNING! Read these Assembly Instructions before assembling and using your trampoline. Max User weight Limit 150kg Warning! Not suitable for children under...
  • Page 2 WARNINGS! Max User Weight: 150kg Recommended age 6+ years. Only for domestic use. The trampoline is intended for outdoor use only. The trampoline shall be assembled by an adult in accordance with the assembly instructions and thereafter checked before the first use. Adult supervision and guidance is required at all times during use.

  • Page 3: Moving The Trampoline

    INFORMATION The trampoline is not intended to be buried into the ground. Product dimensions: 9ft x 6ft: 275x183x245CM 10ft x 7ft: 305x214x256CM 12ft x 8ft: 366x244x265CM All users should be aware of their own limitations. The risk of severe injury must by taken seriously. It is important to bend your knees on landing to achieve the best possible control.
  • Page 4 ASSEMBLY AND MAINTENANCE INSTRUCTIONS Please pay attention to the need to carry out checks and maintenance of the main parts (frame, suspension system, mat, padding and enclosure) at the beginning of each season and also at regular intervals. If these checks are not carried out, the trampoline could become dangerous.

  • Page 5: Jumping Instructions

    JUMPING INSTRUCTIONS Fundamental Bounce 1. Start from a standing position with your head erect and your eyes on the frame pad. 2. Swing your arms forward and up in a circular motion. 3. Bring your feet together and point your toes downward while in the air.
  • Page 6 WHAT YOU WILL NEED FOR BUILDING YOUR TRAMPOLINE Safety glasses Mallet Gloves To help build your trampoline, you will need gloves, safety glasses and a mallet. Please note that these are not supplied with your trampoline. ASSEMBLY INSTRUCTIONS To assemble this trampoline we have provided you with our special spring pulling tool (item N) and a cross head screwdriver (item O) and spanners (item K).

  • Page 7: Trampoline Parts List

    TRAMPOLINE PARTS LIST...
  • Page 9 STEP 1: TRAMPOLINE PARTS Note: Product images are for illustration purposes only, component part colours may vary dependent on which JumpPRO model you have purchased. Lay out all the trampoline parts in groups, as shown in the picture. STEP 2: ASSEMBLING THE FRAME 2.
  • Page 10 4. Continue until you form a complete rectangle frame. 5. Attach the leg extensions (H) to the leg bases (I) securely. 6. Attach the trampoline legs you assembled, to the top rails as the images above show. Repeat this step for all 4 corners. Ensure the holes in the bottom of the T-connectors are aligned with the holes in the leg extensions (H).
  • Page 11 STEP 3: ATTACHING THE BED WARNING: Be careful where you place your hands during spring assembly as connector points can pinch! Note: It is easier to place one hand on the frame and pull the spring towards you, as shown above. Make sure that "a"...
  • Page 12 7. Slot 8pcs of springs (G) to the spring holes in the 4 corners of the top frame tubes. 8. Connect the other end of the springs onto the corresponding D-rings of the jumping mat (B). Important: Springs must be attached the right way around and fully inserted into the holes along the top of the frame.
  • Page 13 9. To even out the tension and avoid over stretching the springs, continue connecting every few springs in the above sequence until all springs are attached by using spring pulling tool (N). STEP 4: FITTING THE FRAME PAD 10. Lay the frame pad sections (A) over the edge of the frame with the ties facing downwards. 11.
  • Page 14 12. Tie all the black straps onto the top rails. Do not tie them to the springs. The trampoline pad is now fitted and you have completed step 4. WARNING: The trampoline MUST NOT be used during construction. STEP 5: ASSEMBLING THE ENCLOSURE POLES 13.
  • Page 15 IMAGE (A) 15. Attach the top enclosure pole caps (U) to the top of the enclosure poles (S), fasten with the screws (T) and screwdriver (O). IMPORTANT: Refer to the picture (IMAGE (A) above, to clearly see which way round to attach the pole caps, the opening of the pole cap has to be on the same side as the outside bend of the top enclosure pole facing outwards.
  • Page 16 STEP 6: ATTACHING THE FIBERGLASS RODS TO THE NET Size: 12FT X 8FT Size: 10FT X 7FT 9FT X 6FT 17. Lay out and position the fiberglass rods (W,X) and fiberglass corner connectors (Y) as above.
  • Page 17 Long fiberglass rod (includes 3pcs of fiberglass rod A) Short fiberglass rod Size: (includes 2pcs of fiberglass rod B) 12FT X 8FT Short fiberglass rod (includes 2pcs of fiberglass rod B) Long fiberglass rod (includes 3pcs of fiberglass rod A) Long fiberglass rod (includes 2pcs of fiberglass rod A) Short fiberglass rod...
  • Page 18 IMPORTANT - INSTALLING THE SAFETY NET Lay the safety net on the trampoline bed The product label should be There are 3 white dots on on the front right hand each corner of the safety corner The zipper and logo on the net should align with the logo on the pad Start the following steps (20 and 21) from the front right hand corner, where the product label is.
  • Page 19 Note: The following steps (20-21) should be completed whilst the net is laid out on the trampoline bed. 20. Insert the fiberglass rods into the sewn sleeves on the top of the safety net (P). Long fiberglass rods for long sides and short fiberglass rods for short sides.
  • Page 20 22. Connect the fiberglass rod to the top of the poles by clicking it into the pole caps (U). Repeat this step for all 8 poles.
  • Page 21 Door Enclosure Net D-rings on Jumping Mat Cord (Q) 23. Locate the D-ring closest to the door of the net. Thread one end of one of the cords (Q) through the lower eyelet of the enclosure net (P) above the D-ring and then thread the cord through the D- ring.
  • Page 22 25. Tie each end of the cord sections to the last D-ring that it reaches. Make sure that the enclosure net is attached to every D-ring on the trampoline bed. 26. The trampoline and enclosure are now fully assembled. Make sure that all parts are securely attached.

  • Page 23: Spare Parts

    SPARE PARTS To order replacement parts, please contact our Customer Service team: In order to help assist you, please have the following information to hand: Product description, item ID and item description (refer to pages 6-7 to obtain this information)
