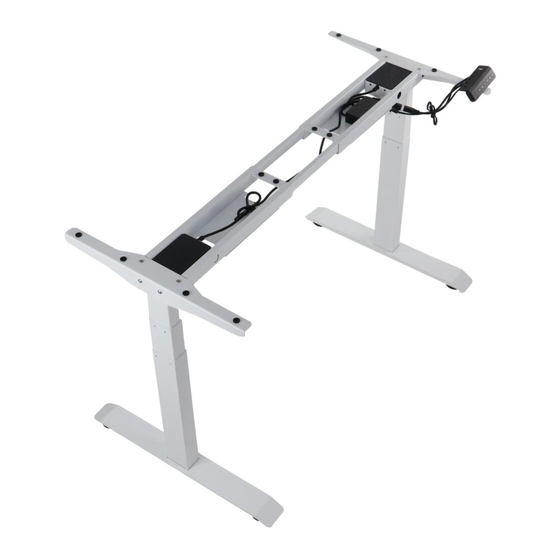

- Page 1 ELECTRIC FRAME PRATO 04-3T Installation guide Page 1...
- Page 2 Specification Stage columns Load capacity 120 kg Max. speed 35 mm/s Input voltage AC 110-240 V Adjustable height 600-1250 mm Duty cycle 10% (2 min on / 18 min off) Working temperature 0-40 st. C Certification Accessories list Page 2...
- Page 3 Diagram Step 1 Unpack all components and check that you have everything shown in the diagram. Slide out of frame 5 completely beams. Step 2 Connect the columns 1 with the frame 5 and then fix them with screws A. Page 3...
- Page 4 Step 3 Fix the feet 2 to the columns 1 with screws A. Attach the leveling feet 3 to the feet 2. Step 4 Insert the beams 6 into the frame 5, adjust the length and lightly tighten with screws B. Step 5 Secure the top pieces 4 with screws A and C.
- Page 5 Step 6 Set the beams 6 in the right position and then screw the upper elements 4 to the table top using screws F. Then tighten screws B. Step 7 Insert the power supply 9 between the beams. Connect the two motors and the power supply to the controller.
- Page 6 Controller instruction „ʌ” - lifting „v” - lowering „1” - position memory 1 „2” - position memory 2 „3” - position memory 3 „S” - position memorization Product first use Before using the desk for the first time, perform a reset operation. 1.
- Page 7 comes to the end and all menu content is saved and "SUS" appears on the screen. If no button is pressed for 10 seconds, the controller will automatically exit the settings menu. Troubleshooting ʌ No response when pressing "v" and " " buttons Check all cable connections Frame lifting speed low Check that the weight does not exceed 120 kg...
- Page 8 EN Please read the manual carefully before assembly and use. If you have any doubts or queries, please contact your local distributor. CAUTION: using the frame with products heavier than the recommended weight may cause loss of stability leading to injury. Please follow the instructions carefully when assembling.
