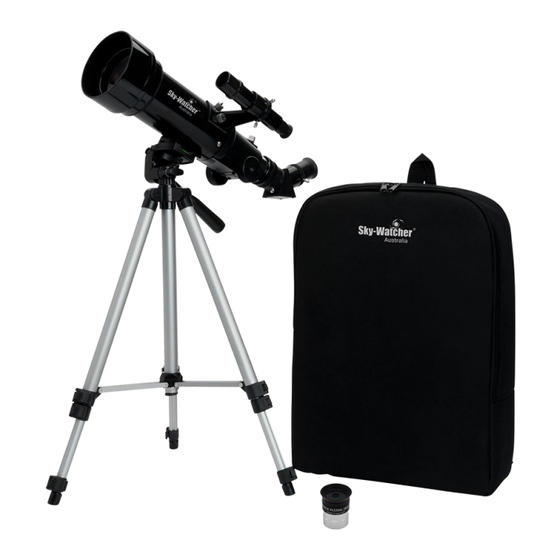

70mm travel telescope

Advertisement

Quick Links

70mm Travel Telescope
(SW704TRAVEL)
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW704TRAVEL and is the answer not in the manual?

Questions and answers

Summary of Contents for SKY-WATCHER SW704TRAVEL

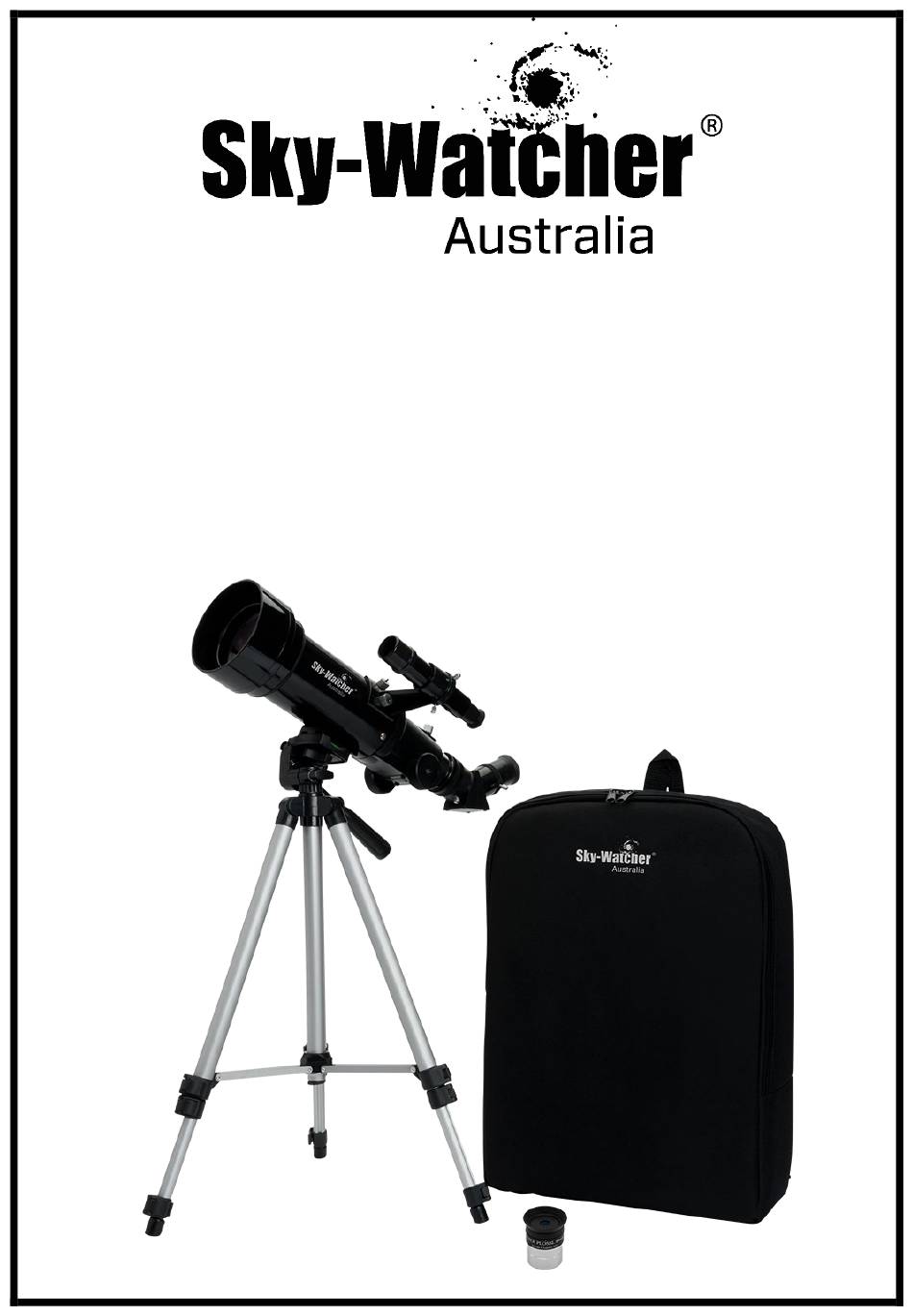

  • Page 1 70mm Travel Telescope (SW704TRAVEL) USER MANUAL...
  • Page 2: Table Of Contents

    Sky-Watcher 70mm Travel Telescope USER MANUAL TABLE OF CONTENTS Introduc�on Pg 3 Package Contents Pg 3 Ini�al Setup Pg 4-6 Using the Telescope Pg 7 Tips Pg 7 Maintenance and Care Pg 8 Safety Precau�ons Pg 8 Troubleshoo�ng Pg 9 Specifica�ons...
  • Page 3: Package Contents

    Sky-Watcher 70mm Travel Telescope USER MANUAL INTRODUCTION Congratula�ons on acquiring your Sky-Watcher 70mm Travel Telescope! Designed for stargazers on the go, this telescope is your gateway to the cosmos, wherever your adventures take you. PACKAGE CONTENTS Ensure your package contains: •...
  • Page 4: Ini�Al Setup

    Sky-Watcher 70mm Travel Telescope USER MANUAL INITIAL SETUP TRIPOD ASSEMBLY 1) Extend tripod legs to desired height and lock them in place. 2) Atach the telescope moun�ng bracket to the top of the tripod. ATTACHING THE TELESCOPE 1) Carefully place the telescope onto the moun�ng bracket and �ghten it securely.
  • Page 5 Sky-Watcher 70mm Travel Telescope USER MANUAL EYEPIECE AND DIAGONAL INSTALLATION 1) Insert the diagonal mirror into the telescope's focuser. 2) Choose an eyepiece (start with the 20mm for wider views) and insert it into the diagonal. 3) Secure the eyepiece with the thumbscrew.
  • Page 6 Sky-Watcher 70mm Travel Telescope USER MANUAL FINDERSCOPE ATTACHMENT 1) Atach the finderscope to its bracket on the side of the telescope. 2) Ensure it is aligned with the main telescope by poin�ng the telescope at object in the distance, with eyepiece centred on object, then adjust finderscope so that it is centred on the same...
  • Page 7: Using The Telescope

    Sky-Watcher 70mm Travel Telescope USER MANUAL USING THE TELESCOPE 1) Point the telescope to the desired object. Use the finderscope for rough alignment. 2) Once the object is centered in the finderscope, look through the main eyepiece and adjust focus.
  • Page 8: Maintenance And Care

    Sky-Watcher 70mm Travel Telescope USER MANUAL MAINTENANCE & CARE • Clean op�cal surfaces with a so�, lint-free cloth. • Store in a cool, dry place away from direct sunlight. • Avoid dropping or bumping the telescope. SAFETY PRECAUTIONS • NEVER look directly at the sun without a proper solar filter.
  • Page 9: Troubleshoo�Ng

    • Highest Prac�cal Magnifica�on: 165x • Finderscope: 5×24 • Eyepieces: 20mm & 10mm • Diagonal: 45° Erect Image Diagonal • Mount Type: Alt-Azimuth Mount • Tripod: Aluminium • Tripod height: 1 meter • Warranty: 5 Year Sky-Watcher Australia Warranty Page | 9...
  • Page 10: Warranty And Support

    If you encounter any issues or have addi�onal ques�ons, please contact our dedicated support team at: sales@skywatcheraustralia.com.au Enjoy your celes�al explora�on with the Sky-Watcher 70mm Travel Telescope. Wishing you clear skies ahead! Page | 10...
