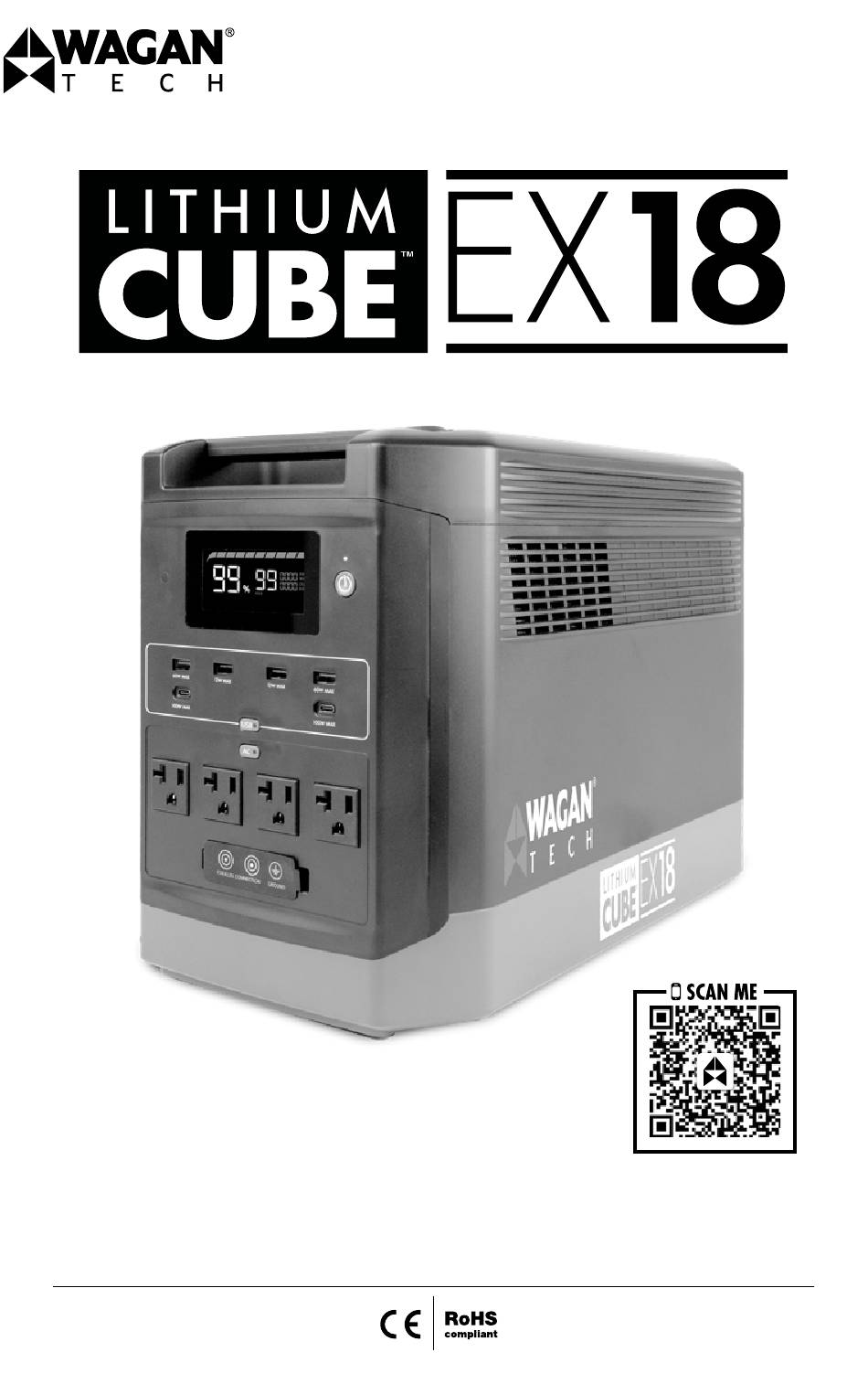

- Page 1 Item No. : 8837 User’s Manual...
-
Page 2: Safety Instruction
Lithium Cube™ EX18 by Wagan Tech ® 1. INTRODUCTION Congratulations on your purchase of Wagan Tech ’s Lithium Cube . The Lithium Cube ® is an advanced electrical system that can power AC appliances and charge a variety of communication and entertainment devices. In an emergency it can power home appliances. On the job site it can power tools where no power lines or generators exist. -
Page 3: Product Details
DC port to connect solar panels to the internal solar charge controller • Rugged handles integrated into the case structure for easy lifting • LiFePO battery for long life © 2023 Wagan Corporation. All Rights Reserved Wagan Tech and wagan.com are trademarks of Wagan Corporation... - Page 4 Lithium Cube™ EX18 by Wagan Tech ® LCD Screen Main Power Button USB-A Output Ports USB-C Output Ports USB Power Button AC Power Button AC Output Sockets AC Output Grounding Terminal Parallel Ports PARALLEL CONNECTION GROUND FRONT Cooling Fans Anderson Output Port...
-
Page 5: What's Included
Output Power AC Output Battery Failure Warning Output Frequency High Temperature DC Output Warning Error Warning LED Light AC Input Low Temperature Fan Indicator Warning © 2023 Wagan Corporation. All Rights Reserved Wagan Tech and wagan.com are trademarks of Wagan Corporation... -
Page 6: Product Operation
The Lithium Cube comes with a built-in 25A MPPT solar controller capable of charging up to 600W. Do not use solar panels with their own built-in solar controller. Wagan is not responsible for any damage caused by using an unofficial charging cable. - Page 7 2. To charge using multiple panels, the best way to do this is by connecting the panels in series. 3. The Wagan Series Solar Cable is wired to connect multiple panels in series. If only two panels are connected, you must connect the jumper cable to the third cable set in order for the panels to charge.
-
Page 8: Output Power
PARALLEL POWER CONNECTION With Wagan’s parallel stacking technology, users can parallel connect two Lithium Cube Power Stations via the Parallel Cable for a maximum power capacity of 2880Wh of AC power and get a continuous power output of 3600W from the AC Outlet of the Parallel Cable or 2400W from the AC Output ports of the Lithium Cube. - Page 9 Black: Neutral Wire Green: Earth Wire Notice: 1. For parallel connections, please use Wagan’s official parallel connectors. Wagan will not be responsible for any safety accident resulting from the use of cables not approved by Wagan. To prevent electric shock, please do not plug any conductive objects into the parallel ports.
-
Page 10: Uninterrupted Power Supply (Ups)
When a sudden blackout occurs, the Lithium Cube automatically switches to uninterrupted power supply mode within 10ms (Milliseconds). Electric devices can automatically be charged by grid power after the grid power is restored. Wagan’s Lithium Cube supports an uninterrupted power switchover mode. -
Page 11: Usb Output
2. Insert USB cable into port. 3. After use, turn off USB power button and remove plugs from port. 4. Recharge the Lithium Cube as soon as convenient. © 2023 Wagan Corporation. All Rights Reserved Wagan Tech and wagan.com are trademarks of Wagan Corporation... -
Page 12: Operating Times
Lithium Cube™ EX18 by Wagan Tech ® 6. OPERATING TIMES Below are typical products that can be operated by the Lithium Cube with estimated operating times. The operating times will vary depending on the internal battery charge level, ambient temperature and the actual AC or DC powered product being operated. The Lithium Cube will not continuously operate AC appliances rated at more than 1,800 watts, such as air conditioners or motors over 12 amps. -
Page 13: User Maintenance
In such case, please recharge before use. • Recharge unit every 6 months • Make sure vents are clean • Keep unit dry • For battery replacement, contact www.wagan.com © 2023 Wagan Corporation. All Rights Reserved Wagan Tech and wagan.com are trademarks of Wagan Corporation... -
Page 14: Troubleshooting
Lithium Cube™ EX18 by Wagan Tech ® 8. TROUBLESHOOTING Indicator/Content Problem Solution Remove the overload devices and turn Overload Protection off the AC output. One minute later, Switch pops up. UPS Overload press the UPS Overload Circuit Breaker. Normal operation will resume after Icons flash together. - Page 15 10.4°F and above, restart it without con- necting to other devices. Battery Over Please discharge the unit via the DC Voltage Output Port or USB-C Port. © 2023 Wagan Corporation. All Rights Reserved Wagan Tech and wagan.com are trademarks of Wagan Corporation...
- Page 16 Lithium Cube™ EX18 by Wagan Tech ® Indicator/Content Problem Solution Battery Low Please recharge the unit with grid Voltage power through the AC Input Port. AC Input Grid The grid power should be replaced with Voltage the correct voltage if the input voltage Abnormal requirements of the product are not met.
-
Page 17: Specifications
1000W max, 50/60Hz, 100V−132V Solar Input 25A, 600W max, 11V−70V DC, MPPT Solar/Car Input Port Type Anderson Car Charger 120W max, 11V−15V, 8.5A max © 2023 Wagan Corporation. All Rights Reserved Wagan Tech and wagan.com are trademarks of Wagan Corporation... -
Page 18: Optional Accessories
Lithium Cube™ EX18 by Wagan Tech ® Environmental Operating Temperature Optimal Operation Temperature 68°F − 86°F Storage Temperature −4°F − 113°F Charging Temperature 32°F − 113°F DIscharging Temperature −4°F − 113°F 11. OPTIONAL ACCESSORIES AA5476 Parallel Connection Cable AA5477 Solar Series Cable... - Page 19 Product is warranted to the original purchaser for a period of two (2) years from the original purchase date, to be free of defects in material and workmanship. WAGAN Corporation disclaims any liability for consequential damages. In no event will WAGAN Corporation be responsible for any amount of damages beyond the amount paid for the product at retail.
- Page 20 US & CAN Toll Free : +1.800.231.5806 Telephone : +1.510.471.9221 31088 San Clemente Street Hayward, CA 94544 U.S.A. ©2023 Wagan Corporation. All Rights Reserved Wagan Tech and wagan.com are trademarks of Wagan Corporation REV20231116-En...
