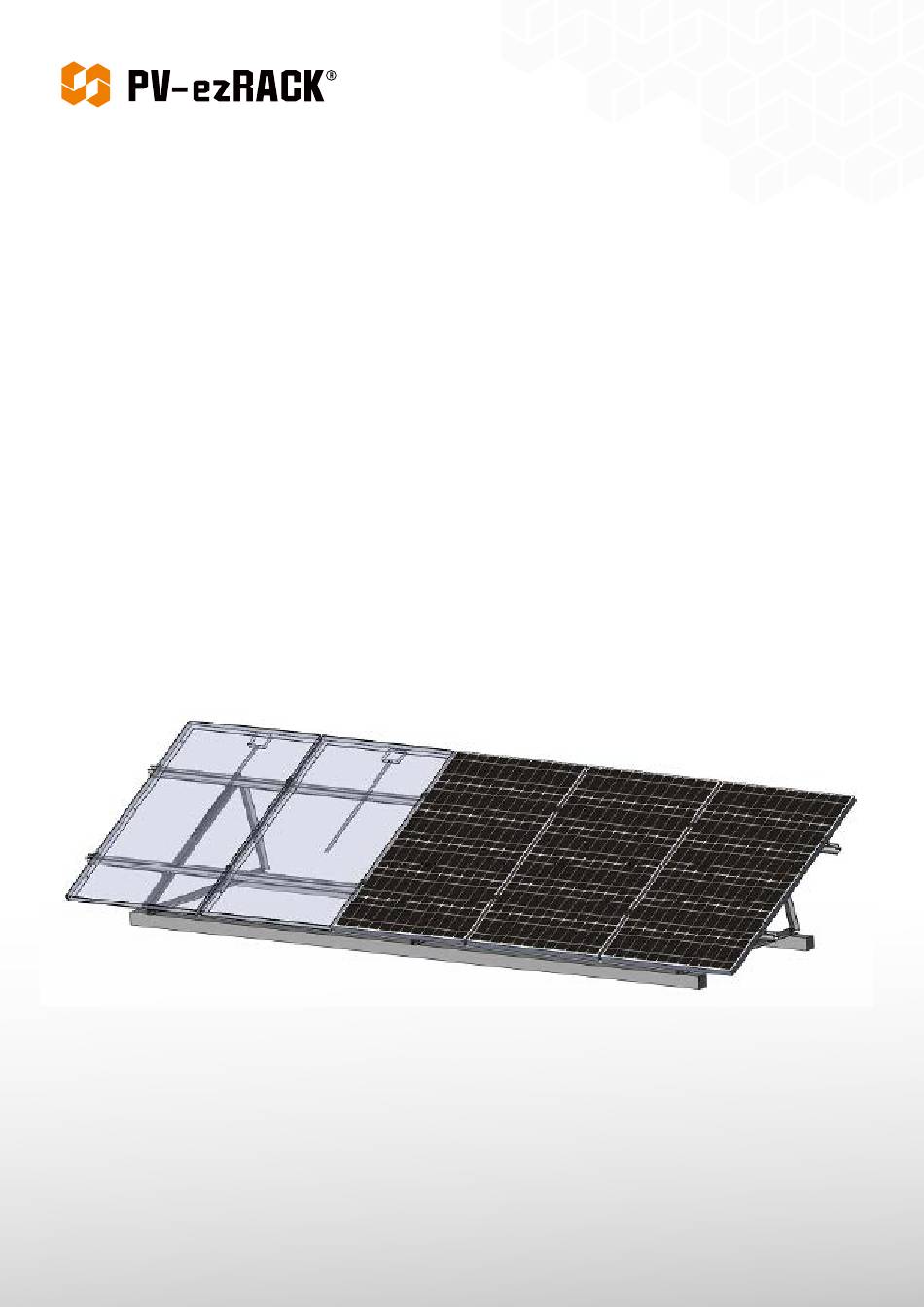

- Page 1 SolarTripod Lite Installation Guide V 1.1 NO.: PZ35-IM02-11 Last Updated - May. 2022...
- Page 2 Certification applications relating to PV-ezRack® SolarTripod Lite. When installed in accordance with this guide, the PV-ezRack® SolarTripod Lite parts will be structurally adequate. During installation please comply with the appropriate occupational health and safety regulations. Please also pay attention to other relevant regulations of your local region.
- Page 3 Installation Guide / SolarTripod Lite Tools and Components Tools Allen Key Adjustable Torque Wrench 5m Tape Marker Pen Spanner 6&8 mm String Note: the above tools are used for mounting system installation only and not included in Clenergy’s supply scope. Any tools for electronic parts installation please consult system installer.
- Page 4 Installation Guide / SolarTripod Lite System Overview System overview of SolarTripod Lite 1. End Clamp 2. Support for SolarTripod Lite 3. Inter Clamp 4. ECO-Rail 5. Splice for ECO-Rail Stainless Steel Fastener Installation Precautions: Improper operation may lead to bolt and nut deadlock. Follow the steps below to reduce this risk.
- Page 5 4. These steps should be applied for every stainless steel nut and bolt assembly. Installation Dimensions All drawings and dimensions in this installation guide are for a generic reference. The PV-ezRack® SolarTripod Lite is optimized to suit the specific conditions for each project and documented in a construction drawing. As a result, major components of the Clenergy PV-ezRack®...
- Page 6 Side View Axial View Use PV modules 1650x990x40 (1 row*5 arrays; installation angle is 30°) as example to illustrate how to install PV-ezRack® SolarTripod Lite. All dimensions relating to engineering have to conform to technical drawings for specific project. - System Overview -...
- Page 7 Installation Guide / SolarTripod Lite Installation Instructions Install Support for SolarTripod Lite According to installation planning, unfold the Support for SolaTripod Lite, and use M8 washer, spring washer and nut to fix Base Support on position to be installed as shown in Figure 1 and 2.
- Page 8 Installation Guide / SolarTripod Lite ECO-Rail Installation Use Splice for ECO-Rail to connect ECO-Rails and fasten with M8 bolt assemblies tightly as shown in Figure 5. Recommended torque :18-20 N·m. for M8 bolt Figure 5 Use Rail Clamp for ECO-Rail or with grounding/earthing pins to fix the connected ECO-Rail on the Upper Support and fasten bolts tightly as shown in Figure 6.
- Page 9 Installation Guide / SolarTripod Lite PV Module Installation According to engineering drawing, place the first PV module on appropriate position. Slide the End Clamp and Inter Clamp tightly against the PV module and fasten them as shown in Figure 8.
- Page 10 Installation Guide / SolarTripod Lite Certification - Certification - Installation Guide V 1.1 - NO.: PZ35-IM02-11...
- Page 11 Installation Guide / SolarTripod Lite - Certification - Installation Guide V 1.1 - NO.: PZ35-IM02-11...
- Page 12 Installation Guide / SolarTripod Lite - Certification - Installation Guide V 1.1 - NO.: PZ35-IM02-11...
- Page 13 Installation Guide / SolarTripod Lite - Certification - Installation Guide V 1.1 - NO.: PZ35-IM02-11...
- Page 14 Installation Guide / SolarTripod Lite - Certification - Installation Guide V 1.1 - NO.: PZ35-IM02-11...
- Page 15 Installation Guide / SolarTripod Lite - Certification - Installation Guide V 1.1 - NO.: PZ35-IM02-11...
- Page 16 Installation Guide / SolarTripod Lite - Certification - Installation Guide V 1.1 - NO.: PZ35-IM02-11...
- Page 17 Installation Guide / SolarTripod Lite - Certification - Installation Guide V 1.1 - NO.: PZ35-IM02-11...
- Page 18 Installation Guide / SolarTripod Lite - Certification - Installation Guide V 1.1 - NO.: PZ35-IM02-11...
- Page 19 Clenergy 1/10 Duerdin St Phone: +61 3 9239 8088 Clayton VIC 2168 Email: sales@clenergy.com.au Australia Web: www.clenergy.com.au @ClenergyGlobal / @ClenergyClub / ClenergyAUS @Clenergy @ClenergyClub @Clenergy_global @Clenergy A Clenergy Technologies Company...
