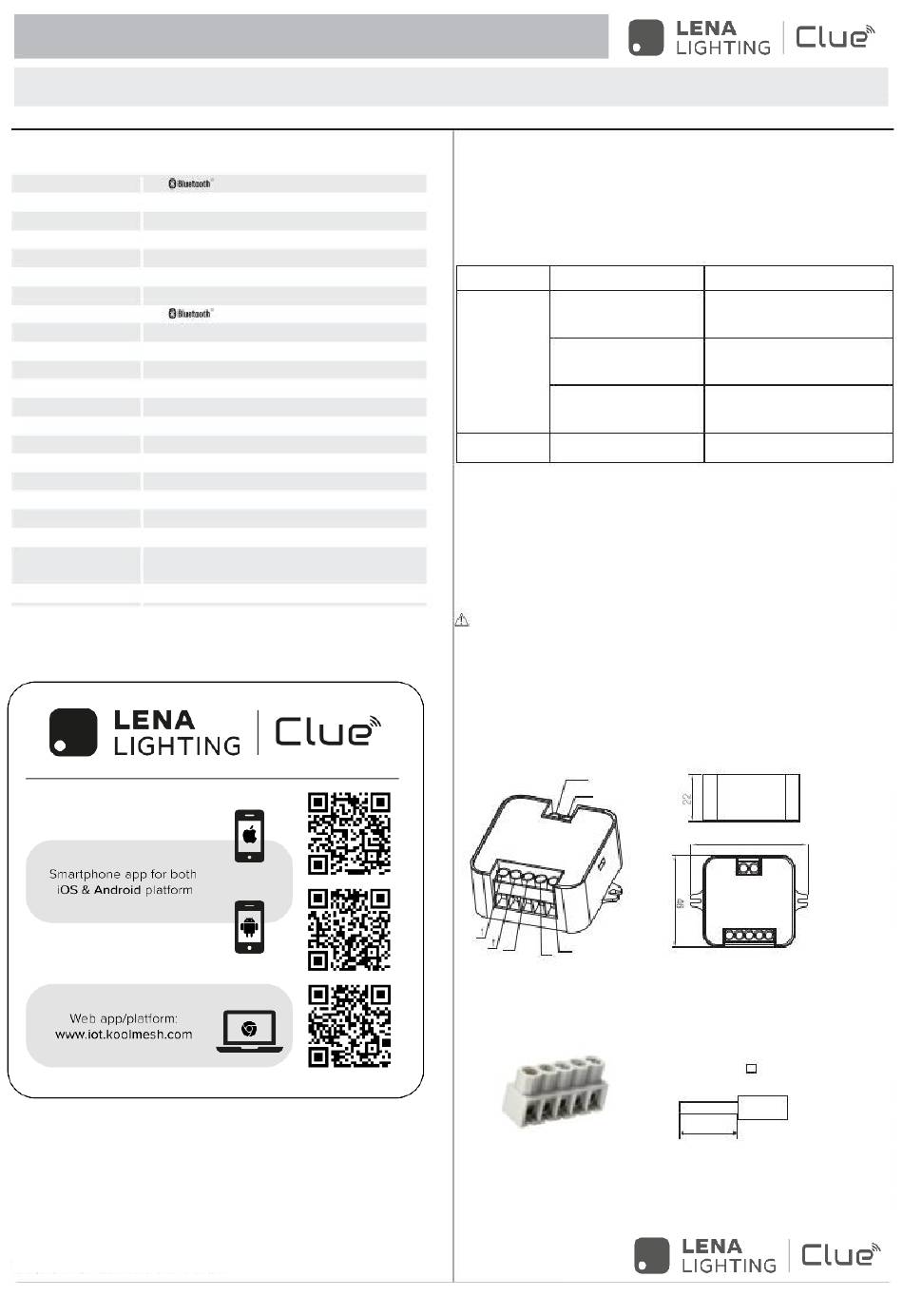

Installation and Instruction Manual
Bluetooth Receiver Node - DALI Version
1. Technical Specifications
Product type
Mains voltage
220~240VAC 50/60Hz
Rated load
Max.100mA, 50 devices
Stand-by power
<0.5W
Operation frequency
2.4 GHz - 2.483 GHz
Transmission power
4 dBm
10 ~ 30m
Range (Typical)
Protocol
Operation temperature
Ta: -20°C ~ +45°C
Case temperature (Max.)
Tc: +75°C
-20°C ~ +60°C
Storage temperature
Max. relative humidity
20 ~ 90%
IP rating
IP20
Impulse withstand voltage
2.5KV
Duty type
S1
Insulation material
PTI material group IIIa
Glow wire
level 3, 850°C
Protection
Built-in protection provide
Insulation
Class II
EMC standard (EMC)
EN55015, EN61547, EN61000-3-2, EN61000-3-3
IEC 61058-1, EN 61058-1, IEC 61058-1-2
Safety standard (LVD)
EN 61058-1-2, AS/NZS 61058.1
Radio Equipment (RED)
EN300 328, EN301489-1, EN301489-17, EN62479
2. Download the App
Free App for set-up and commissioning
iOS
Android
Smartphone app for both iOS & Android platform
Koolmesh Pro app for iPad
Web app/platform: www.iot.koolmesh.com

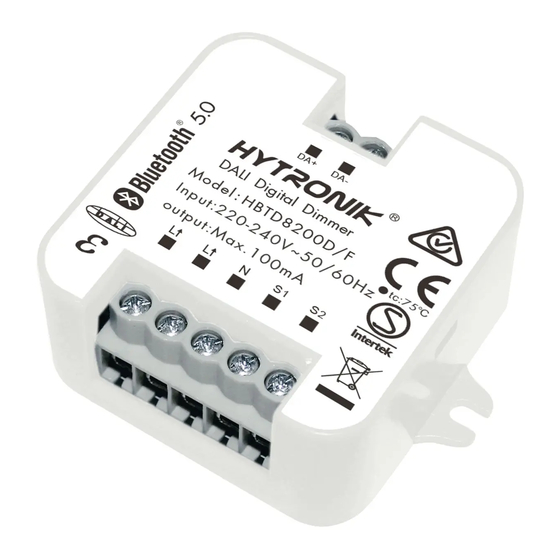

DALI Digitial Receiver Node (Flush mount)
5.0 SIG Mesh
5.0 SIG mesh
for iOS
for Android
for iPad
Web
for Web
WSE0011|624667 (HBTD8200D/F)
Switch-Dim
The provided Switch-Dim interface allows for a simple dimming method using commercially available
non-latching (momentary) wall switches. Detailed Push switch configurations can be set on Koolmesh app.
Switch Function
Action
Short press (<1 second)
* Short press has to be longer than
0.1s, or it will be invalid.
Push switch
Double push
Long press (≥1 second)
Simulate sensor
/
4. Installation
Warnings:
1. Installation must be carried out by a qualified engineer in accordance with local
regulations.
2. Disconnect power supply before installing.
3. Ensure environmental conditions are suitable for electronic equipment.
DA+
DA-
L
L
N
S2
S1
Rising clamp terminal.
1. 200 metres (total) max. for 1mm² CSA (Ta = 50℃)
2. 300 metres (total) max. for 1.5mm² CSA (Ta = 50℃)
Descriptions
- Turn on/off
- Recall a scene
- Turn on only
- Exit manual mode
- Turn off only
- Do nothing
- Turn on only
- Exit manual mode
- Turn off only
- Do nothing
- Recall a scene
- Dimming
- Colour tuning
- Do nothing
- Upgrade a normal on/off motion sensor
to a Bluetooth controlled motion sensor
58
mm
0.75 - 4
8mm
HBTD8200D/F-20200403-A2
