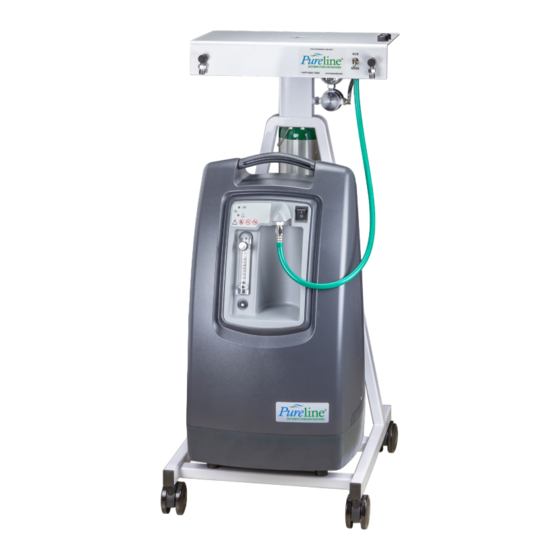

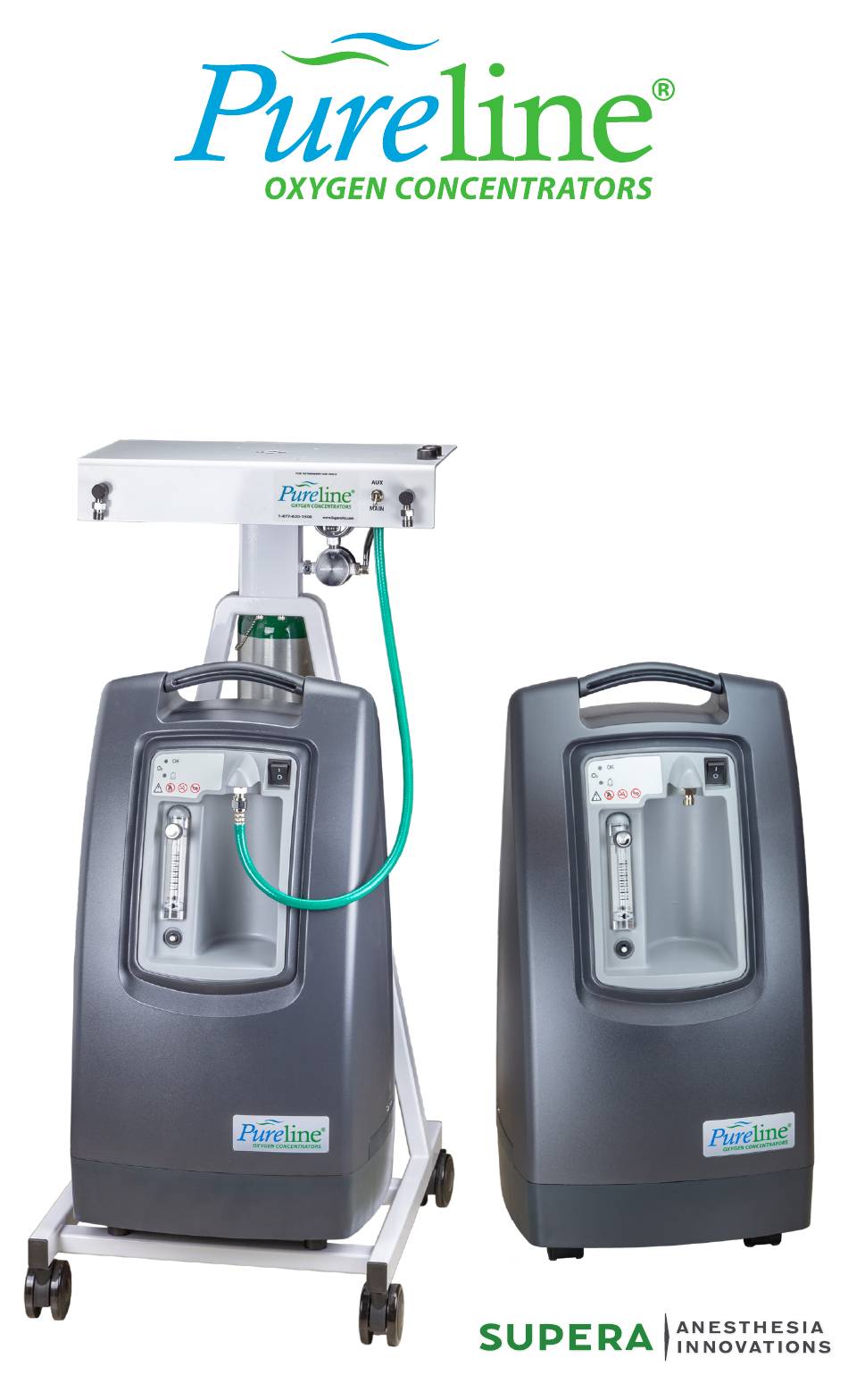

- Page 1 Operators Manual Models OC8000, OC8200 For Veterinary Use Only Supera , LLC Copyright 2023...
- Page 3 Examination and Preparation for Use Thank you for ordering an Supera Anesthesia Innovations Purline oxygen Concentrator! We are delighted to have you as a Supera Anesthesia Innovations customer and want you to be completely satisfied with your purchase. Please inspect the contents of your order to see if everything is as you expected.
- Page 4 Frame Assembly Step #1 “A” Frame Top 3/16” Hex Wrench Match “A” Labels Base With Wheels...
- Page 5 OC8200 & M8000 Assembly * NOTE: THIS REQUIRES TWO PEOPLE TO SAFELY ASSEMBLY * 1. Unpack the top assembly and frame from the box 2. Align the top assembly to the frame as shown. NOTE: The frame base has two cross bars with holes in them for mounting the concentrator.
- Page 6 Oxygen Concentrator Mounting 1. Remove the oxygen concentrator from the box and guide the four threaded post into the frame 2. Install and tighten the nuts. * DO NOT OVER TIGHTEN THE NUTS, SNUG FIT IS ALL THAT IS NEEDED *...
-
Page 7: Do Not Over Tighten
Oxygen Hose Setup Attach the green hose from your anesthesia machine to one of the threaded fittings. NOTE: Both output the same DO NOT OVER TIGHTEN Attach the green hose from the OC8200 top assembly to the threaded fitting on the concentrator. DO NOT OVER TIGHTEN... - Page 8 Auxiliary & Main Oxygen Switch MAIN Switch Position With the switch in the “MAIN” position the supply of oxygen to the anesthesia machine comes directly from the oxygen concentrator. NOTE: It does not fill the “E” tank. AUXILARY Switch Position With the switch in the “AUX”...
-
Page 9: Glossary Of Symbols
OC8000 OXYGEN CONCENTRATOR FOR VETERINARY USE ONLY GLOSSARY OF SYMBOLS : ON (power switched on) : Technical information : OFF (power switched off) : Consult the accompanying documents : Class II protection : Keep in the vertical position : Do not expose to open... -
Page 10: General Safety Guidelines
GENERAL SAFETY GUIDELINES Only persons who have read and understood this entire manual should be allowed to operate the O2 concentrator The CAUTIONS below indicate a The WARNINGS below indicate a potentially hazardous situation. potential hazardous situation. conditions are not avoided a situation conditions are not avoided a situation could occur that results in property could occur that results in serious injury... -
Page 11: Method For Disposing Of Device
CONFORMITY WITH IEC60601-1 1.1 METHOD FOR WASTE DISPOSAL (2nd Edition) All waste from the device (Patient Circut, "The manufacturer, assembler, installer Filters, Etc.) must be disposed of using or distributor are not considered to methods appropriate to the civil authority be responsible themselves for the of the location where disposed. - Page 12 2.1. Front panel (Fig. 2.1) I/O (ON/OFF) switch Indicator lights Oxygen product outlet Circuit breaker Flow meter 3.1 Turning on device a. Plug the power cable into a power outlet (Fig. 3.3) of the correct voltage and frequency as defined on the NOTE: manufacturer's technical label TURN THE ANESTHESIA MACHINES...
-
Page 13: Cleaning & Maintenance
(Item 3 Fig.4.2) The fine intake filter should be replaced an- nually or every 2000 hours of use. More Fig. 4.1 frequently dusty /dirty environments. P/N OC8000-2 Fig. 4.2 1. Filter / Silencer 2. Cabinet filter Note: Shown with grate removed... -
Page 14: Useful Information
Cabinet Air Filter ....Polyester THE WARRANTY. I/0 (On/Off) switch...... Nylon THE COARSE CABINET FILTER SHOULD BE CLEANED AS NEEDED IN YOUR ENVIRONMENT. P/N OC8000-1 CHANGE FINE INTAKE FILTERS EVERY 2000 HOURS OR MORE OFTEN DEPENDING ON ENVIRON- MENT. P/N OC8000-2 5. - Page 15 5.4.2. Safety devices 5.4.3 Indicators (continued) • Compressor motor • The red indicator warns of a process fault. One event that can Thermal safety is ensured by a thermal cause the red indicator to be illumi- switch situated in the motor winding nated is low oxygen concentration.
- Page 16 5. 5. OCSI (oxygen concentration 5.6. Technical characteristics status indication module) function Dimensions: L x W x H: 394 x 396 x 5.5.1. Operating principle 706 mm (15.5 x 15.6 x 27.8 in.) Caster diameter: 50 mm (2.0 in.). The oxygen monitor (Fig 5.1) is an Tilt angle (transport with humidifier fitted): 70 electronic module capable of checking...
-
Page 17: Preventive Maintenance
Electrical power supply: 115 V Units 230 V Units Frequency: 60Hz 50/60Hz Average Power: 490 watts 490/585 watts Protection Class: Class II Class II Mains Protection: Environmental limit conditions The performances of the device (especially the oxygen concentration) are quoted at 21 C (70 F) and one atmosphere. - Page 18 The I/O (ON/OFF) button is in the "I" (ON) position, the compressor is oper- ating and there is a flow but the audible alarm sounds continuously. The compressor stops in mid-cycle, then starts again after a few minutes. Maintenance Items Cabinet Air Filter: OC8000-1 Wash weekly; Replace as needed. Inlet Air Filter: OC8000-2...
- Page 19 Possible Causes Solutions Power cord is not correctly Check the cable connection. plugged into the wall outlet. Power failure. Check the circuit breaker (5) on the front of the unit; Reset if necessary. Oxygen concentration is too low. Contact your equipment supplier. Capacitor is not charged Backup capacitor has discharged operate unit for approximately 10...
-
Page 20: Maintenance
MAINTENANCE Anesthesia Machine The anesthesia machine should be serviced by a certified technician. Only certified service companies will have the factory specifications and access to original replacement parts. Annual Preventative Maintenance Service Service will include: Pre–service low and high pressure test. Inspection and replacement of hoses, gaskets and seals as needed. - Page 21 Warranty / Return Policy Supera Anesthesia Innovations warrants Pureline oxygen concentrators that each product or part shall be free from defects in workmanship and materials, under normal use and with appropriate maintenance, for 3 (three) years from the date of purchase. For plastic, rubber, filters and...
-
Page 22: Shipping Policy
SHIPPING POLICY 1. Do Not Sign The Bill Of Lading Until You Have Inspected The Box Or Crate. 2. Examine the box AS it is delivered and BEFORE the truck/driver leaves. 3. If there is any evidence of damage when it arrives, note it in detail with the phrase “possible concealed damage”... - Page 23 DOCUMENTATION Date purchased: Purchased from: Machine serial number: Machine service information Service Date: Service information: Service Date: Service information: Service Date: Service information:...
- Page 24 Contact Information (503) 723-5068 or (877) 620-1500 toll-free E-Mail: info@superavet.com 1220 NW Noble Drive, Estacada OR 97023 Training videos available on our website www.SuperaVet.com MADE IN oREGON, uSA since 1993...
