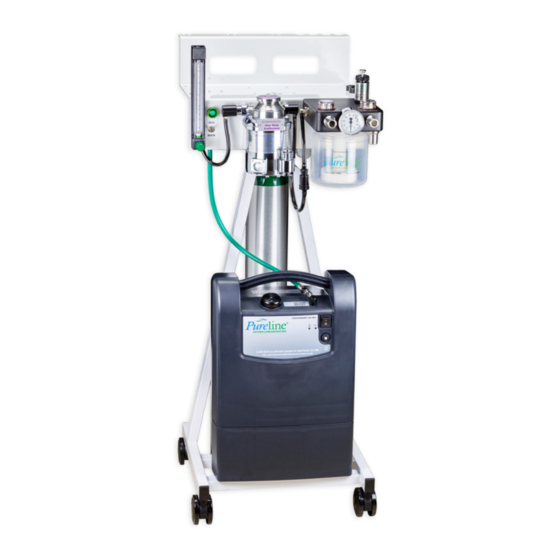

*Shown with optional vaporizer
For Veterinary Use Only
OXYGEN CONCENTRATORS
M6000 & M6100
Operators Manual
Model M6100
*Shown with optional vaporizer
Scivena Scientific , LLC Copyright 2021
©

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M6000 and is the answer not in the manual?

Questions and answers

Related Manuals for Pureline M6000

Summary of Contents for Pureline M6000

  • Page 1 OXYGEN CONCENTRATORS M6000 & M6100 Operators Manual Model M6100 Model M6000 *Shown with optional vaporizer *Shown with optional vaporizer © For Veterinary Use Only Scivena Scientific , LLC Copyright 2021...
  • Page 3 Examination and Preparation for Use Thank you for ordering an Scivena Scientific anesthesia machine! We are delighted to have you as a Scivena Scientific customer and want you to be completely satisfied with your purchase. Please inspect the contents of your order to see if everything is as you expected.
  • Page 4 TABLE OF CONTENTS Machine Assembly Attaching the top assembly to frame Attaching the oxygen concentrator Connecting the supply hose Oxygen Concentrator Features Operation Instructions Maintenance Features & Accessories Safety Pop Off Valve Rebreathing circuits Non-rebreathing circuits I.V. Pole Optional Items Waste gas evacuation Universal control arm for Bain circuits Technical Information...

  • Page 5: Machine Assembly

    Machine Assembly * NOTE: THIS REQUIRES TWO PEOPLE TO SAFELY ASSEM- BLE * 1. Carefully unpack the top assembly and frame from the box 2. Align the top to the frame as shown. NOTE: The frames base has two cross bars with holes in them for mounting the concentrator.
  • Page 6 1. Remove the oxygen concentrator from the box and guide the four threaded post into the frame 2. Install and tighten the nuts. * DO NOT OVER TIGHTEN THE NUTS, SNUG FIT IS ALL THAT IS NEEDED *...
  • Page 7 1. Attach the green hose to the threaded fitting. * DO NOT OVER TIGHTEN *...
  • Page 8 Model M6100 non-rebreathing anesthesia machine Includes a stainless steel storage tray and 3/8” post bulkheads for mounting accessories (i.e. I.V. poles, multi-port manifolds, etc)
  • Page 9 OXYGEN CONCENTRATORS USER'S GUIDE OC4000 OXYGEN CONCENTRATOR FOR VETERINARY USE ONLY GLOSSARY OF SYMBOLS : ON (power switched on) : Do not use oil or grease : OFF (power switched off) : Technical information : Consult the accompanying documents : Keep in the vertical position : Class II protection : Fragile - handle with care : Do not expose to open flames...

  • Page 10: General Safety Guidelines

    GENERAL SAFETY GUIDELINES Only persons who have read and understood this entire manual should be allowed to operate the O2 concentr The CAUTIONS below indicate a potentially The WARNINGS below indicate a potential hazardous situation. If conditions are not hazardous situation. If conditions are not avoided a situation could occur that results avoided a situation could occur that results in property damage or minor injury or both.
  • Page 11 CONFORMITY WITH IEC60601-1 (2nd 1.1 METHOD FOR WASTE DISPOSAL Edition) All waste from the device (Patient Circut, "The manufacturer, assembler, installer Filters, Etc.) must be disposed of using or distributor are not considered to methods appropriate to the civil authority be responsible themselves for the of the location where disposed.
  • Page 12 2.1. Front panel (Fig. 2.1) I/O (ON/OFF) switch Indicator lights Oxygen product outlet Circuit breaker Pre-set flow meter (non-adjustable)

  • Page 13: Cleaning & Maintenance

    3.1 Turning on device 4. CLEANING - MAINTENANCE Only the outside of the concentrator is to a. Plug the power cable into a power outlet be cleaned. Use a damp sponge or cloth (Fig. 3.3) of the correct voltage and frequency with water only.

  • Page 14: Useful Information

    4.3. Maintenance 5.2. Materials in direct or indirect contact with the product output NO INTERNAL MAINTENANCE IS REQUIRED OR SHOULD BE Concentrator casing ........ABS PERFORMED. Power Cord ........... PVC Cabinet Air Filter ......Polyester I/0 (On/Off) switch........Nylon OPENING THE CASE WILL Casters..........Nylon Oxygen product outlet ....Aluminum VOID THE WARRANTY.
  • Page 15 Process fault 5.4.3 Indicators (continued) • In the case of a process fault, a visible and • The red indicator warns of a process audible alarm is activated (continuous red fault. One event that can cause the light or lighted alarm and audible alarm). red indicator to be illuminated is low oxygen concentration.
  • Page 16 5.5.4 Maintenance of the Device Alarms 5. 5. OCSI (oxygen concentration status indication module) function No special maintenance is required. The alarm set-point is factory set and the setting 5.5.1. Operating principle cannot be adjusted. All models are set at 84%. The oxygen monitor (Item 2 Fig 2.1) is an The equipment supplier verifies that the electronic module capable of checking the...

  • Page 17: Preventive Maintenance

    Electrical power supply: Rating: 115/230V 60Hz 230V 50Hz Average Power: 330W(avg) 300 W(avg) Protection Class: Class II Class II Mains Protection: Filters: At the rear of the device: a cabinet air filter. At the compressor input: an inlet air filter, 5 µm, located behind the cabinet air filter.

  • Page 18: Troubleshooting

    5.8. Troubleshooting. Observations Possible Causes Solutions Check the cable connection. Power cord is not correctly The I/O (ON/OFF) button is in the "I" plugged into the wall outlet. Check the circuit breaker (5) (ON) position but the device does on the front of the unit; Reset if not operate.
  • Page 19 Anesthesia Machine Operation & Optional Accessories...
  • Page 20 Safety Pop Off Valve Normal Operation Screw-down pop-off valve open with push-button valve up In this position the breathing circuit is fully open. The manom- eter should read "0" with slight fluctuations during respiration. Squeezing the rebreathing bag should not create pressure in the breathing circuit.
  • Page 21 Machine Leak Test 1. Close pop off valve (turn knob clockwise) 2. Depress plunger valve in the center and hold 3. Plug the end of the rebreathing hose 4. Add pressure to the system until the manometer reads 30 cmH20 Hold the pressure for ten seconds.
  • Page 22 Auxiliary & Main Oxygen Switch MAIN Switch Position With the switch in the “MAIN” position the supply of oxygen to the anesthesia machine comes directly from the oxygen concentrator. NOTE: It does not fill the “E” tank. AUXILARY Switch Position With the switch in the “AUX”...
  • Page 23 Accessories I.V. Pole (included) Shown with optional universal control arm for Bain circuits P/N MA2013 safety pop off valve (shown) P/N MA2012 Regular pop off valve (not shown)

  • Page 24: Features And Accessories

    Features & Accessories Bag & circuit organizer Optional F-Air evacuation kit P/N EVC555...
  • Page 25 Waste Gase Evacuation Optional waste gas interface valve P/N EVC630 for use with fan based evacua- tion systems like our p/n/ EVC3000 Optional waste gas interface valve P/N EVC629 for use with vacuum pump based evacuation systems like our p/n/ EVC3100...

  • Page 26: Common Gas Outlet

    Circuits CIR518 - Non-Rebreathing Modified Jackson-Rees Common Gas Outlet The Non–rebreathing system connects to the common gas outlet of the anesthesia machine. 1. Disconnect the common gas outlet from the rebreathing head. (quick disconnect fittings) 2. Plug the 15mm male connector from the non–rebreathing system into the com- mon gas outlet of the anesthesia machine.
  • Page 27 Circuits CIR529 & CIR529P Rebreathing Unilimb circuits Unilimb design removes clutter and disorder from the anesthesia field. Patients exhaled breath acts as a thermal wrap to maintain the temperature and humidity of inspired gases. The swivel connector at the patient end elimi- nates kinking of the tubing.

  • Page 28: Maintenance

    MAINTENANCE Anesthesia Machine The Scivena Scientific anesthesia machine should be serviced by a certified techni- cian. Only certified service companies will have the factory specifications and access to original replacement parts. Annual Preventative Maintenance Service Service will include: Pre–service low and high pressure test. Inspection and replacement of hoses, gaskets and seals as needed.

  • Page 29: Warranty / Return Policy

    Warranty / Return Policy Scivena Scientific is proud to offer our customers the best warranty in the veterinary industry—a full ten years on the anesthesia machine and three years on the oxygen concentrator. Scivena Scientific Limited Warranty Scivena Scientific guarantees its products to be free of defects in design, materials, and workman- ship from the date of purchase, ten years on the anesthesia machine and three years on the oxygen concentrator.
  • Page 30 SHIPPING POLICIES 1. Do Not Sign The Bill Of Lading Until You Have Inspected The Box Or Crate 2. Examine the box AS it is delivered and BEFORE the truck/driver leaves. 3. If there is any evidence of damage when it arrives, note it in detail with the phrase “possible con- cealed damage”...
  • Page 31 DOCUMENTATION Date purchased: Purchased from: Machine serial number: Vaporizer serial number: Machine service information Service Date: Service information: Service Date: Service information: Service Date: Service information:...
  • Page 32 (503) 655-2012 or (877) 615-5632 toll-free E-Mail: CS@ScivenaScientific.com 1220 NW Noble Drive, Estacada OR 97023 www.ScivenaScientific.com...
