Summary of Contents for Pureline Crystal Pure 3.0 ABG

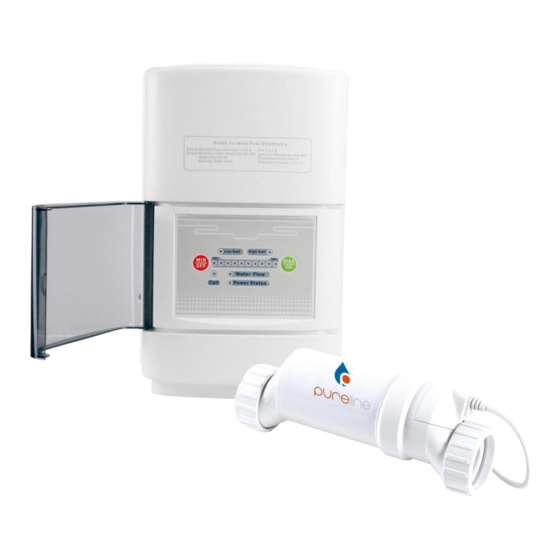

- Page 1 SALT CHLORINATOR FOR ABOVE GROUND POOLS Crystal Pure 3.0 ABG rystal Pure 3.0 ABG...
-
Page 2: Table Of Contents
Table of Contents IMPORTANT SAFETY INSTRUCTIONS: ..........1 WATER CHEMISTRY: ................2 INTRODUCTION: ..................2 ADDING SALT: ..................3 INSTALLATION: ..................5 INSTALL THE CONTROL: ..............5 SYSTEM OVERVIEW: ................5 INSTALL THE CELL: ................5 OPERATION: ..................7 MAINTENANCE: ..................8 TROUBLESHOOTING: ................10 WARRANTY: ...................11... -
Page 3: Important Safety Instructions
INSTRUCTIONS READ BEFORE USE There are basic safety precautions that you need to follow to be safe. Including： WARNING Risk of Electric Shock. All electrical wiring MUST be in conformance with all applicable local codes, regulations, and the National Electric Code ® (NEC®). WARNING To reduce the risk of injury, do not permit children to use this product. -
Page 4: Water Chemistry
The Crystal Pure 3.0 ABG Salt water chlorination is a process that uses dissolved salt for the chlorination of swimming pools. The chlorine generator uses electrolysis in the presence of dissolved salt to produce chlorine gas or its dissolved forms, hypochlorous acid and sodium hypochlorite, which are already commonly used as sanitizing in pools. -
Page 5: Adding Salt
HOW TO ADD SALT When adding salt to the pool, it is best to pour the required salt into the shallow end of the pool and run the filter and pump at the same time to circulate the water and dissolve the salt. Do not pour the salt bag into the water because the chemicals and ink on the bag will disturb water balance. -
Page 7: Installation
INSTALL THE CONTROL The The Crystal Pure 3.0 ABG control unit must be mounted a minimum of 6 ft. (2 meters) horizontal distance (or more if local codes require) away from the pool. The control is designed to mount vertically on a flat surface with the knockouts facing downward and not to block the four sides of the control. - Page 8 The Crystal Pure 3.0 ABG from energizing the electrolytic cell. In this position there is no chlorine generation. LOW SALT: When flashing, the salt level is low and the The Crystal Pure 3.0 ABG generating at low efficiency. When illuminated steady, the salt level is too low and the...
-
Page 9: Operation
If it is flashing, the flow is restored. LOW SALT: When it is on or flashing, The Crystal Pure 3.0 ABG salinity is too low to work. Note: Before adding large quantities of salt, it is recommended to have your salt level professionally checked. -
Page 10: Maintenance
model, it will take you days to find ideal chlorine output, you can start at a high setting and then turn down. MAINTENANCE When checking other water chemistry levels, always monitor the salinity level of the swimming pool.After the system runs for a period of time, it will eventually need to clean the cells due to the scaling of natural minerals. - Page 11 2) In a separate bucket, mix one part of muriatic acid with four parts of water. Pour this acid solution directly to cell. Make sure that the cleaning water completely covers the components inside the cell. 3) Wait for the foaming to stop. Let the solution soak for no more than fifteen minutes. 4) Properly dispose of the acid solution, and use a hose to wash away the remaining debris from the pool.
-
Page 12: Troubleshooting
3. Activate Super Chlorination mode or chemically shock pool. 4. Remove Cell from plumbing, then inspect and clean. 5. Cold water (below 50F) can cause the The Crystal Pure 3.0 ABG to stop generating. 6. Low pH oxidizes chlorine quickly, making it difficult to maintain desired chlorine levels. -
Page 13: Warranty
TWO YEARS LIMITED WARRANTY (For RESIDENTIAL USE) Guarantee that The Crystal Pure 3.0 ABG will be free from defects in materials and workmanship, defects in normal use and non-commercial applications within one (1) year or two (2) years specified below. - Page 14 B. Damage due to improper installation or connection to improper voltages, including materials and workmanship supplied by others. C.Damage due to negligence or failure to properly maintain equipment, including the maintenance of clean and tight electrical connections. D. Damage due to improper service, as well as unauthorized equipment modifications and use of non-genuine replacement parts.
