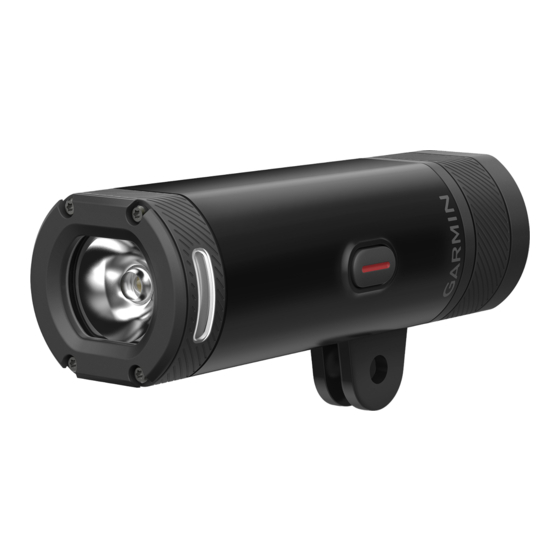

- Page 1 User Manual of Product 1: Garmin 010-01674-00 Varia UT 800 Trail Edition Smart Headlight with Helmet Mount User Manual of Product 2: Garmin Speed Sensor 2 and Cadence Sensor 2 Bundle, Bike Sensors to Monitor Speed and Pedaling Cadence...
- Page 2 VARIA UT800 ™ Owner’s Manual...
- Page 3 © 2017 Garmin Ltd. or its subsidiaries All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com...
-
Page 4: Table Of Contents
Table of Contents Introduction........1 Installing the Out-Front Mount....2 Installing the Helmet Mount....5 Device Overview........6 Turning On the Device......6 Bike Light Status LEDs......6 Device Settings........ 6 Pairing Your Bike Light with Your Edge 830 or 1030..........7 Customizing Headlight Settings with Your Edge Device........ -
Page 6: Introduction
Introduction WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. The device is intended for outdoor use. Without proper airflow during use, the device may become hot. Handle with care. Introduction... -
Page 7: Installing The Out-Front Mount
You can use the out-front mount to install the headlight and your Edge ® device. Garmin recommends that you adjust the mount for the Edge viewing angle before you install and adjust the headlight angle. 1 Select a secure location to mount the Edge device and headlight where they do not interfere with the safe operation of your bike. - Page 8 9 Insert the screw , and hand tighten. 10 Align the notches of the quarter-turn adapter with the tabs on the bottom of the mount. 11 Press up slightly, and turn the adapter counterclockwise until it locks into place. 12 Adjust the headlight angle so it is parallel to the ground, and use the 4 mm hex key to tighten the screw. Introduction...
- Page 9 NOTE: You should check the tightness of the screw periodically. Introduction...
-
Page 10: Installing The Helmet Mount
Installing the Helmet Mount 1 Select a secure location to mount the headlight where it does not interfere with the safety and comfort of your helmet. 2 Attach the mount using both straps. 3 Lock the straps by pressing down the clasp. 4 Connect the adapter to the headlight. -
Page 11: Device Overview
The lever must be flush with the base. 9 Adjust the headlight angle, and use the 4 mm hex key to tighten the screw. NOTE: You should check the tightness of the screw periodically. Device Overview Hold for 1 sec. to turn the device on. Hold for 2 sec. -
Page 12: Pairing Your Bike Light With Your Edge 830 Or 1030
Pairing Your Bike Light with Your Edge 830 or 1030 1 Bring the Edge device within range (1 m) of the sensor. NOTE: Stay 10 m (33 ft.) away from other ANT+ ® bike lights while pairing. 2 Turn on the Edge device. 3 Select >... -
Page 13: Automatic Beam Intensity
Light Mode Settings From the Sensors menu, select Lights > Network Options > Light Mode. Auto: Automatically adjusts the light intensity and light mode based on the ambient light and time of day. High Visibility: Sets the light intensity to flash mode or the brightest setting available. Trail: Automatically adjusts the light intensity and light mode based on the ambient light and time of day. -
Page 14: Device Information
100 to 300 lm Up to 6 hr. Day flash 700 lm Up to 25 hr. The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating. Device Information... -
Page 15: Charging The Device
• Connect the charger securely to the device. You can charge the device by plugging the USB cable into a Garmin approved AC adapter with a standard wall outlet or a USB port on your computer. Charging a fully depleted battery takes about 6 hours using a computer and 4 hours using an AC power source. -
Page 16: Troubleshooting
This provides easy access to these services for Garmin devices: • Software updates • Product registration Getting More Information • Go to support.garmin.com for additional manuals, articles, and software updates. • Go to buy.garmin.com, or contact your Garmin dealer for information about optional accessories and replacement parts. Troubleshooting... -
Page 17: Other Compatible Devices
Other Compatible Devices Pairing Your Bike Light with Another Edge Device 1 Bring the Edge device within range (1 m) of the sensor. NOTE: Stay 10 m (33 ft.) away from other ANT+ bike lights while pairing. 2 Turn on the Edge device. 3 From the Sensors menu, select Add Sensor >... -
Page 18: Index
ANT+ sensors 7 battery 9, 11 charging 10 brightness 8, 11 charging 10 cleaning the device 11 customizing the device 6 device, care 10 Edge 6–8, 12 Garmin Express, updating software 11 GPS, signal 7 installing 2, 5 keys 6 mounting the device 2, 5 pairing 7, 12 remote control 12 remote control, pairing 12 resetting, device 11... - Page 19 July 2021 GUID-FD3E6E17-4A64-4236-8D3B-510A13E097E6 v3...
- Page 20 SPEED SENSOR 2 AND CADENCE SENSOR 2 Owner’s Manual...
- Page 21 © 2019 Garmin Ltd. or its subsidiaries All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Garmin. Garmin reserves the right to change or improve its products and to make changes in the content of this manual without obligation to notify any person or organization of such changes or improvements. Go to www.garmin.com...
- Page 22 Table of Contents Introduction........1 Installing the Speed Sensor....1 Installing the Cadence Sensor....2 Pairing the Sensors with Your Device..2 Garmin Connect™........3 Pairing the Speed Sensor With Your Smartphone......... 3 Device Information......4 User Replaceable Batteries....4 Replacing the Speed Sensor Battery..........
-
Page 24: Introduction
Always consult your physician before you begin or modify any exercise program. Installing the Speed Sensor NOTE: If you do not have this sensor, you can skip this task. TIP: Garmin ® recommends you secure your bike on a stand while installing the sensor. -
Page 25: Installing The Cadence Sensor
• If available, pair the sensor using ANT+ technology. NOTE: The sensor can pair with up to two Bluetooth devices and any number of ANT+ devices. After you pair the first time, your Garmin compatible device automatically recognizes the wireless sensor each time it is activated. -
Page 26: Garmin Connect
You can create your free Garmin Connect account when you pair your device with your phone using the Garmin Connect app. Store your activities: After you complete a ride with your device, you can sync with the Garmin Connect app to upload that activity and keep it as long as you want. -
Page 27: Device Information
Device Information User Replaceable Batteries WARNING See the Important Safety and Product Information guide in the product box for product warnings and other important information. Replacing the Speed Sensor Battery The device uses one CR2032 battery. The LED flashes red to indicate a low battery level after two revolutions. 1 Locate the circular battery cover on the front of the sensor. -
Page 28: Replacing The Cadence Sensor Battery
Replacing the Cadence Sensor Battery The device uses one CR2032 battery. The LED flashes red to indicate a low battery level after two revolutions. 1 Locate the circular battery cover on the back of the sensor. 2 Twist the cover counter-clockwise until the marker points to unlocked and the cover is loose enough to remove. -
Page 29: Speed Sensor 2 And Cadence Sensor 2 Specifications
From -20º to 60ºC (from -4º to 140ºF) Wireless frequency/protocol 2.4 GHz @ 4 dBm nominal Water rating IEC 60529 IPX7 The device withstands incidental exposure to water of up to 1 m for up to 30 min. For more information, go to www.garmin.com/waterrating. Device Information... -
Page 30: Troubleshooting
Bluetooth device. • Remove the sensor from your Garmin device to retry the pairing process. • Remove the speed sensor from the Garmin Connect app and the Bluetooth settings on your smartphone to retry the pairing process. Limited Warranty The Garmin standard limited warranty applies to this accessory. - Page 31 February 2023 GUID-3B99F80D-E0E8-488B-8B77-3D1DF0DB9E20 v4...
