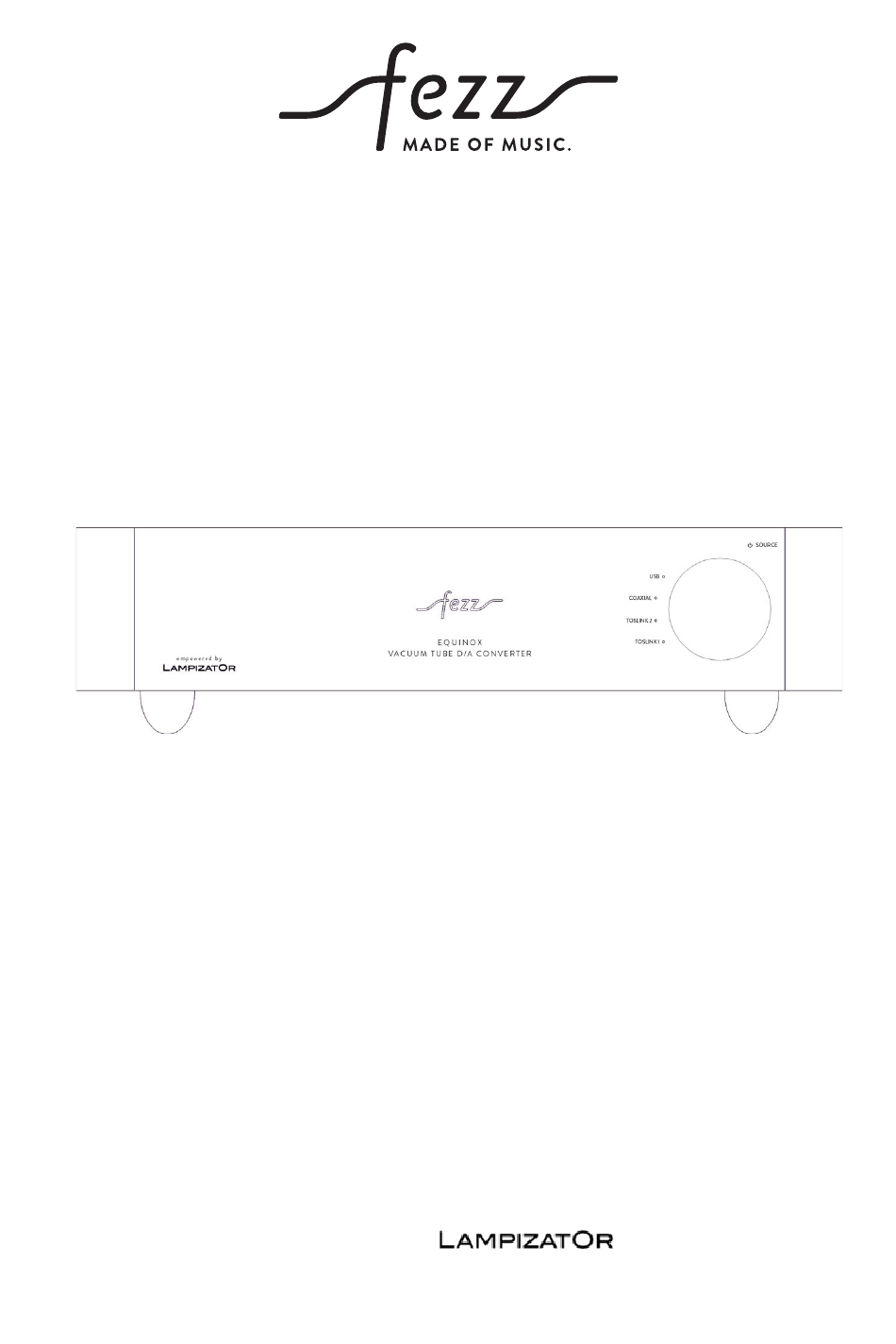

- Page 1 U SE R`S MA N UAL EQU INOX VAC UU M T U BE D/A CO N V E R T E R EM POWERED BY...
- Page 2 Getting started – 5 TROUBLE-SHOOTING GUIDE – 5 TECHNIC AL DATA Type: Vacuum tube D/A converter Model: Equinox EVO D/A converter empowered by Lampizator Tube type: ECC82/12AU7 Inputs: USB type B, 2x S/PDIF, Coaxial Outputs: 2x RCA Opamp: Burr Brown PCM 1794...
- Page 3 Equinox is the world’s only Lampizator licensed vacuum tube D/A converter designed by Łukasz Fikus. It is also the cheapest on a market D/A converter with the Lampizator logo. The unit is based on PCM1794 chipsets and 12au7 vacuum tube. Fezz/ Toroidy engineers designed a dedicated, highest quality Supreme class toroidal power transformer for Equinox’s power...
- Page 4 INTERCONNEC TIONS IEC power socket Main fuse Power ON/OFF switch Analog RCA output Voltage selector Ground loop switch USB input Coaxial input S/PDIF inputs The figures above shows the rear panel view of the Fezz Equinox DAC. To avoid electrostatic shock to the components of the device, please touch a grounded conductive surface before making any connections.
- Page 5 GE T TING S TAR TED Make sure all cables are connected as described above. Set the amplifier volume knob to minimum. Power on (fig. 3) the Equinox DAC. Select the signal source using the selector located on the front panel of the device. Make sure the digital source is on and gradually increase the volume with the volume knob at your amplifier.
