Lampizator BEST300B DAC User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BEST300B DAC
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEST300B DAC and is the answer not in the manual?

Questions and answers

Related Manuals for Lampizator BEST300B DAC

Summary of Contents for Lampizator BEST300B DAC

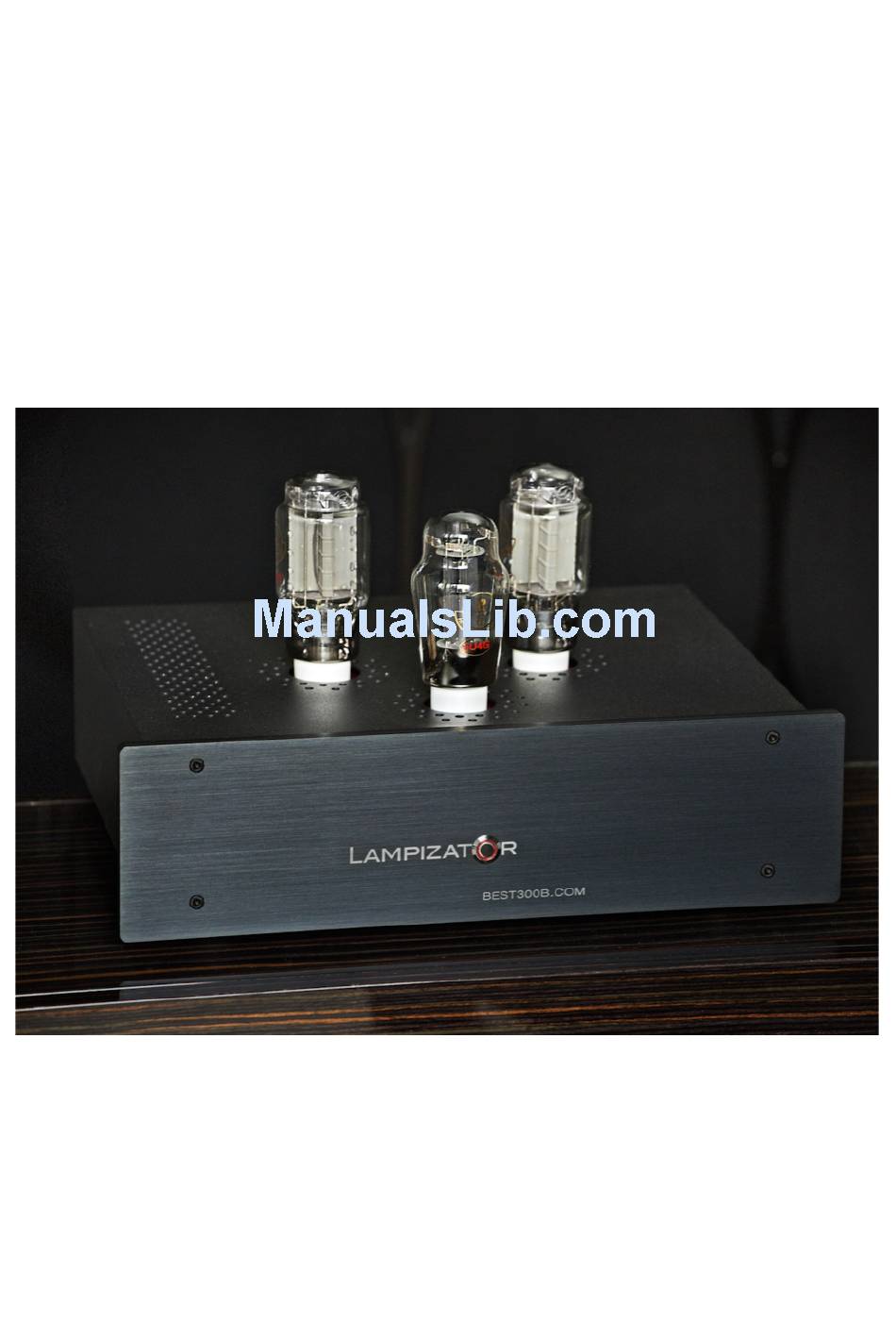

  • Page 1 BEST300B DAC User Manual...

  • Page 2: Table Of Contents

    LampizatOr- BEST300B DAC Manual Contents: A quick guide to a smooth start ............... Introduction ......................... Data formats ........................Audio volume level ......................The heat issue ........................Optimal placement ......................Power on-off cycle ......................Cabling and cable handling ....................Lampizators produces all types of cables for audio systems - you can order them from us with confidence of tremendous value for money.

  • Page 3: A Quick Guide To A Smooth Start

    LampizatOr- BEST300B DAC Manual BEST300B DAC Specifications PCM Conversion R2R discrete resistor ladder , up to 192 kHz via S/PDIF, 384 kHz via USB DSD Conversion FPGA process with analog filters and digital filters, 64x/128x/256x self selecting Output Voltage Signal...

  • Page 4: Introduction

    LampizatOr- BEST300B DAC Manual Introduction Thank you for choosing the BEST300B (Lampizator) DAC. We created it with huge research effort to deliver not only world class musical performance, rivalling the most expensive DACS money can buy, but also to offer very long life of the product. Simply speaking –...

  • Page 5: Audio Volume Level

    - chip volume systems and preamps with opamps belong in home theatre (cheap one) and DEFINITELY not in high end. LampizatOr DAC should not be used with opamp based preamp, no matter how good. Because the op-amp feedback loops will remove the whole joy of music as delivered by the tubed DHT DAC.

  • Page 6: The Heat Issue

    Normally people switch off the dac only for the night. The lampizator DAC with tube rectifier has a slow start feature which brings the high voltage supply gradually up, at the rate of two- to five volts per second. The PSU reaches 250 V DC after 90 seconds.

  • Page 7: Cabling And Cable Handling

    LampizatOr- BEST300B DAC Manual Additionally all our DACs have special heater circuits that slow down the inrush current by the factor of 10 and protect the heaters (cathodes) from developing spots and blemishes that cause metal erosion and eventually death (of the tube). Our circuit goes way beyond the tube datasheet recommended protection.

  • Page 8: Rectifier Rolling

    LampizatOr- BEST300B DAC Manual PLEASE VISIT OUR AFFILIATED SHOP FOR BEST TUBES: WWW.BEST300B.COM Rectifier Rolling Rectifiers are generally less rolled but many customers report that huge leaps in synergy can be achieved when, after choosing the optimal music tubes, we also choose optimal rectifier.

  • Page 9: Aging Problems

    LampizatOr- BEST300B DAC Manual To change music tubes you must switch off the amp. DAC can continue to work. The rectifier can be changed safely DURING LISTENING without even turning down the volume. Aging problems As already explained above, the DAC should age very very slowly.

  • Page 10: Cooperation With The Preamp

    Usually Toslink ports are installed in cheap low end gear and the power supply to Toslink is completely neglected. Not in LampizatOr DAC. If you have Toslink in your DAC you can be sure it will sound good and not degrade the sound. Of course providing that the transmitter part of the link is at least semi decent.

  • Page 11: Usb Playback

    LampizatOr- BEST300B DAC Manual USB playback USB data requires installation of additional converter module to convert the “packet” data into a steady i2S stream. Our asynchronous converter has internal RAM and two own clocks and own power supply and own power transformer secondary winding.

  • Page 12: Mac Os Operation Of Usb Output

    After plugging the DAC by the USB cable and turning it on, within 3 seconds the device should show up on the MAC. Note: the device will NOT be described as Lampizator DAC but as Amanero Combo module. To verify what is going on, please go to the “apple sign” in top left corner of the screen and choose PREFERENCES and then the loudspeaker icon - SOUND.
  • Page 13 LampizatOr- BEST300B DAC Manual Above: on that list the Amanero should appear under INTERNAL SPEAKERS. Next thing to check is MIDI SETTINGS of the MAC computer. We go to the top right corner of the screen and press SPOTLIGHT (Loupe): We type in the search line MIDI SETUP and ->...
  • Page 14 LampizatOr- BEST300B DAC Manual Audirvana Screenshots of working MAC OS configuration: ! 1 4 of !
  • Page 15 LampizatOr- BEST300B DAC Manual
 ! 1 5 of !

  • Page 16: Jriver Dsd Setting Screenshots

    LampizatOr- BEST300B DAC Manual JRiver DSD setting screenshots
 ! 1 6 of !
  • Page 17 LampizatOr- BEST300B DAC Manual ! 1 7 of !
  • Page 18 LampizatOr- BEST300B DAC Manual ! 1 8 of !
  • Page 19 LampizatOr- BEST300B DAC Manual ! 1 9 of !
  • Page 20 LampizatOr- BEST300B DAC Manual
 ! 2 0 of !

  • Page 21: Some Q & A

    LampizatOr- BEST300B DAC Manual Block Diagram - DAC without Remote Control USB Receiver DSD FILTER ! "engine"! Tube Output stage PCM RECEIVER ! PCM DAC DATA INPUT Out to an amp Bi-Phase signals:! PCM coding! S/PDIF! AES/EBU! TOSLINK! SOME Q & A 1.
  • Page 22 So here it is - our Lampizator house branded copper cap which matches the 4 known copper brands in quality of sound.

  • Page 23: I Plugged Everything But I Get No Sound

    LampizatOr- BEST300B DAC Manual I PLUGGED EVERYTHING BUT I GET NO SOUND Quick check list: Is the voltage at the back switch selected to your country? Is AC power switch at the back thrown to ON and red lamp illuminated? Is ring on the front illuminated ? Are tubes warm to touch after min.
  • Page 24 LampizatOr- BEST300B DAC Manual ! 2 4 of !
