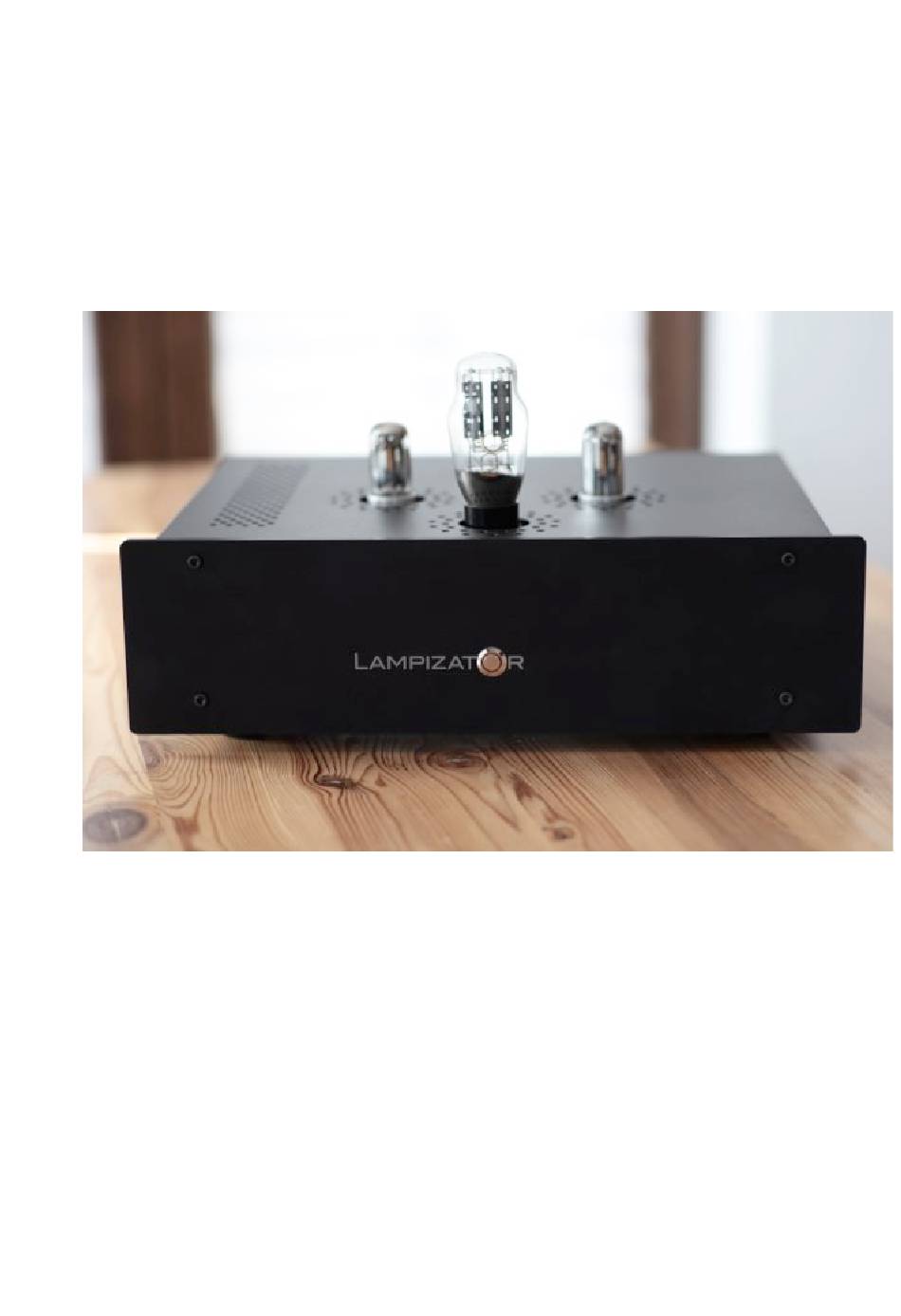

  • Page 1 The Atlantic 2 TRP LampizatOr DAC – User Manual Tube Rollers Paradise...
  • Page 2 LampizatOr- ATLANTIC2 TRP DAC Manual WARNING: as every DAC comes with a 7 days testing period (please to confirm it - ask your dealer first), during this time it is not allowed to open the DAC. The screws are protected with a seal. You have to decide, if you like the sound and you want to keep it.

  • Page 3: Table Of Contents

    LampizatOr- ATLANTIC2 TRP DAC Manual Contents: The description of REMOTE CONTROL ................A quick guide to a smooth start ..................Introduction ......................... Data formats ........................Audio volume level ......................The heat issue ........................Optimal placement ......................Power on-off cycle ......................

  • Page 4: The Description Of Remote Control

    LampizatOr- ATLANTIC2 TRP DAC Manual The description of REMOTE CONTROL VOL + functions for “Kallas” systems ON powers up/down the whole DAC but the Remote Control processing circuit remains powered even after switch off . If you switch off by the rear power button - it also powers down the remote VOL - circuit therefore it will be impossible to switch the DAC on via remote.

  • Page 5: A Quick Guide To A Smooth Start

    LampizatOr- ATLANTIC2 TRP DAC Manual A quick guide to a smooth start THE RING BUTTON In all DACs up to serial #500 the ring button used to be just the mains power switch. After that we started using the ring for other purposes, namely - for whatever we think will be most useful to the listener (in non-volume DACs).

  • Page 6: Introduction

    LampizatOr- ATLANTIC2 TRP DAC Manual Introduction Thank you for choosing Lampizator DAC. We created it with huge research effort to deliver not only world class musical performance, rivalling the most expensive DACS money can buy, but also to offer very long life of the product. Simply speaking – if you adhere to some basic precautions listed below –...

  • Page 7: Audio Volume Level

    - chip volume systems and preamps with opamps belong in home theatre (cheap one) and DEFINITELY not in high end. LampizatOr DAC should not be used with opamp based preamp, no matter how good. Because the op-amp feedback loops will remove the whole joy of music as delivered by the tubed DAC.

  • Page 8: The Heat Issue

    DAC always on, than to switch it on and off more than necessary. The lampizator DAC with tube rectifier (Atlantic PLUS) has a slow start feature which brings the high voltage supply gradually up, at the rate of two- to five volts per second.

  • Page 9: Cabling And Cable Handling

    LampizatOr- ATLANTIC2 TRP DAC Manual Additionally all our DACs have special heater circuits that slow down the inrush current by the factor of 10 and protect the heaters (cathodes) from developing spots and blemishes that cause metal erosion and eventually death (of the tube). Our circuit goes way beyond the tube datasheet recommended protection.

  • Page 10: Tube Rolling And Replacement

    LampizatOr- ATLANTIC2 TRP DAC Manual Tube rolling and replacement W took an expensive and painful decision to sell the DAC with the best tubes we can find in consistent sustainable supply. Therefore we feel you should not be tempted to change them for any reason.
  • Page 11 LampizatOr- ATLANTIC2 TRP DAC Manual For rolling we must observe some basic and simple principles
 1. The tube must be OCTAL BASE, and novals like EL84 or Loctals can be used with base adapter 2. The heater of this DAC provides DC heating in 6,3V DC supplied to pins 2 and 7.
  • Page 12 LampizatOr- ATLANTIC2 TRP DAC Manual Known tube types: EL34, KT66, KT88, KT90, KT120, KT77, KT150, KT170, 6L6, 6V6, 6550, 6CA7, 5881 There are countless name and data variations, dont forget this tube has been manufactured for 90 years already in 8 countries.

  • Page 13: Rectifier Rolling

    LampizatOr- ATLANTIC2 TRP DAC Manual and low heaters. High heaters are 2A3, 300B, 6A3 PX-25 and low heaters are 101D, 45, 245, 345, PX-4, 242. ATLANTIC DAC in standard form uses Soviet 4P1L DHT pentode in triode mode. It has an LOKTAL BASE which is unique.

  • Page 14: Aging Problems

    400% higher current capability as well as voltage max. It al depends on the DEMAND of our circuit. Some Lampizator tube stages demand only 2 mA in total, some can demand 40mA and more. Atlantic DAC demand in total for 2 channels is 20 mA for SE or 40 mA for balanced version.

  • Page 15: Fuse Change

    LampizatOr- ATLANTIC2 TRP DAC Manual Fuse Change The DAC is equipped with a non-repairable 20 mm glass fuse circuit breaker inside the IEC-AC socket at the back. There is also one spare fuse provided in the little drawer removable when changing the fuse. The fuses are 1,6A (or 2A for USA/Japan/Taiwan) they are slow blow, and overrated by the factor of 3.

  • Page 16: Volume Control

    LampizatOr- ATLANTIC2 TRP DAC Manual Volume control The volume control is an extremely nice module, that changes the way we use the DAC. The module consists of 5 elements: 1. Power supply with the DAC power management relay, allowing to switchON/OFF the whole DAC via the remote while keeping the volume module powered.

  • Page 17: Cooperation With The Preamp

    LampizatOr- ATLANTIC2 TRP DAC Manual COOPERATION WITH THE PREAMP The DAC with volume control should sound audibly cleaner and more direct without any preamp between the DAC and the amp. The preamp, however good, will veil a lot of the DAC’s natural clarity, speed and directness. If you feel you need the preamp nevertheless, use DAC at the full volume or order your DAC without volume module.

  • Page 18: The Toslink Connection

    Usually Toslink ports are installed in cheap low end gear and the power supply to Toslink is completely neglected. Not in LampizatOr DAC. If you have Toslink in your DAC you can be sure it will sound good and not degrade the sound. Of course providing that the transmitter part of the link is at least semi decent.

  • Page 19: Mac Os Operation Of Usb Output

    After plugging the DAC by the USB cable and turning it on, within 3 seconds the device should show up on the MAC. Note: the device will NOT be described as Lampizator DAC but as JL USB or LAmpizator USB module.
  • Page 20 LampizatOr- ATLANTIC2 TRP DAC Manual Above: on that list the Amanero should appear under INTERNAL SPEAKERS. Next thing to check is MIDI SETTINGS of the MAC computer. We go to the top right corner of the screen and press SPOTLIGHT (Loupe): We type in the search line MIDI SETUP and ->...
  • Page 21 LampizatOr- ATLANTIC2 TRP DAC Manual ! 2 1 of !

  • Page 22: Listening To The Music

    LampizatOr- ATLANTIC2 TRP DAC Manual LISTENING TO THE MUSIC some practical tips Please use good shelf for the DAC. Do not place it on speakers, subs, or even on transports or amps. Again - tubes hate vibrations. If you try the special devices for placement, we feel that: granite or marble is bad (ringing).
  • Page 23 LampizatOr- ATLANTIC2 TRP DAC Manual on the hard floor greatly enhances our perception of music. It is advisable to have rug or carper between listener and speakers but not under the feet. 8. It is advisable to put something soft directly on the wall behind the speakers 9.
  • Page 24 LampizatOr- ATLANTIC2 TRP DAC Manual Audirvana Screenshots of working MAC OS configuration: ! 2 4 of !
  • Page 25 LampizatOr- ATLANTIC2 TRP DAC Manual ! 2 5 of !
  • Page 26 LampizatOr- ATLANTIC2 TRP DAC Manual ! 2 6 of !
  • Page 27 LampizatOr- ATLANTIC2 TRP DAC Manual ! 2 7 of !

  • Page 28: Block Diagrams

    LampizatOr- ATLANTIC2 TRP DAC Manual Block Diagrams Block Diagram - DAC with Remote Control USB Receiver DSD FILTER ! "engine"! Signal input selector PCM RECEIVER ! PCM DAC DATA INPUT Bi-Phase signals:! Tube Output PCM coding! stage Analog ! preamp inputs...
  • Page 29 LampizatOr- ATLANTIC2 TRP DAC Manual
 Block Diagram - DAC without Remote Control USB Receiver DSD FILTER ! "engine"! Tube Output stage PCM RECEIVER ! PCM DAC DATA INPUT Out to an amp Bi-Phase signals:! PCM coding! S/PDIF! AES/EBU! TOSLINK!

  • Page 30: Some Q & A

    So here it is - our Lampizator house branded copper cap which matches the 4 known copper brands in quality of sound.

  • Page 31: I Plugged Everything But I Get No Sound

    LampizatOr- ATLANTIC2 TRP DAC Manual I PLUGGED EVERYTHING BUT I GET NO SOUND Quick check list: Is the voltage at the back switch selected to your country? Is AC power switch at the back thrown to ON and red lamp illuminated? Is ring on the front illuminated ? Are tubes warm to touch after min.

  • Page 32: Rear Panel Layout

    LampizatOr- ATLANTIC2 TRP DAC Manual Rear panel layout ! 3 2 of !
