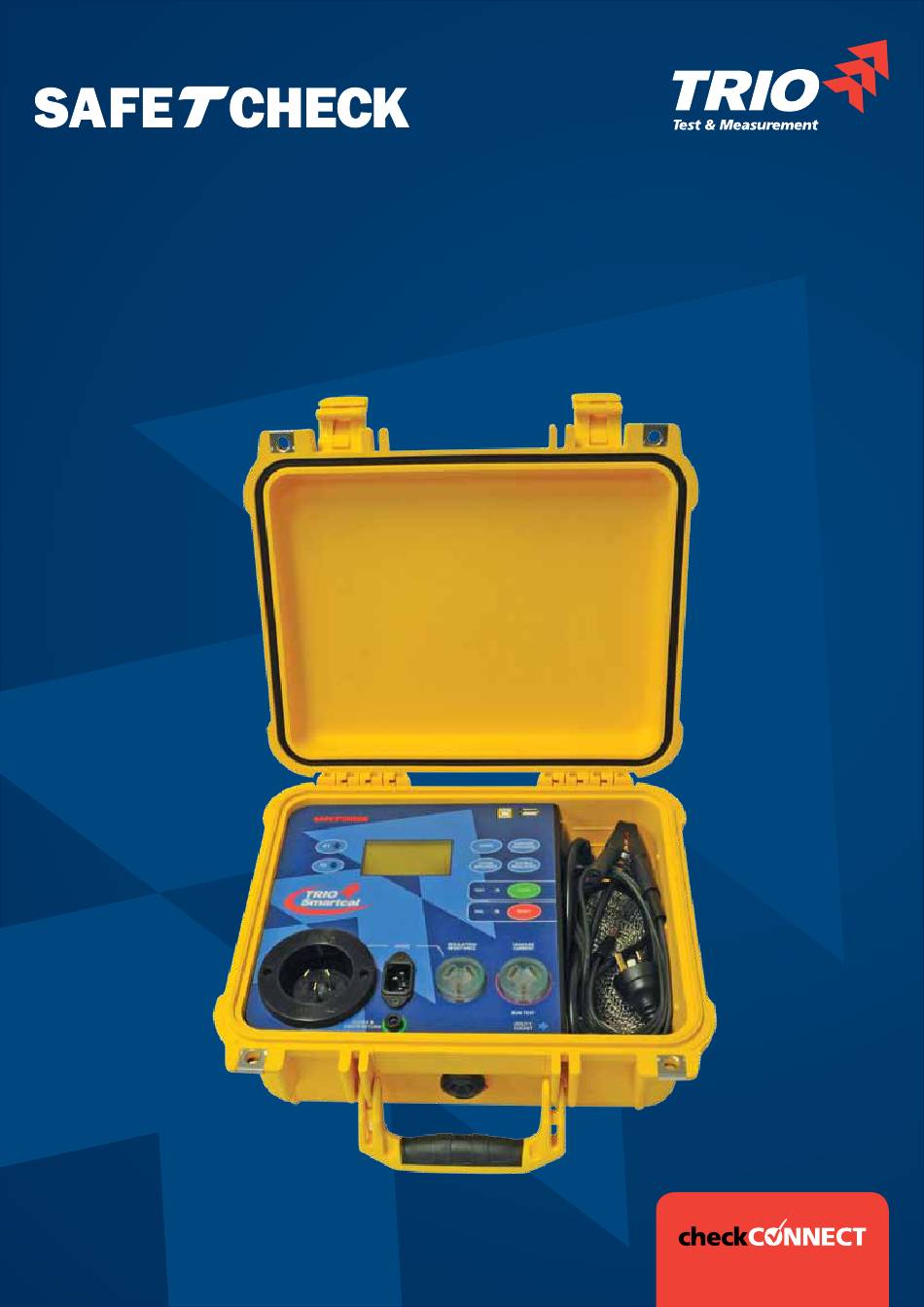

- Page 1 Pro Logger II Operating Instructions...
- Page 2 About safeTcheck Pro Logger II The safeTcheck Pro Logger II is an electrical Portable Appliance Tester (PAT), designed and manufactured in Australia. It has been designed to comply with Australian Standards AS3100, AS3760 & AS4024.1 to maximise user safety. The Pro Logger II ensures the electrical safety of appliances is compliant with the requirements of the current Australian and New Zealand Standard AS/NZS 3760 (In–service safety inspection and testing of electrical equipment).
-
Page 3: Table Of Contents
Pro Logger II and Portable Appliance Testing go to our SafeTcheck website: www.SafeTcheck.com.au or for all other general Test & Measurement Instrumentation go to our TRIO Test & Measurement website: www.triotest.com.au SafeTcheck Pro Logger II... - Page 4 OTHER APPLIANCE menu. Phone 1300 853 407 If you experience difficulties or doubts in testing certain sales@triotest.com.au appliances please contact TRIO Test & Measurement. www.triotest.com.au The Pro Logger II has been designed to comply with Australian Standards AS3100, AS3760 & AS4024.1 to maximise user safety.
-
Page 5: Frequency Of Electrical Safety Testing
Before each hire Before each hire Before each hire Note: Some organisations may alter these periods based on a documented risk assessment, undertaken in accordance with the process specified in AS/NZS 4360 (see AS/NZS 3760 for details). SafeTcheck Pro Logger II... -
Page 6: Function And Basic Technical Specification
• L eakage current clamped at 6mA for user safety. • Earth circuit continuity <= 1.0 Ohm @ 200mA* Run Test will terminate at > 6mA leakage current. • E lectrical continuity for resistance Active / Neutral 10K Ohm • The duration of 3 Phase Run Test is user variabl e nominal Note: *0.2, 10 & 25A test currents are available with • ' Figure 8' leads (no earth) Insulation resistance A-N to Cloak the High Current Earth Bond Option >= 1M Ohm SafeTcheck Pro Logger II... - Page 7 Note 1: Tolerance on all stated values is ±5% • Flush mounted mains plugs for test purposes (both IEC and Note 2: TRIO Test & Measurement reserves the right to standard 240V), protected from accidental application of change specifications at any time without notice.
-
Page 8: Available Options And Accessories
• Stainless steel cloak (350 x 600mm) • Large stainless steel cloak (350 x 900mm) • Figure 8 & Clover Leaf to IEC Mains adaptors • Scanner • Keyboard • Upgrade from 500 to 2000 stored records • Data & Asset Management Software • USB Tag Printer for connection to Management Software • Test tags (with optional company logos & barcodes) • Barcoded item stickers, tested labels and danger tags • Removable lid • Collapsible Trolley TRIO Test & Measurement Ph: 1300 852 402 Web: www.SafeTcheck.com.au SafeTcheck Pro Logger II... -
Page 9: Preparation Of The Appliance Prior To Safety Testing
Note 1: Many double insulated tools are colour coded blue. Note 2: If any doubt exists about the Class of an appliance (Class I or II), the appliance should be tested as an earthed appliance first (see also OTHER APPLIANCE menu). SafeTcheck Pro Logger II... -
Page 10: Operating The Pro Logger
Pro Logger II Pro Logger II has a fault and should be returned to a while scanning barcodes. TRIO Test & Measurement Service centre for service. SafeTcheck Pro Logger II... -
Page 11: Safety Testing Earthed Appliances
‘Off’ or minimum The measured value (if enabled), a continuous BEEP position. and a RED indicator flashing alongside "Reset". SafeTcheck Pro Logger II... - Page 12 Operating Instructions Safety testing earthed appliances SELECT EARTHED APPLIANCE TEST CLOAK & EARTh RETURN SOCKET RETURN LEAD AND CLAMP (CLASS I & II) SWITCH APPLIANCE ON AND SET THERMOSTAT OR SPEED CONTROL TO MAxIMUM SafeTcheck Pro Logger II...
-
Page 13: Safety Testing Double Insulated Appliances
STEEL CLOAK Note: During the test cycle the user may apply stress to the supply lead and plug in order to detect any intermittent faults SWITCH APPLIANCE ON AND SET APPLIANCE THERMOSTAT OR SPEED CONTROL TO MAxIMUM SafeTcheck Pro Logger II... - Page 14 The measured NoTe: may be turned off by switching to value (if enabled), a continuous BEEP and a RED Probe Mode. See the UTILITIES MENU. indicator flashing along side "Reset". SafeTcheck Pro Logger II...
-
Page 15: Safety Testing Mains Leads
This feature is available on all testers with firmware version v4.64 and above Note 1: If the extension lead has a fixed socket (as in extension reels), this must be connected to the fixed test plug on the SafeTcheck Pro Logger II... -
Page 16: Safety Testing Other Appliances (Other Appliance Menu)
7 Appliances employing a PIEZO starter such as the starter (see also Run testing) on a portable gas stove may be tested by performing a: • PIeZo Run Test 3 An earth continuity test may be conducted by selecting: • earth only test SafeTcheck Pro Logger II... - Page 17 To test these appliances use: • Three (3) Pin Class 2 Run Test WaRNING This test does not look for the presence of an earth conductor. It should only be used if the normal earthed appliance Insulation Resistance Test continually has failed. SafeTcheck Pro Logger II...
- Page 18 Operating Instructions Run testing (Leakage current tests) TRIO Test & Measurement recommends that the following Run tests are used only if the Insulation testing of an appliance fails or is unsuitable for that type of appliance. Run tests apply the mains voltage (240V) to the appliance under test, exposing the user to the risk of personal injury (eg electric Shock).
-
Page 19: Run Testing Earthed (Class 1) Appliances
See section entitled ”Data Logging” WaRNING Upon completion of a safety test and subsequent removal of test lead, please ensure all switches, speed or thermostat controls are returned to their ‘Off’ or minimum position. SafeTcheck Pro Logger II... -
Page 20: Run Testing Double Insulated (Class 2) Appliances
See section entitled ”Data Logging” WaRNING Upon completion of a safety test and subsequent removal of test lead, please ensure all switches, speed or thermostat controls are returned to their ‘Off’ or minimum position. SafeTcheck Pro Logger II... -
Page 21: Run Testing 3 Phase Appliances
F1 and F2 keys to scroll up and down the list of options. 3 Phase Run Test CONNECT TO UTILITy SOCKET CONNECT TO 3 PHASE SUPPLY EARTH RETURN LEAD 3 PHASE SUPPLY FOR THE DEVICE UNDER TEST SafeTcheck Pro Logger II... -
Page 22: Rcd Tester (Option)
2 minutes after the mains power is tripped The Pro Logger II now incorporates a single In–Line RCD during testing. lead test that ensures that the appliance is tested to comply with the standard as both an extension lead and RCD. SafeTcheck Pro Logger II... - Page 23 RCD trips, the trip time will be displayed in milliseconds together with a “Pass” or “Fail” message. The Pro Logger II will provide power to the display while the RCD is reset and mains power is returned. SafeTcheck Pro Logger II...
-
Page 24: High Current Earth Test (Option)
2 Routine Test (10a) Same test as applied to all electrical appliances during the manufacturing process. For manufacturers, the Routine Test is mandatory (conducted in accordance with AS/NZS 3100 ). The earth resistance threshold is set to 1Ω. SafeTcheck Pro Logger II... -
Page 25: Battery Power (Option)
The Battery will now be charging 3. Wait for the “Charge complete” prompt to appear 4. Press “Start” to acknowledge the charged condition 5. When fully charged the Pro Logger may be stored or it is ready for appliance testing SafeTcheck Pro Logger II... -
Page 26: Utilities Menu (F2 Key)
Fail on poor continuity – if set to 'off', will allow the operator to bypass the check for a closed mains switch (it is recommended that this is always set to 'on'). Printer enable Not yet implemented SafeTcheck Pro Logger II... - Page 27 • Probe Test surfaces adequately covered to reduce the chance of an erroneous test result. The safeTcheck Pro Logger II has this Probe Test mode, available on all testers with Firmware Version V4.46 and above. During a Probe Test the feature is disabled.
- Page 28 NoTe: TRIO Test & Measurement recommends the use of 1. the user is satisfied that the appliance’s mains switch is for most, if not all, IR tests on Double closed;...
-
Page 29: Info Display (F1 Key)
This facility is not present in some earlier models. • Records used of total records available (Data Logging memory) • Internal Date & Time SafeTcheck Pro Logger II... -
Page 30: Data Logger Operating Instructions
(e.g. FASTtag Asset Management Software) via the unit's USB port. NoTe: The onboard database must be disabled (via the Utilities Menu) if results are streamed directly to the Pro Logger II's USB port in real time. SafeTcheck Pro Logger II... - Page 31 PC the number of records used and the overall memory capacity is also displayed. If the scanner is used without a keyboard then it must have an "Enter" as a barcode terminator (see section entitled "Scanner setup"). SafeTcheck Pro Logger II...
- Page 32 The Data Logger records the following in each data field: Test header field Length (characters) company Name of Company responsible for the appliances (eg TRIO Test & Measurement) Site Specific Site for the above Company (eg Adelaide Office) Location Specific Location at the Company’s Site (eg Workshop)
- Page 33 Note 1: The above field occupies one record or row only. A new record is created and stored only if a comment is added to the test. Note 2: frequency of Test (foT) Codes may be used in this field. Please refer to the Downloader Manual for detail. SafeTcheck Pro Logger II...
- Page 34 250V Note 1: While the Pro Logger II has been tested with a 10ma Portable RcD range of Keyboards, TRIO Test & Measurement can not 30ma Portable RcD guarantee that all makes of keyboards will function with the Pro Logger II.
-
Page 35: Scanner Setup
Operating Instructions Scanner setup cipher Lab 1000 Scanner: Cypher Lab Scanner To setup the TRIO scanner, scan the following barcodes (from “Start” to “End”): Setup Setup 1: Places a "Enter" at the end of each scanned barcode (Default) Setup 2: Removes the “Enter”... - Page 36 1300 853 409 Email sales@triotest.com.au safety@triotest.com.au Visit www.triotest.com.au www.SafeTcheck.com.au TRIO Test & Measurement Pty Ltd ABN 79 119 968 491 Designed and manufactured in Australia QAM–0033 STC Pro Logger II Manual (Rev 2.1) Issued 4 April 2013 SafeTcheck Pro Logger II...
