Jabra Pro 9470 Mono Quick Start Manual

Hide thumbs Also See for Pro 9470 Mono:

Jabra Pro 9470 Mono

How do I connect my headset with my Aastra 5370, 5380,

Office 70 or Office 80?

Requirements:

Jabra Link 14201-10

Aastra Office 70 / 70 IP / 5370 IP / 80 / 80 IP / 5380 IP

To connect your headset to your phone please follow these steps:

1. Plug the RJ10 connector (green) from the split end of the Aastra

DHSG cord into the phone socket on the Jabra device base.

2. Plug the RJ45 connector (yellow) from the split end of the Aastra

DHSG cord into the AUX socket on the Jabra device base.

3. Plug the single end of the Aastra DHSG cord (blue) into the socket

marked with a headset symbol on the phone.

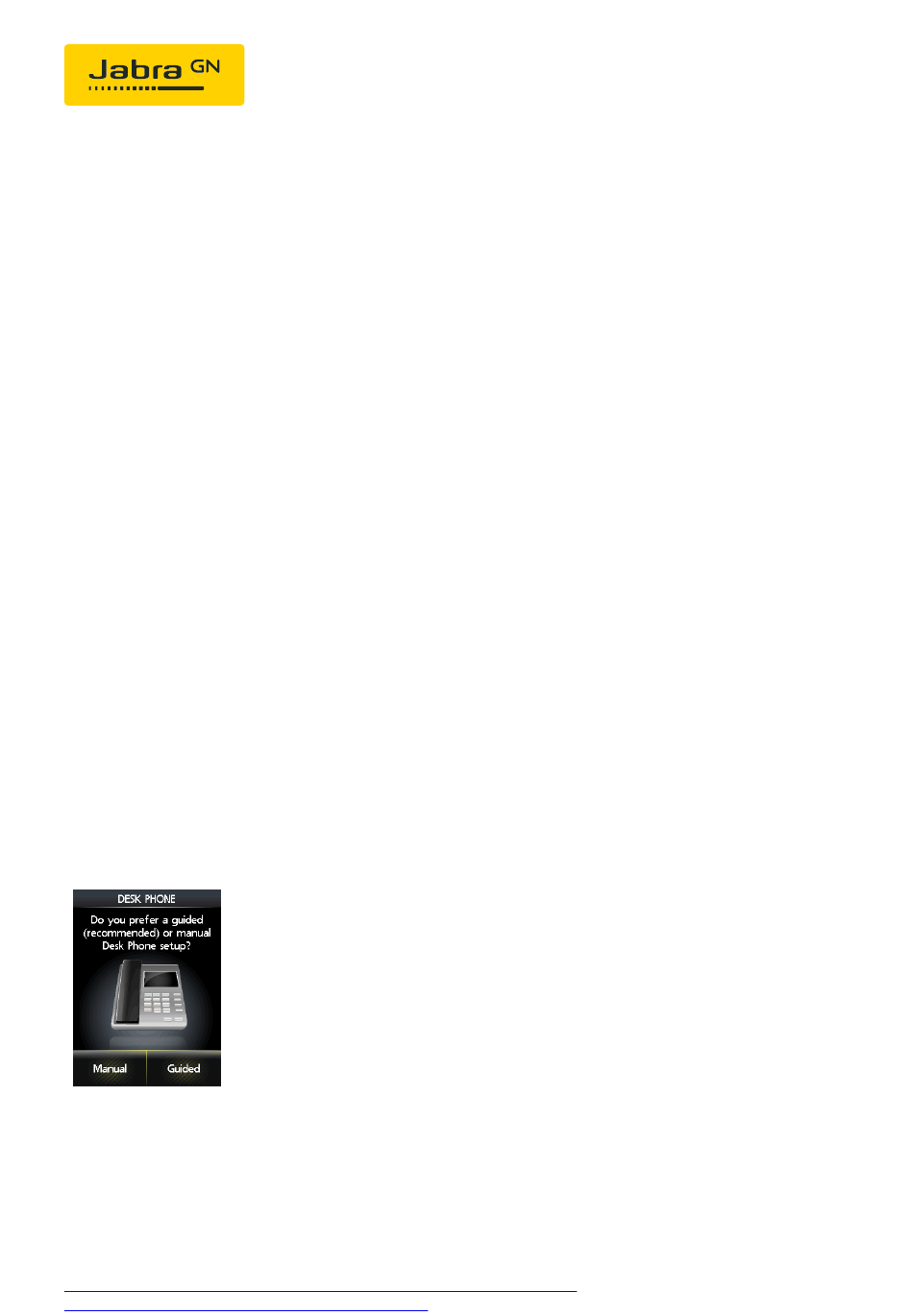

4. Follow the instructions on the Jabra device touch-screen:

a. Select Phone setting.

b. Select Connect to a desk phone.

c. Select Manual.

d. Select adapter type DHSG.

https://www.apac.jabra.com/supportpages/jabra-pro-9470/9470-26-904-

102/faq/7aed962e-d020-4d70-a883-b8a9db874a1e

25/02/2024 05:54

Page 1 of 3

Table of Contents

Do you have a question about the Pro 9470 Mono and is the answer not in the manual?

Page 1 To connect your headset to your phone please follow these steps: 1. Plug the RJ10 connector (green) from the split end of the Aastra DHSG cord into the phone socket on the Jabra device base. 2. Plug the RJ45 connector (yellow) from the split end of the Aastra DHSG cord into the AUX socket on the Jabra device base.
Page 2 5. Set the phone setup switch to position “A”. 6. We recommend setting the microphone volume to 7 out of 13. As part of the installation, you can dial into your local Jabra Setup server which will configure the audio path. Please follow the instructions shown on the display.
Page 3 25/02/2024 05:54 Menu>Settings>Audio>Headset>Headset ON https://www.apac.jabra.com/supportpages/jabra-pro-9470/9470-26-904- Page 3 of 3 102/faq/7aed962e-d020-4d70-a883-b8a9db874a1e...
